- Page 1 Manual for the machine configuration Vibratory plate 80, 90, 110 Model Document 5100018593 Issue 11.2019 Version Language...
- Page 2 Any breach of the statutory regulations, in particular the protection of copyright, will lead to civil and criminal prosecution. Wacker Neuson Produktion GmbH & Co. KG is constantly working on the improvement of its products as part of the technical further development. Therefore, we reserve the right to make changes to the illustrations and descriptions in this documentation without incurring any obligation to make changes to machines already delivered.
-
Page 3: Table Of Contents
Table of contents Preface ............................4 Introduction ..........................5 Explanation of symbols........................ 5 Wacker Neuson Contact partner ....................5 Operation of the configuration menu ..................6 Accessing the configuration menu....................6 Change the activation PIN ......................7 Setting the turn-off time (in drawbar mode) ................. 8 Setting the language........................ -
Page 4: Preface
1 Preface Preface This manual describes the possible settings and the operation of the configuration menu on the machine's display. In addition, this manual includes the PIN data of this machine that was set ex factory. This manual is intended exclusively for the machine's licensee and not for the operator. Store this manual in a place that is secured against unauthorized access. -
Page 5: Introduction
NOTICE Supplementary information. Wacker Neuson Contact partner Depending on the country, the Wacker Neuson contact partner is a Wacker Neuson service department, a Wacker Neuson affiliate, or a Wacker Neuson dealer. On the Internet at www.wackerneuson.com. The manufacturer's address can be found at the beginning of this manual. -
Page 6: Operation Of The Configuration Menu
3 Operation of the configuration menu Operation of the configuration menu NOTICE: The overload sensor cannot be set in the coupling set (= coupling mode).The value 0 is set. The machine has a system for the machine configuration, which can be used to adapt certain machine settings to the operating company's requirements. -
Page 7: Change The Activation Pin

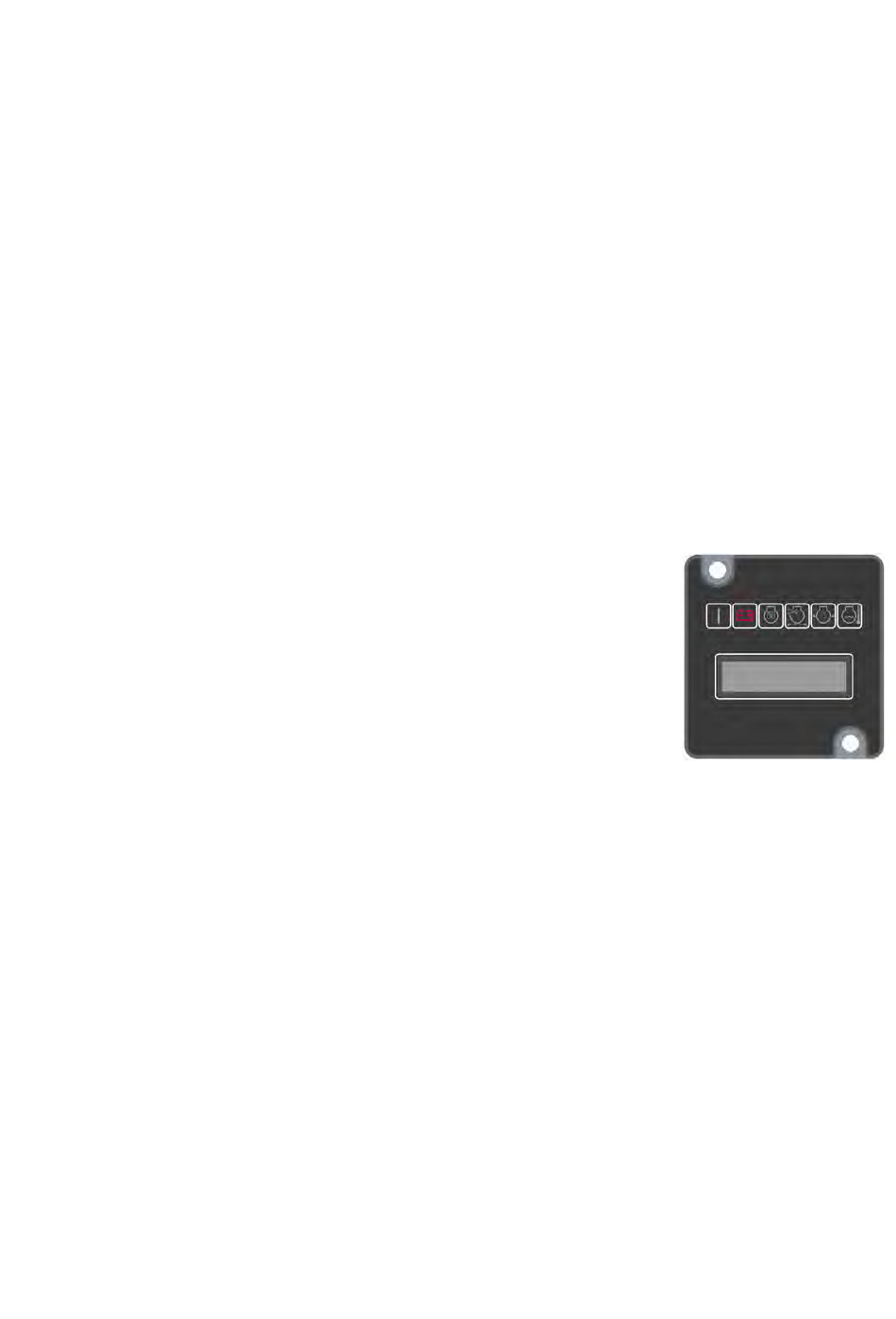

3 Operation of the configuration menu 3. The following text will appear on the display: Hold down the button and wait... Setup Menu 4. The following text will appear on the display after about 2 seconds: Setup PIN Enter PIN 5. -
Page 8: Setting The Turn-Off Time (In Drawbar Mode)
3 Operation of the configuration menu 2. The activation PIN can be changed. Enter the value of the first digit with the setting button. Change to the next digit with the ON/OFF switch. Enter the entire PIN. Value Activation PIN 0000... -
Page 9: Setting The Overload Sensor
3 Operation of the configuration menu 2. The language can be adjusted: Enter the value of the first digit with the setting button. Value Language DE German (factory default setting EU machines) EN English (factory default setting US machines) FR French ES Spanish EN (UK) English UK... -
Page 10: Software Status 10
Compamatic Deactivated Activated Hydraulic parameters The following menu items have a factory default setting. These settings should only be changed by the service department of the Wacker Neuson contact partner. Center pole machines Hydraulic parameters. L: 100%, H: 100%* ... -
Page 11: Changing The Setup Pin
3 Operation of the configuration menu Remote controlled machines Hydraulic parameters T: All values are at 0. Hydraulic parameter Z: All values are at 0. Changing the setup PIN The setup PIN locks access to the configuration menu. The setup PIN assigned ex factory can be changed. -
Page 12: Troubleshooting
4 Troubleshooting Troubleshooting DANGER Danger to life from unauthorized troubleshooting. If faults occur with this machine that are not described in this manual, contact the manufacturer. Do not eliminate the faults independently. Fault table Fault Possible causes Remedial measure The configuration menu cannot be Machine was not activated. -
Page 13: Pin Data
If the PIN was forgotten, the machine can also be unlocked with the setup PIN. If the PIN and the setup PIN were forgotten, however, the machine can no longer be unlocked. In this case, please contact the service department of the Wacker Neuson contact partner. - Page 14 5 PIN data 100_0202_ot_0006.fm...
