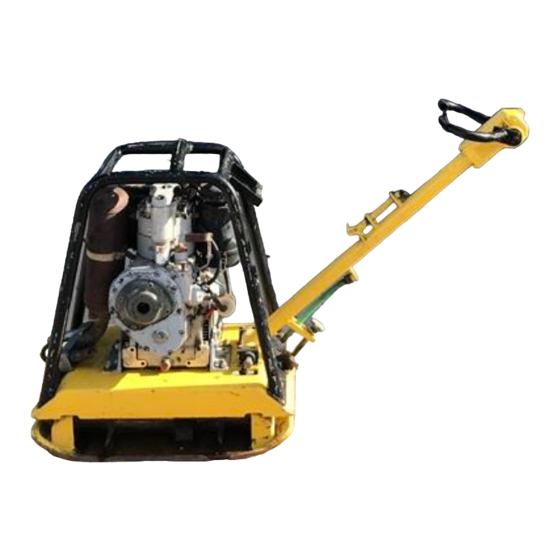

- Page 1 VIBRATORY PLATE DPU 2950 DPU 2960 DPU 2970 0200165en - 10.2002 0007881 100 0007883 100 0007880 100 Operator´s Manual...
- Page 3 CONTENTS Type Item no. DPU 2950 0007881 ... DPU 2960 0007883 ... DPU 2970 0007880 ... H00400GB...
- Page 5 FOREWORD Foreword For your own safety and protection from bodily injuries, carefully read, understand and follow the safety instruc- tions in this manual. Please operate and maintain your Wacker machine in accordance with the instructions in this manual. Your Wacker machine will reward your attention by giving trouble-free operation and a high degree of availability. Defective machine parts are to be replaced as soon as possible.
-
Page 6: Table Of Contents
TABLE OF CONTENTS FOREWORD SAFETY INSTRUCTIONS General instructions Operation Safety checks Maintenance Transport Maintenance checks TECHNICAL DATA DESCRIPTION Field of application Dimensions Max. admissible inclination MAINTENANCE Maintenance schedule Service instructions Hydraulic control Mounting instruction MOTOR Starting operating Instructions regarding the motor Notes on automatic decompression system Engine start Additional suggestions for starting at very low temperatures... -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR THE USE OF VIBRATORY PLATES WITH COMBUSTION ENGINES General instructions Vibratory plates may only be operated by persons who * are at least 18 years of age * are physically and mentally fit for this job * have been instructed in guiding vibratory plates and proved their ability for the job to the employer * may be expected to carry out the job they are charged with carefully. -
Page 8: Safety Checks
SAFETY INSTRUCTIONS Make sure the soil or subsoil to be compacted has a high enough load carrying capacity. Use appropriate protective clothing while working or while carrying out maintenance work. When traveling backwards the operator has to guide the vibration plate laterally by its guide handle so that he will not be squeezed between the handle and a possible obstacle. -
Page 9: Technical Data
TECHNICAL DATA DPU 2950 DPU 2960 DPU 2970 Item no. 0007881 ... 0007883 ... 0007880 ... Lowest working height Size of base plate (width x length) 500 x 700 600 x 700 700 x 700 Operating weight Power transmission From drive engine via... -
Page 10: Description
They are also suited to compact blacktop surfacings and to vibrate interlocking paving stones. Due to its optimum ratio of centrifugal force to contact area the DPU 2950 is the machine of this series which can be most universally used. -
Page 11: Maintenance
MAINTENANCE Maintenance schedule Check all external screw connections for tight fit approx. 8 hours after first operation. Parts Maintenance jobs Maintenance interv. Air filter Oil bath air filter - Check oil pan for oil level and dirt. daily Clean or top up if necessary. Dry-type air filter - see visual maintenance display, clean or replace filter cartridge if necessary. -
Page 12: Service Instructions
MAINTENANCE Service instructions 1. Adjusting the V-belt tension (First and most important adjustment after the first 5 to 20 hours of operation). Remove belt guard. Remove nuts situated on the motor V-belt pulley, remove V-belt pulley half. Remove necessary number of spaces (the removal of one spacer is usually sufficient). Install the removed spacers on the outside of the V-belt pulley. -
Page 13: Motor
MOTOR Starting operating 1. Motor Check oil level, top up with oil if necessary, use HD-brand oil SAE 10 W 40. Do not change from one brand to the other. Top up with oil to upper mark of dip stick (1,2 l). 2. - Page 14 T00136GB...
-
Page 15: Notes On Automatic Decompression System
MOTOR Notes on automatic decompression system The engine has been provided with an automatic decompression system to ease starting. ATTENTION! Avoid damage to the system by turning decompression lever only in direction of arrow (see fig. 1). Engine start 1) Open to full throttle. 2) Decompression lever in vertical position (as in fig. -
Page 16: Additional Suggestions For Starting At Very Low Temperatures
MOTOR 8) Turn crank slowly at first until catch grabs, then turn always faster. 9) When automatic decompression lever returns to its vertical position, highest crank turning speed must have been reached. Engine fires up and reaches maximum rpm’s. Starter knob returns to initial position automatically. ATTENTION! If cranking procedure is too slow, en- gine may start up in wrong direction. -
Page 17: Ec - Conformity-Certificate
1. Category: Vibratory plate 2. Type: DPU 2950 / DPU 2960 / DPU 2970 3. Equipment item number: 0007881 ... / 0007883 ... / 0007880 ... 4. absolute installed power: 4,1 kW...
