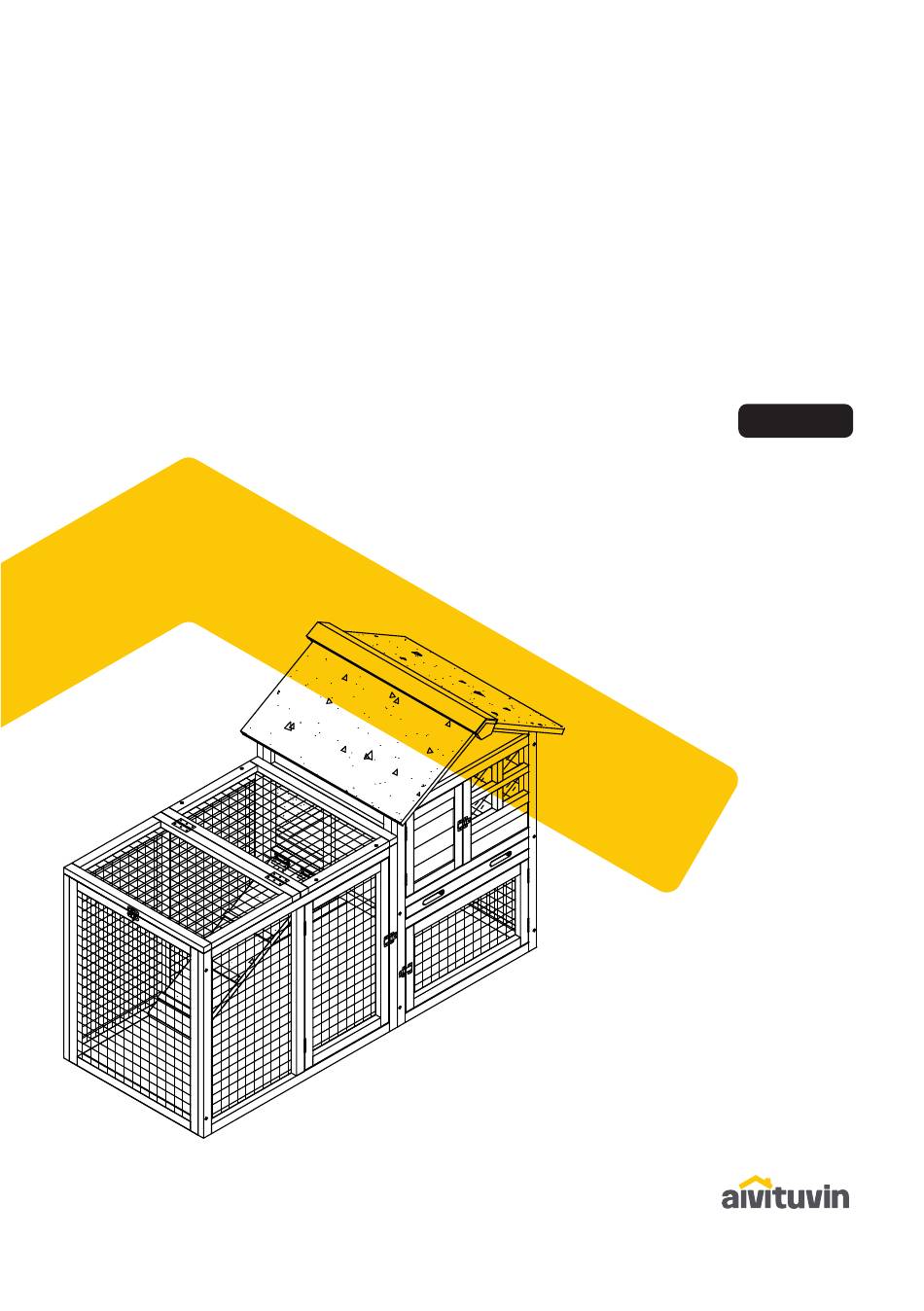

- Page 1 INSTRUCTION MANUAL XZ7002 www.aivituvin.com...
- Page 3 NOTICE Please retain these instructions for future reference. Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled. Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
-
Page 4: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 45MIN. ASSEMBLY HARDWARE M3.5x40mm BOLT M3.5x50mm SCREW 4PCS+1spare 18PCS+1spare M3.5x35mm SCREW M3.5x25mm SCREW 4PCS+1spare 8PCS+1spare M3.0x16mm SCREW Latch 8PCS+1spare M3.0x16mm SCREW 2PCS 4PCS+1spare... - Page 5 PARTS Right panel Front panel Back panel Divider Front panel of pen Tray Roof of pen Side panel of pen Back panel of pen...
- Page 6 PARTS Roof cap Ramp Roofs of hutch 2PCS...
-
Page 7: Product Assembly
PRODUCT ASSEMBLY ① Attach Part A, C & D by 5xP2 screws. ② Pls notice the Divider Parts D attach on the left side. Attach the back panel Part B by 5xP2 screws. - Page 8 PRODUCT ASSEMBLY ① Screw the ramp Part L to the left divider by 4xP5 screws as show on the pictures. ② Slide in the tray Part E. ① Attach the pen ! ② Attach Part H, F & G by 4xP2 screws.
- Page 9 PRODUCT ASSEMBLY Attach the pen to the hutch from front by 2xP1 screws. Attach the pen to the hutch from back by 2xP1screws.
- Page 10 PRODUCT ASSEMBLY ① Attach 2pcs of roof of hutch Part J to the hutch by 8xP3 screws. ② Attach roof of pen Part I to the pen by 4xP2 screws. ① Screw the roof cap Part K by 4xP4 screws. ② Screw the latch P6 by 4xP5 screws to connect top and side panel of pen.
- Page 11 NOTICE ① Pls ignore the following for only one coop owner ! ② The below steps are the aeesmbly for the 2nd coop if you buying 2 coops ! ③ From step 9 to step 20 are assemble steps for 2nd coop ! ④ The assemble direction of the 2nd hutch Part D divider are difference with 1 st hutch, pls notice step 1 &...
- Page 12 PRODUCT ASSEMBLY ① Attach Part A, C, & D by 5xP2 screws. ② Pls notice the Divider Parts D attach on the right side. (The direction of Part D is difference from 1st hutch) Attach Part B by 5xP2 screws.
- Page 13 PRODUCT ASSEMBLY ① Screw the ramp Part L to the right divider by 4xP5 screws as show on the pictures. ② Slide in the tray Part E. ① Attach the pen ! ② Attach Part H, F & G by 4xP2 screws.
- Page 14 PRODUCT ASSEMBLY Attach the pen to the hutch from front by 2xP1 screws. Attach the pen to the hutch from back by 2xP1 screws.
- Page 15 PRODUCT ASSEMBLY ① Attach 2pcs of roof of hutch Part J to the hutch by 8xP3 screws. ② Attach roof of pen Part I to the pen by 4xP2 screws. Screw the roof cap Part K by 4xP4 screws.
- Page 16 PRODUCT ASSEMBLY ① For this step, the previous latch need to be took out and rescrew to the right position show as picture. ② Take out side panel of pen Part H from 2nd hutch. Change to Attach the second hutch to first hutch with 2xP7 from front by 4xP8 screws.
- Page 17 PRODUCT ASSEMBLY Attach the second hutch to first hutch with 2xP7 from back by 4xP8 screws.
-
Page 18: Help Center
Once the items are received, opened, and deemed to be faulty or other problems. Pls contact us at service@aivituvin.com for the solution. We will feedback to you within 24 hours. If you are happy with the shopping ,welcome to share photos and thoughts with others . - Page 20 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this product.
