Maintenance
Disassembly
Removing the Valve Disk

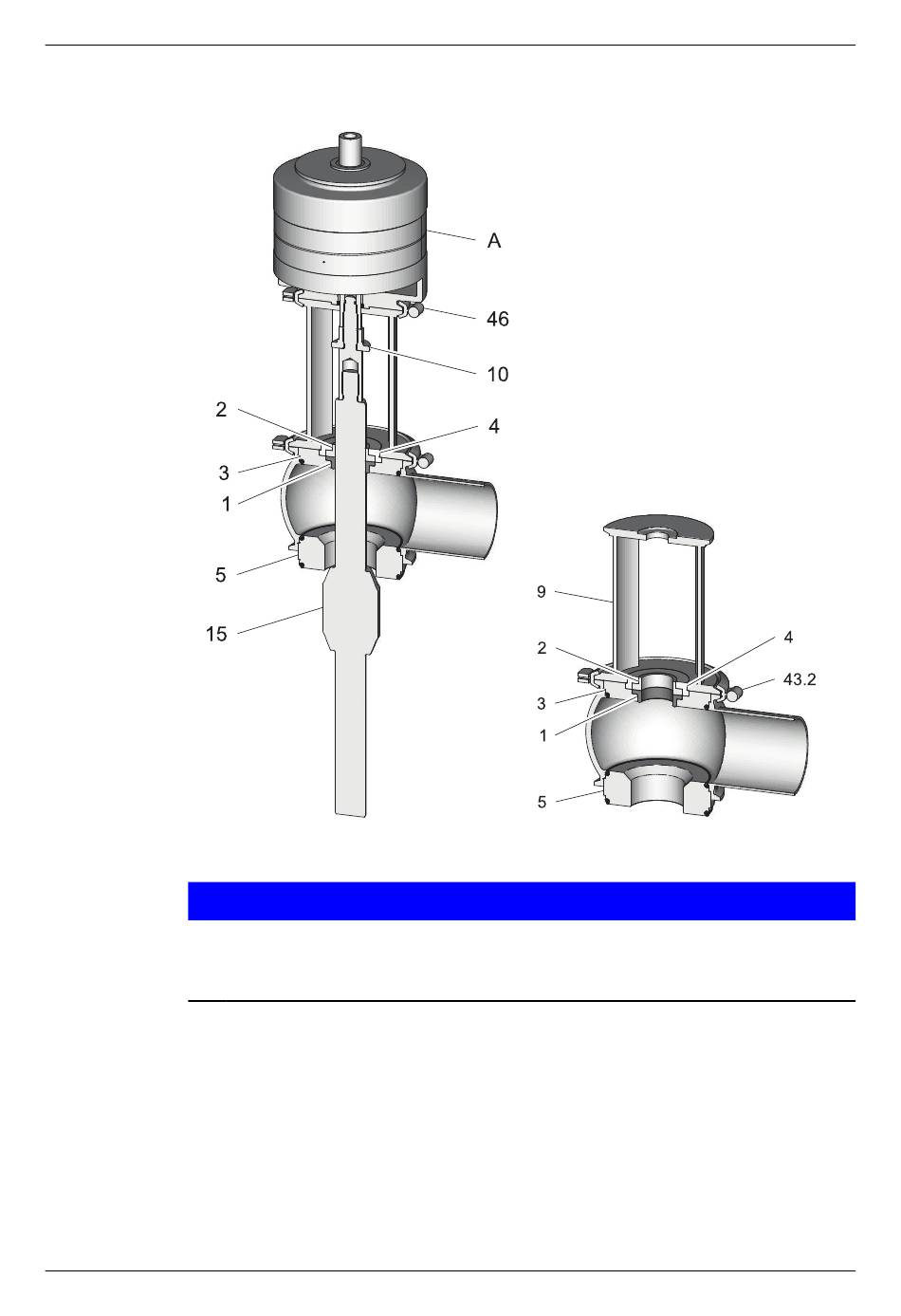

Fig.29
Carry out the following steps:
1.
2.
3.
4.
52
Notice
Sensitive valve parts
Damage to valve parts.
► Protect the valve parts against impact stress.
Remove the clamp connection (46) between actuator (A) and motor stool (9).
Unscrew the valve disk (15) from the actuator (A) by hand.
Unscrew the spacer nut (10) from the valve disk using 2 open end spanners.
Pull the valve disk out of the housing.
Fig.30
