Bosch AEC-AMC2-UL1 Installation Manual

Amc2 enclosure - 1 din rail.
Hide thumbs

Advertisement

AMC2 enclosure - 1 DIN rail
AEC-AMC2-UL1
en
Installation Manual

Advertisement

   Related Manuals for Bosch AEC-AMC2-UL1

   Summary of Contents for Bosch AEC-AMC2-UL1

  • Page 1

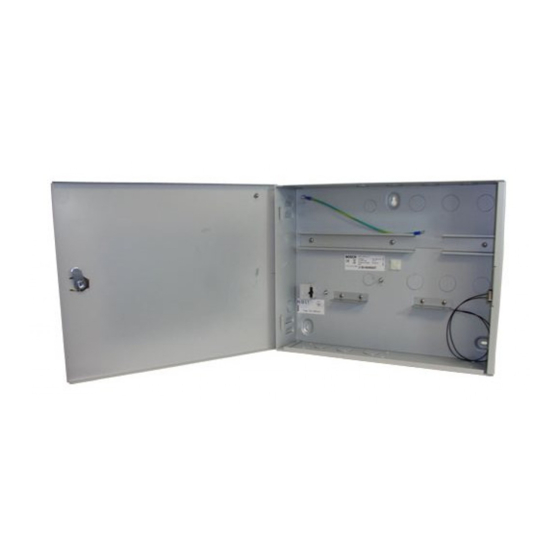

    AMC2 enclosure - 1 DIN rail AEC-AMC2-UL1 Installation Manual...

  • Page 3: Table Of Contents

    Table of contents | en rail Table of contents System Overview Components of the Housing Accessories Kit Mounting the Housing Connection of the Devices Connections for Supporting UPS 12 V Mode Operation 24 V Mode Operation Bosch Access Systems GmbH 2018-04 | AEC-AMC2-UL1 |...

  • Page 4: System Overview

    AMC2 enclosure - 1 DIN en | System Overview rail System Overview Components of the Housing The metal housing includes the following components: Figure 1.1: Components of the Housing 2018-04 | AEC-AMC2-UL1 | Bosch Access Systems GmbH...

  • Page 5

    Cable knock-outs for reader and signal cables Cover tamper switch Temperature sensor bracket Clips for rechargeable batteries Main grounding point Name plate Label Power cable knock-out Three pin connector Power supply connector Bosch Access Systems GmbH 2018-04 | AEC-AMC2-UL1 |...

  • Page 6: Accessories Kit

    AMC2 enclosure - 1 DIN en | System Overview rail Accessories Kit The accessories kit includes the following cables. Install these cables as described in the chapter Connection of the Devices. Figure 1.2: Content of Accessories Kit 2018-04 | AEC-AMC2-UL1 | Bosch Access Systems GmbH...

  • Page 7

    Battery cable for using 24V mode Cable ties to secure the pre-assembled cable Pre-assembled cable with temperature sensor Three screw anchors S8 and wood screws M6 x 50 Bracket for cable fixing Bosch Access Systems GmbH 2018-04 | AEC-AMC2-UL1 |...

  • Page 8: Mounting The Housing

    Mount the metal housing at the desired position with the screw anchors provided with the enclosure. Use the screws at the points to mount the housing against the wall. Figure 2.1: Dimensions of the Housing 2018-04 | AEC-AMC2-UL1 | Bosch Access Systems GmbH...

  • Page 9: Connection Of The Devices

    When installing the enclosure, make sure to provide an appropriate disconnect device for the mains supply voltage. Removing a fuse or simply pulling the plug is not an appropriate means to disconnect the device! Bosch Access Systems GmbH 2018-04 | AEC-AMC2-UL1 |...

  • Page 10

    Connect the 7-pin plug A1 to the AMC’s power supply connector (labeled: POWER). Attach connectors A3 to the PS-interface DC and A2 to the interface labeled OK. Connect the grounding cable A4 at the grounding point 3 (Fig. 1.1). 2018-04 | AEC-AMC2-UL1 | Bosch Access Systems GmbH...

  • Page 11

    This ensures that the ground wire cannot be accidentally disconnected before live wires. Cable 1 – Cover grounding Cable Connect cable 1 to the grounding point on the cover. Close the cover. Bosch Access Systems GmbH 2018-04 | AEC-AMC2-UL1 |...

  • Page 12: Connections For Supporting Ups

    Attach connector G1 on the PS-interface labeled RTH. Route the cable across the temperature sensor bracket 6 so that the temperature sensor G2 hangs approximitely 5 cm (2 in.) above the rechargeable batteries. 2018-04 | AEC-AMC2-UL1 | Bosch Access Systems GmbH...

  • Page 13: Mode Operation

    To set the power supply to 12V mode set the switch as displayed in the image below. Figure 4.1: Power Supply Switch in 12V Mode Figure 4.2: 12V Mode - with one battery (left) and two batteries (right) Bosch Access Systems GmbH 2018-04 | AEC-AMC2-UL1 |...

  • Page 14

    Connect B2a (black) to the rechargeable battery’s – terminal, and B2b (red) to the rechargeable battery’s + terminal. Connect B3a (black) to the second rechargeable battery’s – terminal, and B3b (red) to the second rechargeable battery’s + terminal. 2018-04 | AEC-AMC2-UL1 | Bosch Access Systems GmbH...

  • Page 15

    24 V Mode Operation To set the power supply to 24V mode set the switch as displayed in the image below. Figure 4.3: Power Supply Switch in 24V Mode Figure 4.4: 24V Mode Bosch Access Systems GmbH 2018-04 | AEC-AMC2-UL1 |...

  • Page 16

    Stick the bracket (Fig. 1.2 – item J) on the back of the housing next to the batteries. Connectors B3a and B3b remain unused – fix them using the bracket J. 2018-04 | AEC-AMC2-UL1 | Bosch Access Systems GmbH...

  • Page 20
