4 | BLA1-CC Color Camera Modules
BLA1-CC-N Color Camera Module
(NTSC format)
Order Number BLA1-CC-N
The BLA1-CC-N camera module provides an NTSC video sig-
nal of 512 (H) x 492 (V) effective pixels with electronic shutter
speeds from 1/60 second to 1/100000 second.
BLA1-CC-P Color Camera Module
(PAL format)
Order Number BLA1-CC-P
The BLA1-CC-P camera module provides a PAL video signal of
512 (H) x 582 (V) effective pixels with electronic shutter speeds
from 1/50 second to 1/100000 second.
Der Standardsockel wird aufgesetzt und rationell mit Schnappverbindungen be
Bosch Security Systems For more information, visit:
130 Perinton Parkway
www.boschsecuritysystems.com
Fairport NY 14450
USA
Modifications reserved | 4998153860en-01
1 |Intrusion BLA1-CC Color Camera Modules
Blue Line A1-CC
Color Camera Modules
Series Features
• Color charge-coupled device (CCD) camera with 3.4 lx
light sensitivity
• NTSC or PAL video format
• 330 lines of horizontal resolution
• The camera may be left on or controlled by the detector
alarm
• Selectable (Form A or Form B) alarm relay outputs
• Includes video cable with BNC (Bayonet Neill-Concel-
man) connector
Series Listings, Certifications, and Approvals
Country Certification/Listing Number
Canada IC (RSS-210)

Europe
US ANSR: Intrusion Detection Devices
(UL639)
FCC (Part 15)
Security you can rely on.
Family 1.1.1
123456789

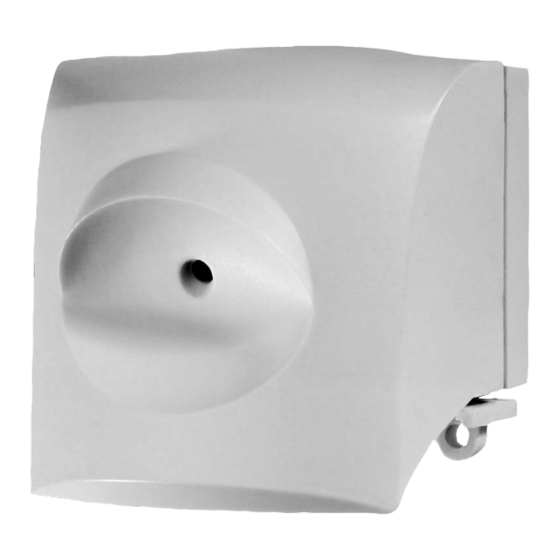

The BLA1-CC color camera modules
attach to the Blue Line detectors.
These camera modules, available in
either NTSC or PAL formats, are small,
easy-to-mount, and attractive. The
camera can be set to run continuously
or to run for either 15 seconds or 90
seconds when triggered by the
detector alarm.
