Access Modular Controller 2
3.2
Equipment Configuration

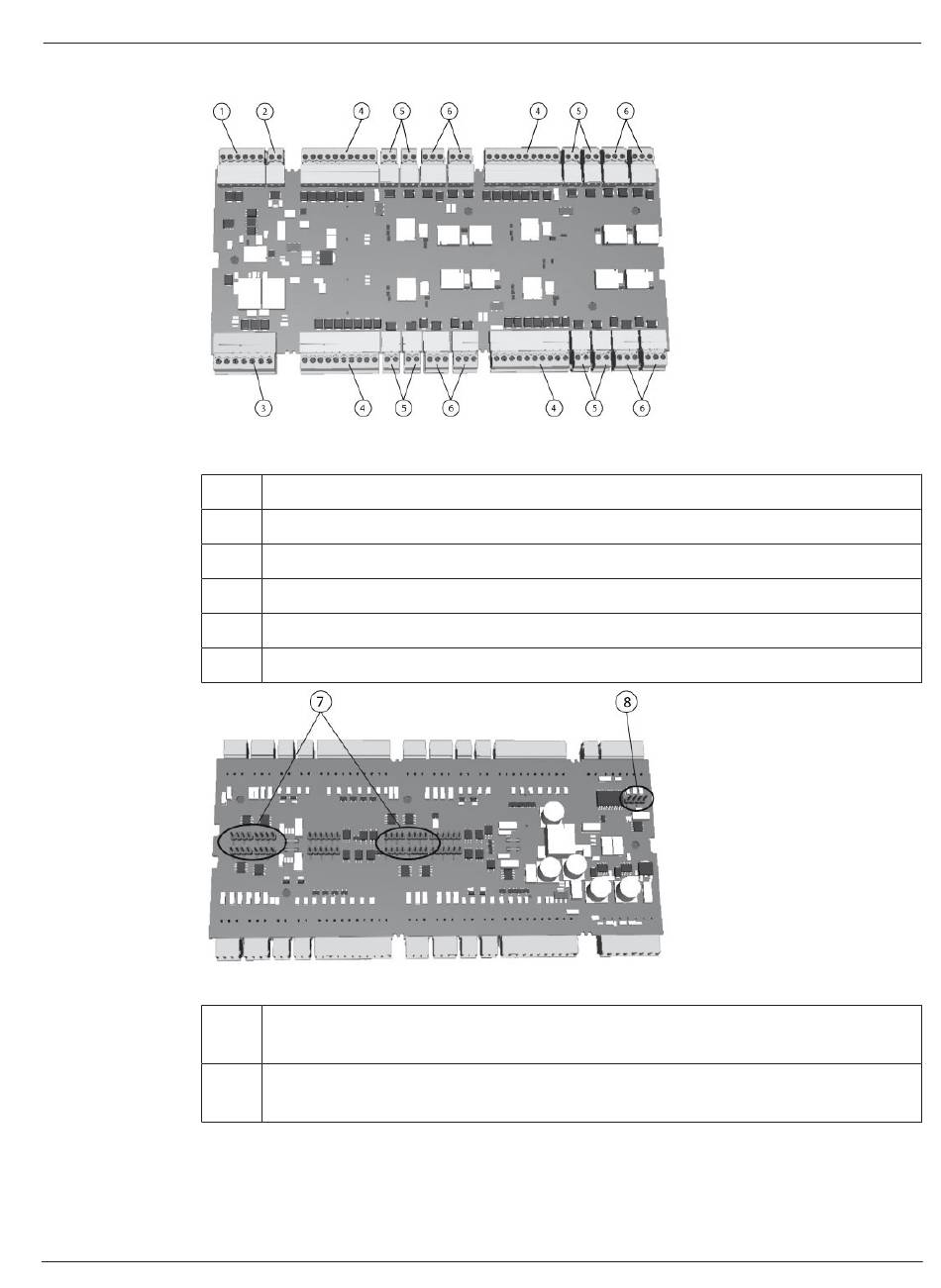

Figure 3.2: Overview - Interfaces
Figure 3.3: Jumpers at the bottom side
Bosch Access Systems B.V.
1
RS-485 extension module bus
2
External tamper contact
3
Connector for power supply
4
Wiegand interfaces for up to 8card readers
5
Connectors for eight analog inputs
6
Connectors for eight relay outputs
7
Jumper for setting either voltage free relay output ("dry" mode) or looped-in voltage
from the AMC2 internal power supply ("wet" mode).
8
Jumper: Equalization of potential between different systems and earth ground
(shield) for the extension interface.
Installation manual
Introduction | en
9
2020-01 | V02 |
