Each relay output has a separate jumper setting on the underside of the circuit board to select
dry (D1) or wet ( D2) mode.

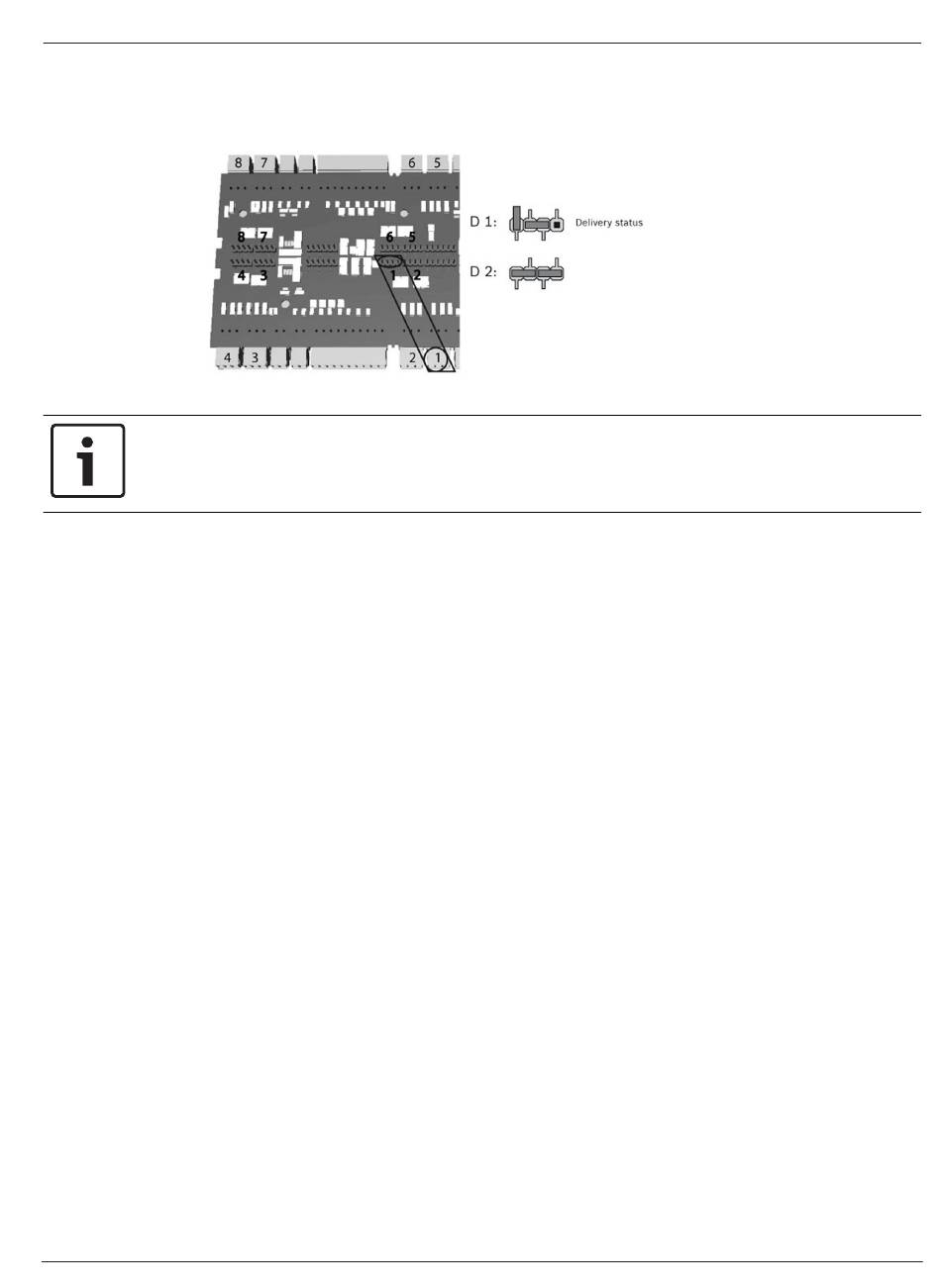

Figure 4.15: Location of relay output jumpers (bottom side)
Notice!
The positions of the jumpers 1 and 2 are interchanged related to the corresponding
interfaces.
Bosch Access Systems B.V.
Installation manual
Installing | en
25
2020-01 | V02 |
