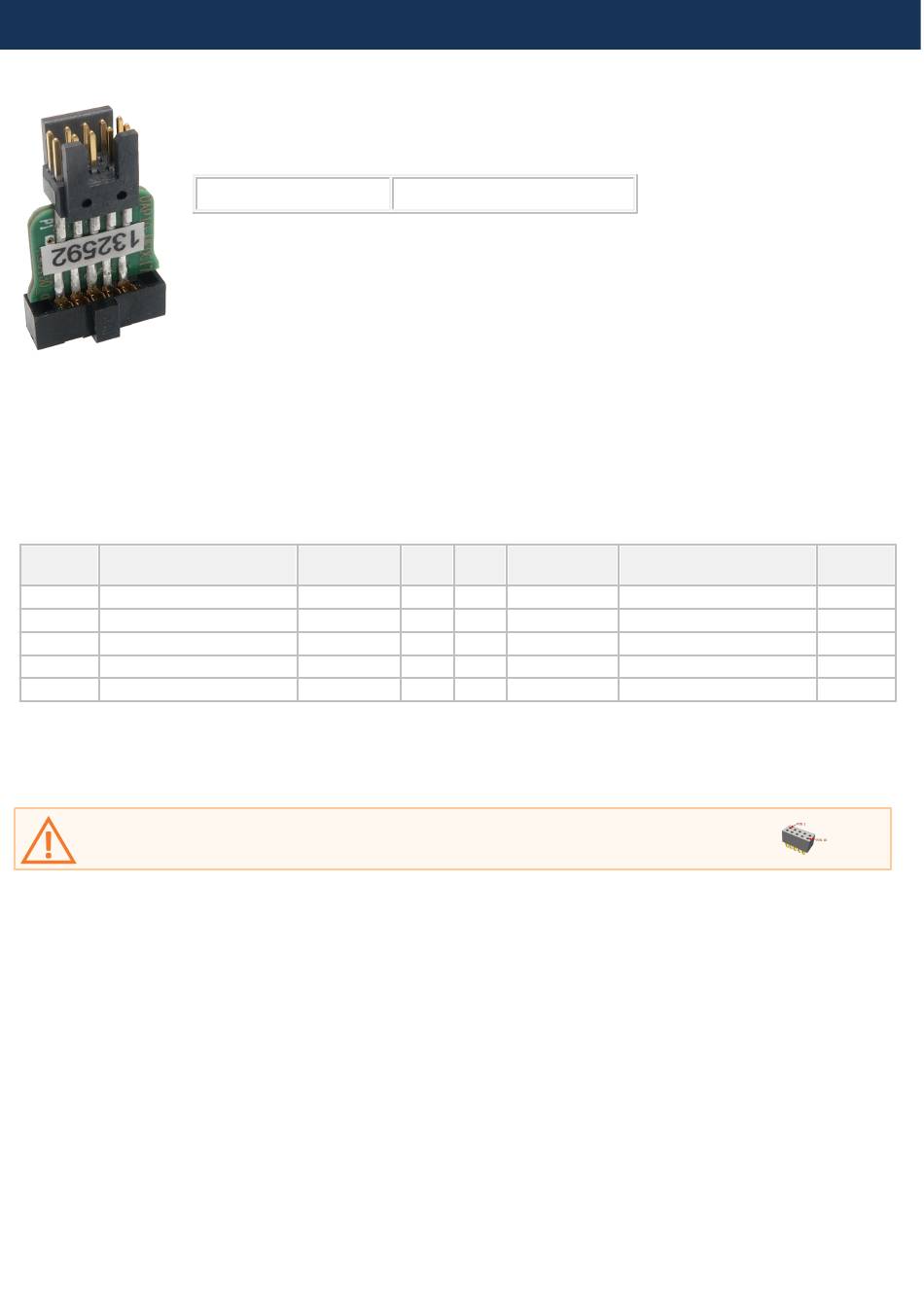

MEDC17 DAP 10-pin 1.27mm Converter

The MEDC17 converter and the pinout has been defined by Bosch.
Converter is connected at the end of the 10-pin 1.27mm Infineon DAP2 Wide D. Adapter (Ordering
code IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) acting as a
pinout converter and is available for TriCore embedded targets featuring the MEDC17 10-pin
1.27mm target debug connector. The adapter must be ordered separately.
The following pinout is valid on the target side:
Signal
Signal Description
Direction
Ground
I/O DAP Data pin
I/O Power on Reset
I/O Reference Voltage
Signal Direction is described from the BlueBox perspective.
The pin next to the alignment pin is pin 10 and not pin 1!
Pin is marked with a number 1 directly on the converter target connector.
The converter connects to the target via a 10-pin 1.27mm connector, Samtec SFM-105-02-L-D-A. A
target should feature a matching part, for example Samtec TFM-105-02-L-D.
Ordering code
Signal
GND
DAP1
nRESET
Vref
10-pin MEDC17 target pinout
IADAP10MEDC17
Pin Pin Signal
1 2
3 4 DAP0
5 6
7 8 nTRST/DAPEN
9 10 DAP2
Signal Description
DAP clock
Optional 3rd Data pin
Optional 2nd Data pin
Signal
Direction
O
I/O
I/O
