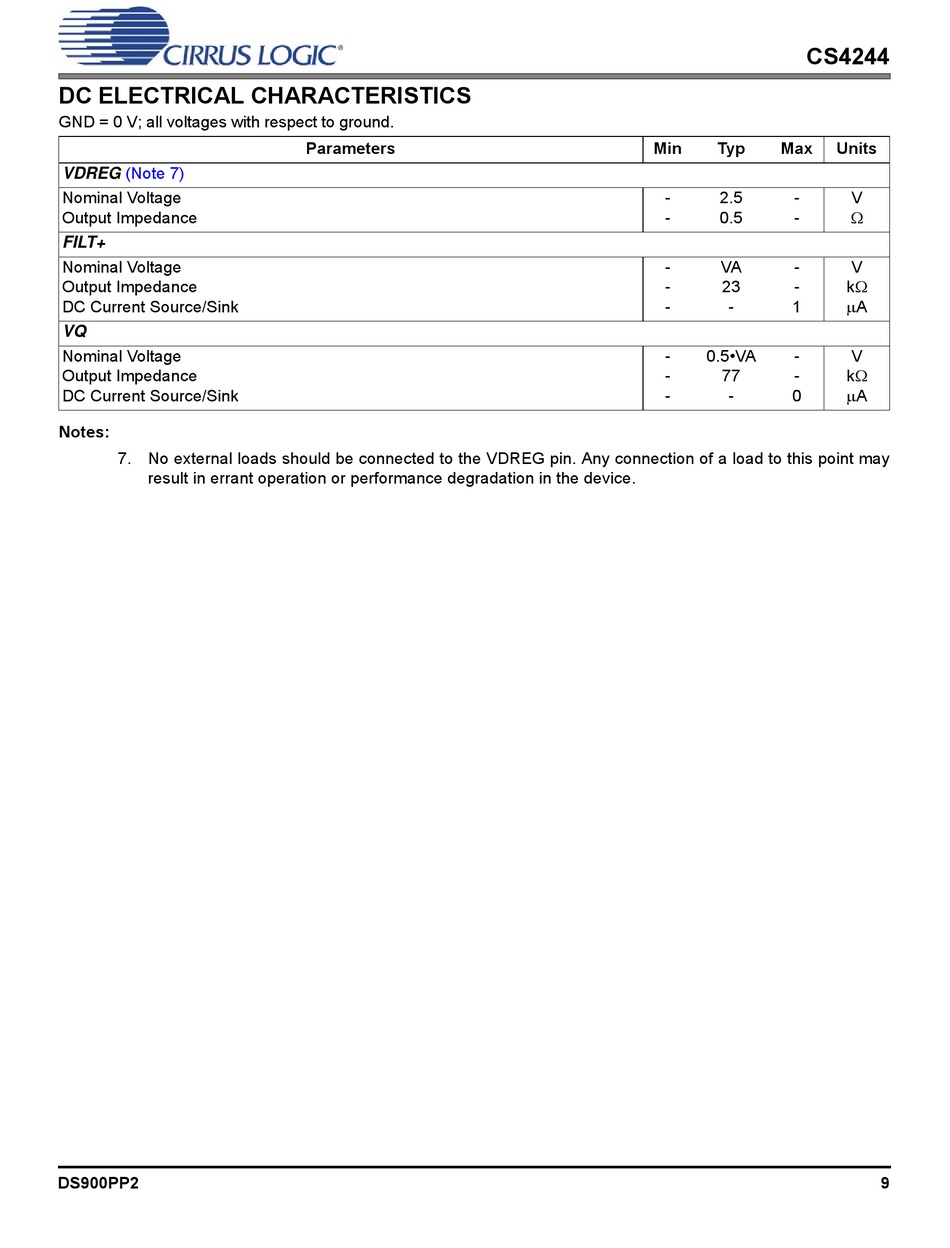

DC ELECTRICAL CHARACTERISTICS

GND = 0 V; all voltages with respect to ground.
(Note 7)
VDREG
Nominal Voltage
Output Impedance
FILT+
Nominal Voltage
Output Impedance
DC Current Source/Sink
VQ
Nominal Voltage
Output Impedance
DC Current Source/Sink
Notes:
7. No external loads should be connected to the VDREG pin. Any connection of a load to this point may
result in errant operation or performance degradation in the device.
DS900PP2
Parameters
CS4244
Min Typ Max
- 2.5 -
- 0.5 -
- VA -
- 23 -
- - 1
- 0.5•VA -
- 77 -
- - 0
Units
V

V
k
A
V
k
A
9
