4.6.2.3 ADC HPF
The ADC path contains an optional HPF which can be enabled or disabled for all four ADCs via the
ABLE HPF" bit in the "ADC Control 1"
of the input signal needs to be preserved in the digital output data. The HPF characteristics are given in
the ADC Digital Filter Characteristics
bles on pages
Note: If the internal bias is enabled (ADC CMx bits = '1'), the ADC HPF must be enabled to achieve full
specified performance.

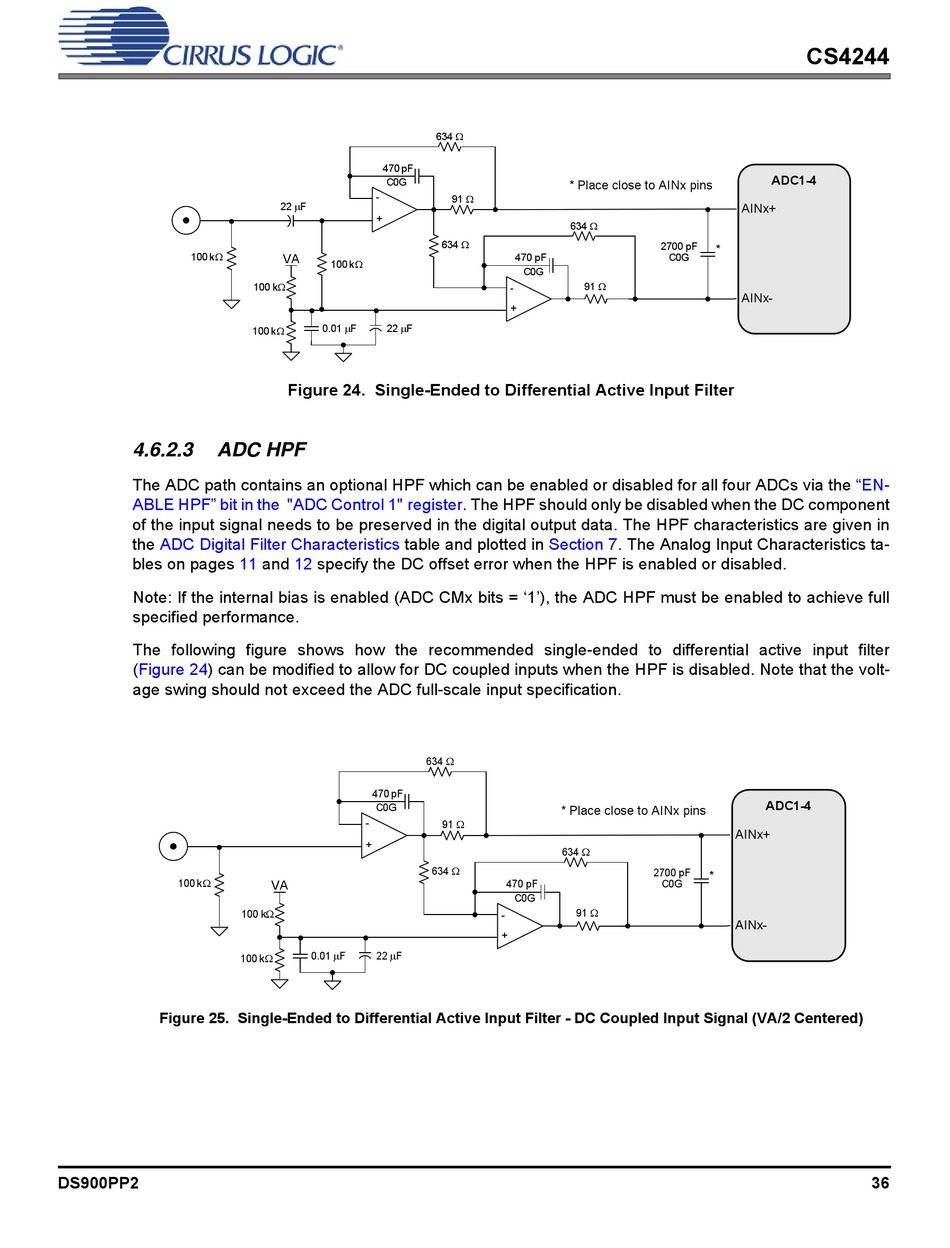

The following figure shows how the recommended single-ended to differential active input filter
(Figure 24) can be modified to allow for DC coupled inputs when the HPF is disabled. Note that the volt-
age swing should not exceed the ADC full-scale input specification.
