4.6.2 ADC Path
AIN1 (±)
AIN2 (±)
AIN3 (±)
Multi-bit
AIN4 (±)
 ADC
VL
1.8 to 5.0 VDC
4.6.2.1 Analog Inputs
AINx+ and AINx- are line-level differential analog inputs. An internal bias to VQ (approximately VA/2) can
be enabled or disabled via the ADCx CM bits in the
levels are scaled according to VA and can be found in the Analog Input Characteristics tables on pages
11 and 12.
The ADC output data is in two's complement binary format. For inputs above positive full scale or below
negative full scale, the ADC will output 7FFFFFH or 800000H, respectively, and cause the ADC Overflow
bit in the Interrupt Notification 1
4.6.2.2 Active ADC Input Filter
The analog modulator samples the input at 6.144 MHz (internal MCLK = 12.288 MHz). The digital filter
will reject signals within the stopband of the filter. However, there is no rejection for input signals which
are multiples of the digital passband frequency (n
a recommended analog input filter that will attenuate any noise energy at 6.144 MHz, in addition to pro-
viding the optimum source impedance for the modulators. The use of capacitors that have a large voltage
coefficient (such as general-purpose ceramics) must be avoided since these can degrade signal linearity.
DS900PP2
2.5 V
Channel Volume ,
Mute, Invert,
Digital Filters
Noise Gate
Serial Audio Interface
SDOUT1 SDOUT2 SDIN2 SDIN1
register to be set to a '1'.
VD VA
2.5 VDC 5.0 VDC
LDO Analog Supply
Master
Volume
Control Interpolation
Filter
Level Translator
Frame Sync Serial Clock
Master Clock In
Clock / LRCK In/ Out

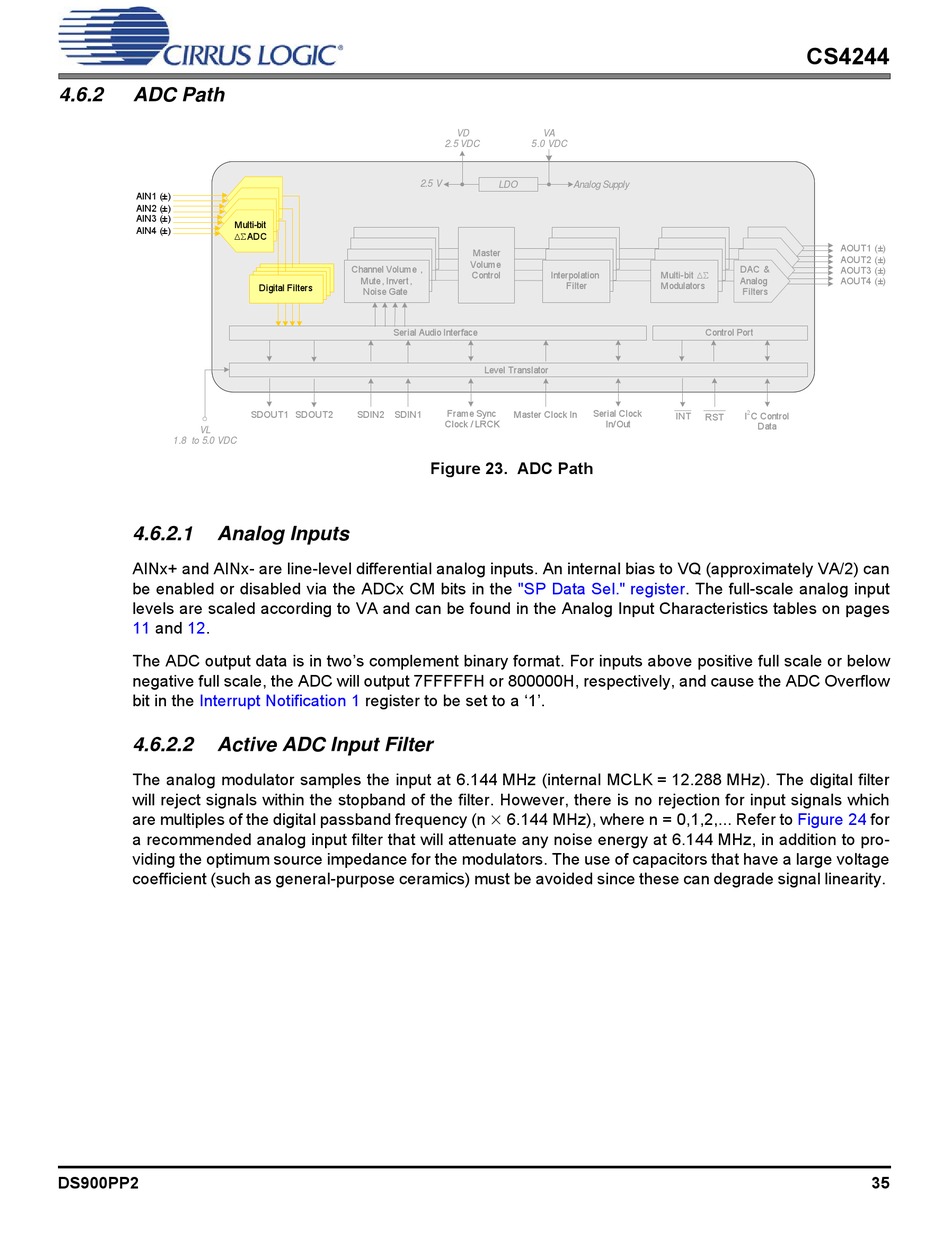

Figure 23. ADC Path
