Assembly and Operating Instructions for Outback®
Drawings are not to scale.
Specifications subject to change
without prior notice.
•
For outdoor use only. Not for commercial use.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children and pets away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
•
Retain these instructions for future reference.
•
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
•
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.

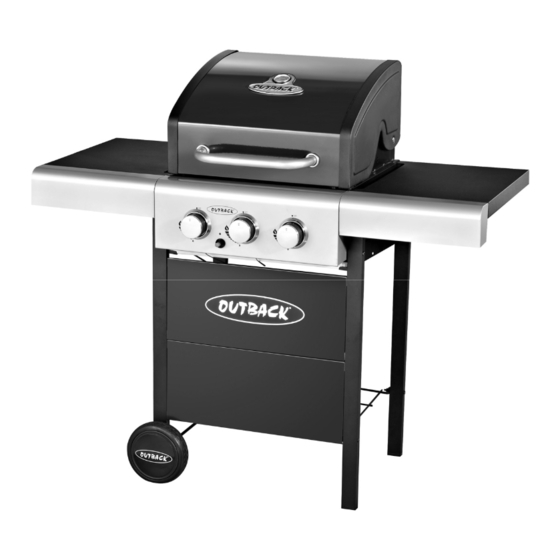

Meteor 3 Burner Gas BBQ
MH3330
1.
2.
FOR YOUR SAFETY
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Meteor 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Meteor 3

Summary of Contents for Outback Meteor 3

  • Page 1 Assembly and Operating Instructions for Outback® Meteor 3 Burner Gas BBQ Drawings are not to scale. MH3330 Specifications subject to change 0359 without prior notice. • For outdoor use only. Not for commercial use. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® Meteor 3 Burner CODE PART Gas BBQ Hood (Pre-Assembled to Body) HOOD...

  • Page 3: Parts Diagram

    Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice.
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, • adjustable spanner or metric spanner set. Remove any internal component or packaging from the barbecue body. • Whilst every care is taken in the manufacture of this product, care must be taken during assembly in •...
  • Page 6 Unscrew the Locknuts (D9) from both ends of the Axle (C11). Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C9) over each end of the axle. Secure the wheels into place with the locknuts. Place the Wheel Hubcaps (C10) onto the outside of the wheels.
  • Page 7 Lay the assembled trolley on its side. Lay the Barbecue Body (B1) on its back and slide into position between the trolley legs. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground. Insert the M6x65 Bolts (D6x8pcs) through the guide holes of each leg and screw into barbecue body tightly.
  • Page 8 Attach the Left Side Shelf Panel (C2) onto one Side Shelf (C1) using M6x15 Bolts (D5x2pcs) and M6 Nuts (D8x2pcs). Attach the left side shelf assembly to the barbecue body using a ST4.0x10 Screw (D1) and M6x15 Bolts (D5x4pcs) as shown.
  • Page 9 Attach the Right Side Shelf Panel (C3) onto the other Side Shelf (C1) using M6x15 Bolts (D5x2pcs) and M6 Nuts (D8x2pcs). Attach the right side shelf assembly to the barbecue body using a ST4.0x10 Screw (D1) and M6x15 Bolts (D5x4pcs) as shown.
  • Page 10 Attach the Drip Tray Right Bracket (B10) to the barbecue body using M5x15 Bolts (D2x2pcs), Ø5 Washers (D3x2pcs) and M5 Nuts (D4x2pcs) as shown. Repeat the above process for the Drip Tray Left Bracket (B9). NOTE: Ensure that the big tabs of the brackets which stop the drip tray are located at the front of the barbecue.
  • Page 11 Carefully lay the Lava Rock (B6) into the barbecue body ensuring it lies level within the body. Lay the Grill (B7) and Griddle (B8) into place. Configuration: Left — Cooking Grill, Right — Cooking Griddle NOTE: Ensure that the lava rock lies directly underneath the grills. Attach the Warming Rack (A3) to barbecue body as shown.

  • Page 12: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

  • Page 13: Gas, Regulator And Hose

    Important Information Before you use your barbecue, perform a leak test. This is the only safe and sure way to detect any gas leaking from joints and Please read these instructions carefully connections of the barbecue after assembly. before assembly and use of your barbecue. Leak test annually, and whenever the gas bottle is removed or replaced.

  • Page 14: Installation

    DANGEROUS AND WILL INVALIDATE ANY solid plate — this includes baking dishes. WARRANTY. Please consult your local gas Full coverage will cause excessive build-up dealer for the most suitable gas bottles and of heat and damage the barbecue. This is regulators.
  • Page 15 • Insert lit match through the right match- Turn the burner directly under the food to the lighting hole on the right side of the OFF position and turn all other burners to a barbecue body and place near rightmost LOW to MEDIUM position.

  • Page 16: Care And Maintenance

    Fat Fires Never handle hot parts with unprotected Empty and clean the drip tray and drip pan (and hands. foil liner, if applicable) of food debris after each Never douse the barbecue with water when cooking session. If the barbecue is to be used for its surfaces are hot.
  • Page 17 When refitting the burners, be careful to check Storage that the neck of the burner fits over the valve Ensure the barbecue is properly cooled before outlet. covering or storing. Store your barbecue in a cool dry place. It is quite normal for surface rust to be present on the burners.

  • Page 18: Technical Specifications

    Technical Specifications NOTES: Heat Injector Burners Gas /Pressure Approval Input Size Outback® Meteor 3 0359 8.64 Butane: 28-30mbar 0.84mm Burner Gas 359BR665 Propane: 37mbar Gas Consumption: 628g/hr Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT,...

  • Page 19: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
  • Page 20 OUTBACK® WARRANTY OUTBACK® barbecues are warranted to the original purchaser against defects in materials and workmanship. OUTBACK® will supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
