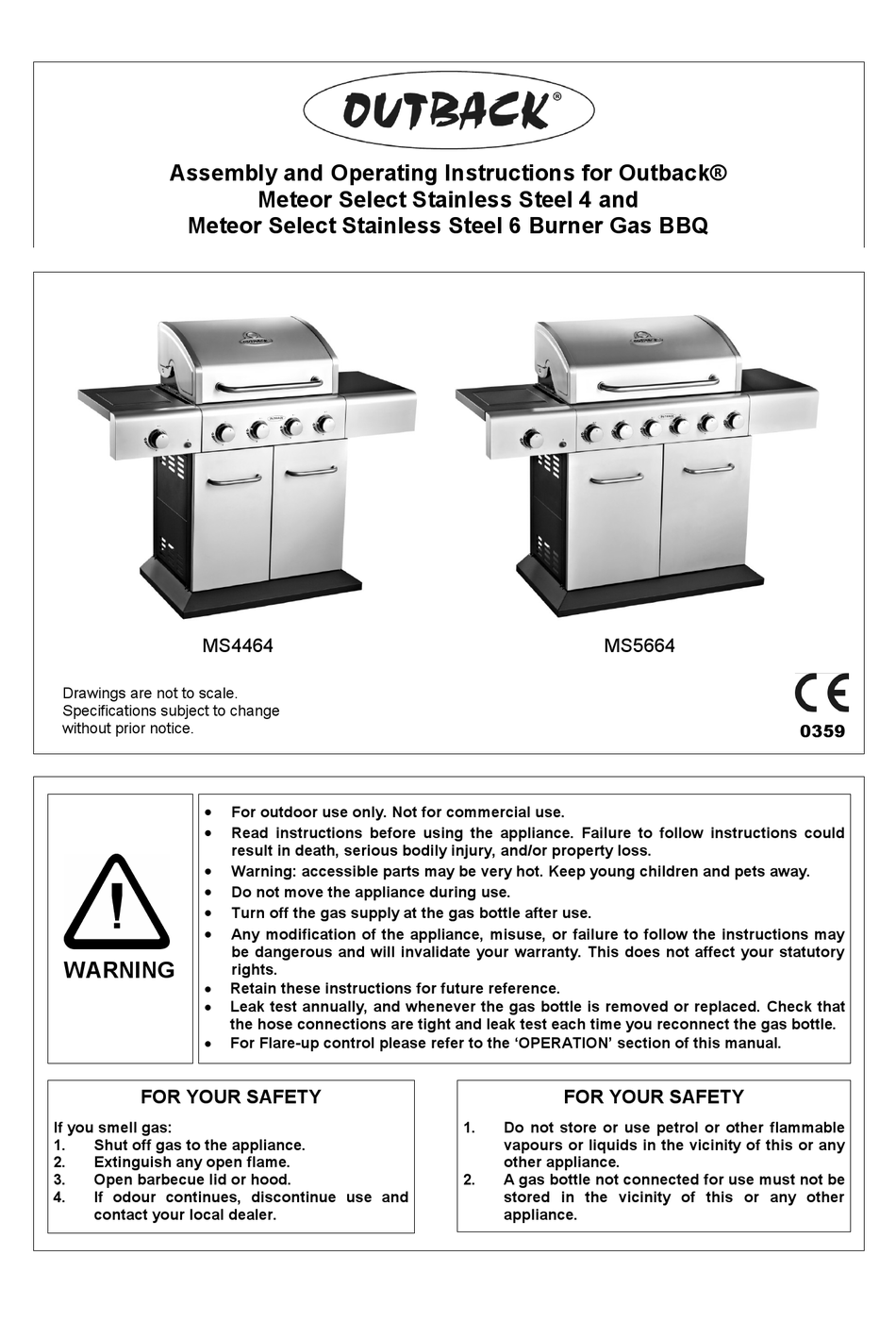

Assembly and Operating Instructions for Outback®
Meteor Select Stainless Steel 6 Burner Gas BBQ
MS4464
Drawings are not to scale.
Specifications subject to change
without prior notice.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Meteor Select Stainless Steel 4 and
MS5664
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS4464 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Outback MS4464

  • Page 1 Assembly and Operating Instructions for Outback® Meteor Select Stainless Steel 4 and Meteor Select Stainless Steel 6 Burner Gas BBQ MS4464 MS5664 Drawings are not to scale. Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.
  • Page 2: Table Of Contents

    1. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘. Outback® Outback® CODE PART Meteor Select Stainless Steel Meteor Select Stainless Steel...
  • Page 3 2. Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.
  • Page 4 3. Hardware Reference Diagram Specifications subject to change without prior notice.
  • Page 5 4. Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal component or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 6 Attach the Cabinet Skirts (C27, C28, C29) to the bottom panel using M4x10 Bolts (D3x7pcs) and M4 Nuts (D4x7pcs) as shown. Then fix the left / right cabinet skirts onto the front cabinet skirt using ST4.0x10 Screws (D1x2pcs) as shown. Unscrew the retaining bolts and retaining nuts from the Balance Weight (C30).
  • Page 7 Front Side Rear Side Carefully turn the cabinet assembly over, right side up. Attach Drip Tray Left Bracket (B9) to the right legs using ST4.0x10 Screws (D1x2pcs) as shown. Repeat the above process for Drip Tray Right Bracket (B10). Attach the Upper Support (C21) to the front legs using M6x15 Bolts (D6x4pcs).
  • Page 8 Attach the Door Handle (C22) onto the Left Door (C23) using M6x15 Bolts (D6x2pcs). Repeat the above process for Right Door (C24). Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet. Attach the Basket (C25) onto the right door as shown.
  • Page 9 Attach the Body Support A (C14) onto the left rear leg and right front leg using M4x10 Bolts (D3x4pcs) , and attach the Body Support B (C15) onto the right rear leg and left front leg using M4x10 Bolts (D3x4pcs) as shown. Carefully place the Barbecue Body (B1) onto the body supports and fix using M6x40 Bolts (D7x8pcs) as shown.
  • Page 10 Attach the Side Shelf Panel (C4) onto the Side Shelf (C3) using M6x15 Bolts (D6x2pcs) and M6 Nuts (D8x2pcs) as shown. Attach the side shelf assembly to the barbecue body using ST4.0x10 Screws (D1x2pcs) and M6x15 Bolts (D6x4pcs) as shown.
  • Page 11 Connect the gas Hose (B5) to the barbecue. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner. Do not use force which may damage the assembly.
  • Page 12 Attach the side burner shelf assembly to the barbecue body using ST4.0x10 Screws (D1x2pcs) and M6x15 Bolts (D6x4pcs) as shown.    Attach the side burner valve and Knob Bezel (C10) onto the side burner shelf using M4x10 Bolts (D3x2pcs) as shown.
  • Page 13 Unscrew the pre-assembled nut of the Ignition Button (B13). Insert the Ignition Button (B13) into the hole on the side burner shelf panel and secure with the pre-assembled nut. Connect the electrode wire to the Ignition Button (B13).
  • Page 14 Attach the Side Burner Firebox (C8) into the side burner shelf using M4x10 Bolts (D3x4pcs) as shown.   Feed the tube of the Sear Burner (C12) through the guide hole in the side burner firebox, and fix it onto the side burner firebox using M5x15 Bolts (D5x2pcs) as shown. Make sure that the end of tube is set over the gas outlet of the side burner valve.
  • Page 15 Main burner wire Side burner wire Attach Side Burner Electrode (C9) into the side burner firebox using a ST4.0x10 Screw F# (D2) as shown. Connect the electrode wire to the Ignition Button (B13). WARNING: BEFORE OPERATION, ENSURE BOTH THE MAIN BURNER AND SIDE BURNER WIRES ARE CONNECTED TO THE PUSH BUTTON IGNITOR.
  • Page 16 Place the Side Burner Grid (C5) onto the side burner shelf. Note: Only use cookware with a base diameter of between 150mm and 220mm on the side burner. Insert the Side Burner Drip Tray (C13) by sliding it underneath the side burner frame as shown.
  • Page 17 Insert the Drip Tray (B11) by sliding it underneath the barbecue body. Place the Drip Pan (B12) in position as shown. Carefully insert the Lava Rock / Flame Tamer (B6) into the barbecue body ensuring it lies level within the body. Place the Grill (B7) and Griddle (B8) into place. Model configuration: Left —...
  • Page 18: Warming Rack

    Step 1 Step 2 Step 3 Step 4 Attach the Warming Rack (A3) to the Hood (A1) and Barbecue Body (B1) as shown. Make sure that the swing legs fix to the body of the barbecue and the shorter fixed legs go through the holes in the hood.
  • Page 19: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
  • Page 20: Burner

    5. Important Information  Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and before assembly and use of your barbecue. connections of the barbecue after assembly.
  • Page 21: Burner

    INCORRECT FAULTY u n d e r s t a n d t h e I M P O R T A N T REGULATOR IS DANGEROUS AND WILL INFORMATION section of this manual. INVALIDATE ANY WARRANTY. Please consult  Your barbecue is not designed to be used your local gas dealer for the most suitable gas with more than 50% of the cooking area as a bottles and regulators.
  • Page 22: Knob

    burners to the low position for best cooking exactly the same way as a griddle in the results. kitchen, for searing steaks, cooking eggs, etc. 8.4. Manual Ignition Instructions Alternatively, it can be used for heating pans or  Open the barbecue and side burner hood or keeping food warm.
  • Page 23: Drip Tray

    Slide one of the spit forks onto the spit rod given below. and tighten its thumb screw to secure it into 8.11. Fat Fires place. Insert the pointed end of the spit rod into the meat being cooked and slide the Empty and clean the drip tray and drip pan (and meat towards the centre of the rod.
  • Page 24 moist areas. on the burners. If rust appears between uses or in storage, clean with a soft brass wire brush.  Never handle hot parts with unprotected hands. 9.3. Flame Tamer (where supplied)  Never douse the barbecue with water when Remove any food residue from the flame tamer its surfaces are hot.
  • Page 25: Technical Specifications

    Gas Consumption: The gas bottle should always be stored outside, Outback® Meteor Select Stainless Steel 4 Burner Gas BBQ: 943g/hr in a dry, well-ventilated area, away from any Outback® Meteor Select Stainless Steel 6 Burner Gas BBQ: 1258g/hr Side Burner: 328g/hr sources of heat or ignition.
  • Page 26: Troubleshooting

    11. Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
