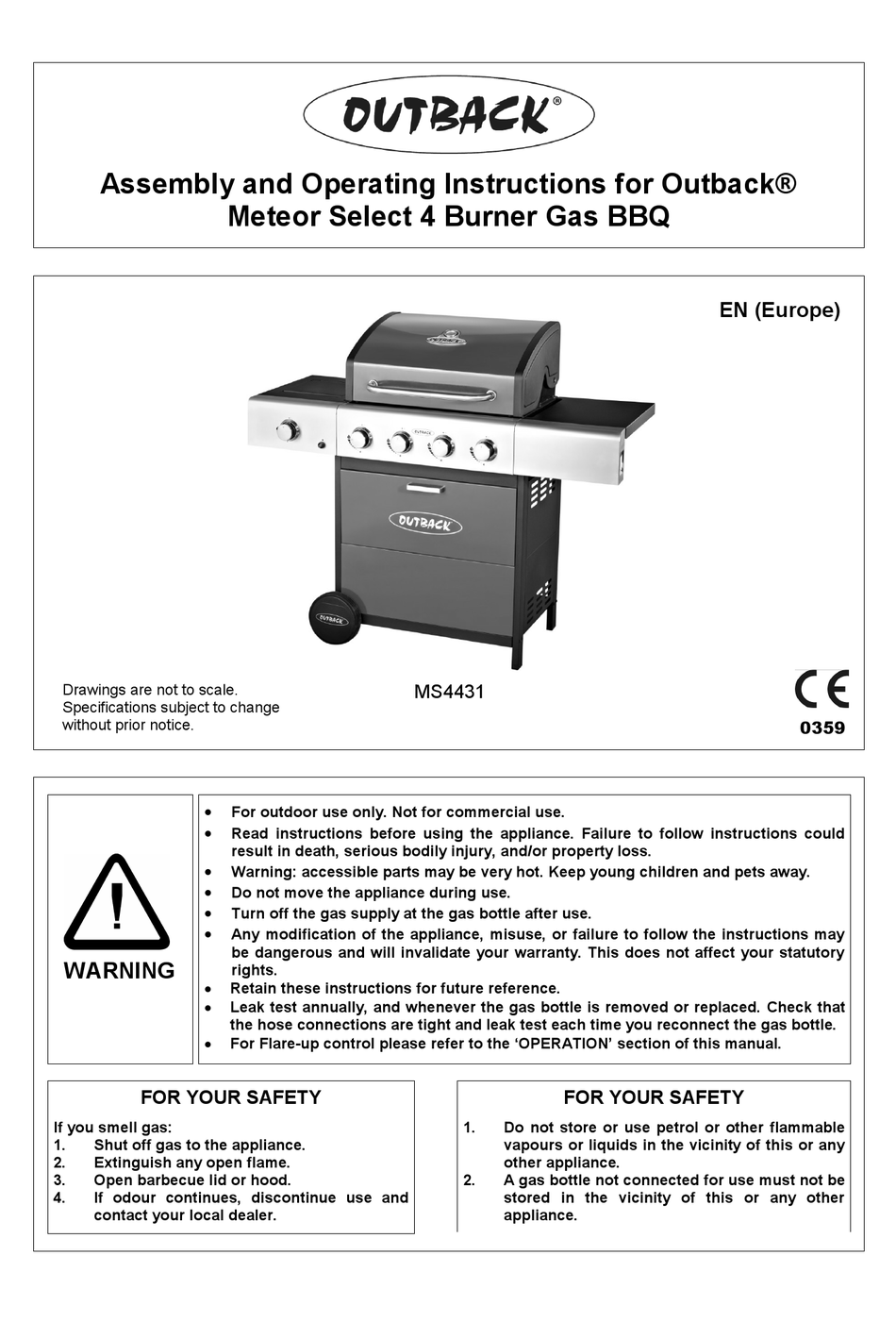

Assembly and Operating Instructions for Outback®

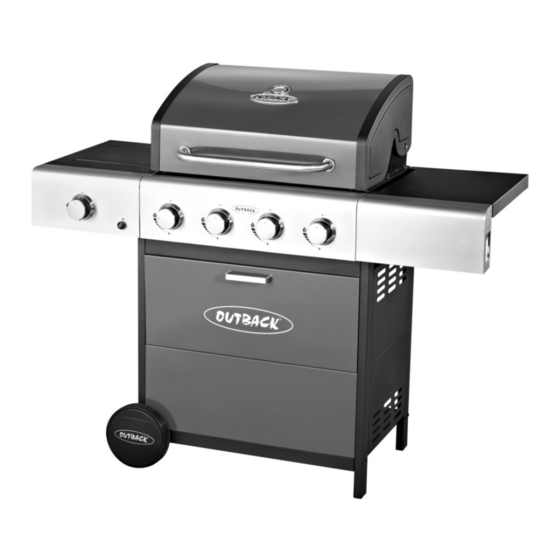

Meteor Select 4 Burner Gas BBQ
Drawings are not to scale.
Specifications subject to change
without prior notice.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
MS4431
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
EN (Europe)
0359

Advertisement

Table of Contents
loading

Related Manuals for Outback MS4431

Summary of Contents for Outback MS4431

  • Page 1 Assembly and Operating Instructions for Outback® Meteor Select 4 Burner Gas BBQ EN (Europe) Drawings are not to scale. MS4431 Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    1. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘. CODE PART Meteor 4 Burner Hood (Pre-Assembled to Body)  HOOD Hood Handle ...

  • Page 3: Parts Diagram

    2. Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.
  • Page 4 3. Hardware Reference Diagram Specifications subject to change without prior notice.
  • Page 5 4. Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal component or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 6 Attach the left / right cabinet panel assembly to the Bottom Panel (C18) using M6x40 Bolts (D5) and M6 Nuts (D6) as shown. Unscrew the Locknuts (D7) from both ends of the Axle (C21). Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C19) over each end of the axle.
  • Page 7 Front Side Rear Side Attach Drip Tray Left Bracket (B9) to the left legs using ST4.0x10 Screws (D1) as shown. Repeat above process for Drip Tray Right Bracket (B10). Install the Front Panel (C16) between the left / right front legs using ST4.0x10 Screws (D1).
  • Page 8 Remove the retaining bolts from the Storage Box Handle (C14), and then attach it onto the Stor- age Box (C15) using the retaining bolts. Install the storage box assembly between the left / right front legs using M4x10 Step Bolts (D3).
  • Page 9 Attach the Upper Support (C13) to the front legs using M6x15 Bolts (D4). Remove the retaining bolts from the legs, then attach Body Support ―A‖ (C22) onto the left rear leg and right front leg and attach Body Support ―B‖ (C23) onto the right rear leg and left front leg using the retaining bolts.
  • Page 10 Carefully place the Barbecue Body (B1) onto the body supports and fix using M6x40 Bolts (D5) as shown. WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 11 Attach Side Burner Shelf Panel (C2) onto the Side Burner Shelf (C1) using M6x15 Bolts (D4) and M6 Nuts (D6). Attach the side burner shelf assembly to the barbecue body using ST4.0x10 Screws (D1) and M6x15 Bolts (D4) as shown.
  • Page 12    Attach the side burner valve and Knob Bezel (C4) onto side burner shelf using M4x10 Bolts (D2) as shown. Press the Side Burner Knob (C5) onto the side burner valve stem. Unscrew the pre-assembled nut of the Ignition Button (B13). Insert the Ignition Button (B13) into the hole on the side burner shelf panel and secure with the pre -assembled nut.
  • Page 13 Main burner wire Side burner wire Connect the electrode wire to the Ignition Button (B13). WARNING: BEFORE OPERATION, ENSURE BOTH THE MAIN BURNER AND SIDE BURNER WIRES ARE CONNECTED TO THE PUSH BUTTON IGNITOR. IF THE CIRCUIT IS NOT COMPLETE, THE IGNITOR WILL NOT SPARK! ...
  • Page 14 Attach the Side Shelf Panel (C8) onto the Side Shelf (C7) using M6x15 Bolts (D4) and M6 Nuts (D6). Attach the side shelf assembly to the barbecue body using ST4.0x10 Screws (D1) and M6x15 Bolts (D4) as shown.
  • Page 15 Insert the Drip Tray (B11) by sliding it underneath the barbecue body. Place the Drip Pan (B12) in position as shown. Carefully insert the Lava Rock / Flame Tamer (B6) into the barbecue body ensuring it lies level within the body. Place the Grill (B7) and Griddle (B8) into place. Model configuration: Left —...

  • Page 16: Leak Testing

     Repeat test  If bubbles form again do not use the barbecue and contact your local Outback distributor  for assistance. Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints and con-...

  • Page 17: Gas, Regulator And Hose

    5. Important Information leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully before assembly and use of your barbecue.  Leak test annually, and whenever the gas bottle is removed or replaced.

  • Page 18: Installation

    regulators. not covered by warranty.  Only use cookware with a base diameter of between 150mm and 220mm on the side 7. Installation burner. 7.1. Selecting a Location 8.2. Preparation Before Cooking This barbecue is for outdoor use only and To prevent foods from sticking to the cooking should be placed in a well-ventilated area, and surface, please use a long handled brush to...
  • Page 19  Ensure all knobs are in the off position. baking food, such as joints of meat or whole chickens, etc. More even cooking of food will Open the gas control valve on the gas bottle actually be achieved by using the barbecue with or regulator.

  • Page 20: Care And Maintenance

    optimal rotisserie cooking, food must be remove food debris from the drip tray and drip placed securely onto the middle of the spit pan (and foil liner, if applicable), and clean it rod and balanced so that the rotisserie can out.
  • Page 21 It is not necessary to remove and wash the lava barbecue covers and other accessories are rock in order to keep it clean. Burning off the available from your local Outback® stockist. residue for 3 to 5 minutes after each cooking session should sufficient.
  • Page 22 cool dry place. Cover the burners with aluminium foil in order to prevent insects or other debris from collecting in burner holes. If the barbecue is to be stored indoors, the gas bottle must be disconnected and left outside. The gas bottle should always be stored outside, in a dry, well-ventilated area, away from any sources of heat or ignition.

  • Page 23: Technical Specifications

    Burner 359BR665 0.84mm LPG mixtures: 30mbar Gas Consumption: Outback® Meteor Select 4 Burner Gas BBQ: 943g/hr Side Burner: 214g/hr Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, 3+ (28-30/37) SK, SI...

  • Page 24: Troubleshooting

    11. Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
