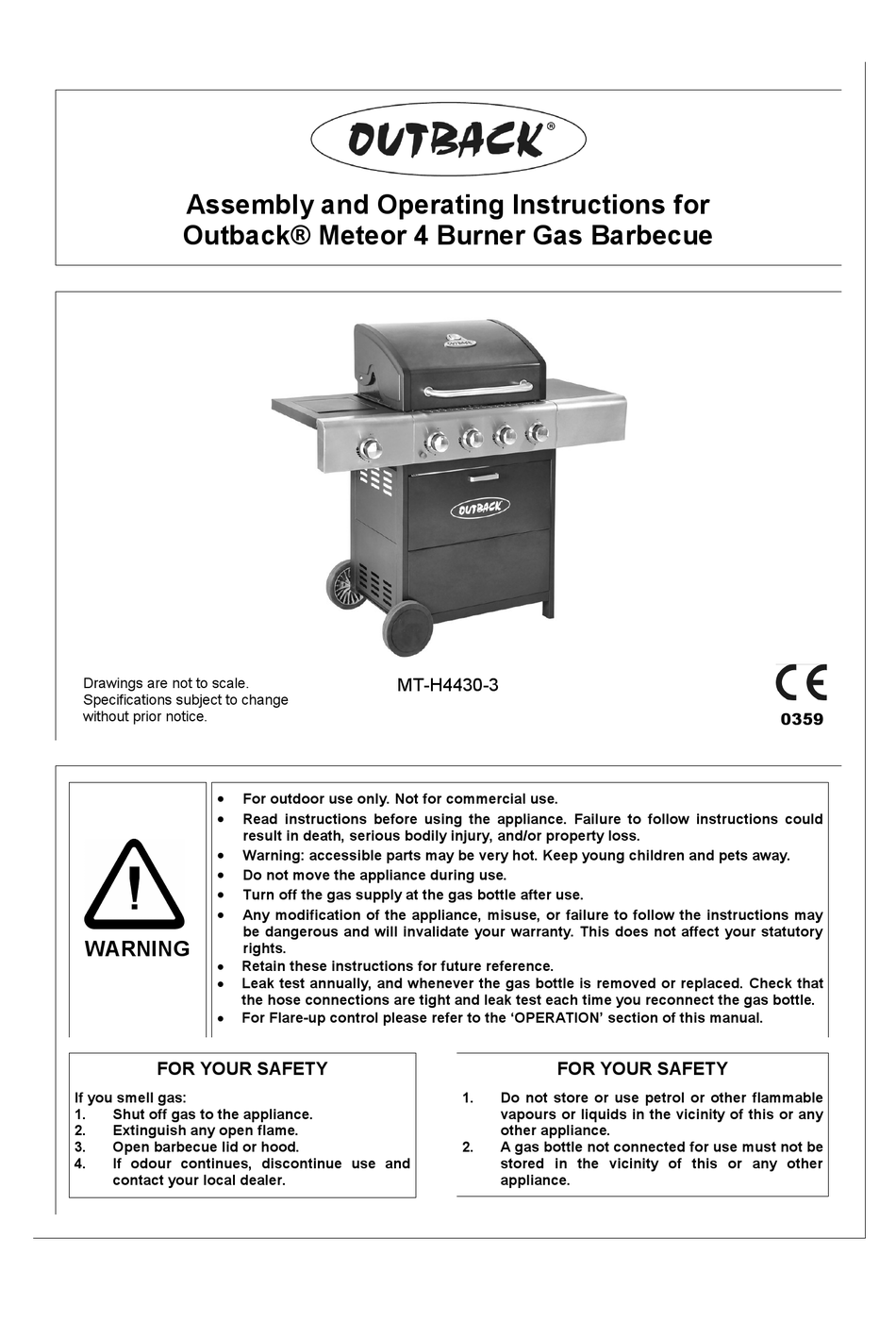

Assembly and Operating Instructions for
Outback® Meteor 4 Burner Gas Barbecue
Drawings are not to scale.
Specifications subject to change
without prior notice.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
MT-H4430-3
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

loading
Need help?

Need help?

Do you have a question about the Meteor MT-H4430-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Outback Meteor MT-H4430-3

  • Page 1 Assembly and Operating Instructions for Outback® Meteor 4 Burner Gas Barbecue Drawings are not to scale. MT-H4430-3 Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
  • Page 2: Table Of Contents

    1. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback Meteor Select CODE PART Hooded 4 Burner Gas BBQ Hood (Pre-Assembled to Body) ...
  • Page 3: Parts Diagram

    2. Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 3. Hardware Reference Diagram Specifications subject to change without prior notice. CODE PART ILLUSTRATION CODE PART ILLUSTRATION ST4.0x10 M6x40 Screw Bolt M4x10 M6 Nut Bolt M4 Step Bolt Locknut M6x15 Bolt...
  • Page 5 4. Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal component or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 6 Attach the left / right cabinet panel assembly to the Bottom Panel (C18) using M6x40 Bolts (D5) and M6 Nuts (D6) as shown. Unscrew the Locknuts (D7) from both ends of the Axle (C21). Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C19) over each end of the axle.
  • Page 7 Front Side Rear Side Attach Drip Tray Left Bracket (B9) to the left legs using ST4.0x10 Screws (D1) as shown. Repeat above process for Drip Tray Right Bracket (B10). Install the Front Panel (C16) between the left / right front legs using ST4.0x10 Screws (D1).
  • Page 8 Fix the Electronic Ignition Assembly (C22) and Heat Shield (C23) to the front left leg by inserting two ST4.0x10 Screws (D1) through the electronic ignition assembly and heat shield and screwing into the front left leg. Remove the retaining bolts from the Storage Box Handle (C14), and then attach it onto the Stor- age Box (C15) using the retaining bolts.
  • Page 9 Install the storage box assembly between the left / right front legs using M4 Step Bolts (D3). Attach the Upper Body Support (C13) to the front legs using M6x15 Bolts (D4).
  • Page 10 Carefully place the Barbecue Body (B1) onto the cabinet structure and fix using M6x40 Bolts (D5) as shown. WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 11 Attach the side burner shelf assembly to the barbecue body using ST4.0x10 Screws (D1) and M6x15 Bolts (D4) as shown. Attach the side burner valve and Knob Bezel (C4) onto side burner shelf using M4x10 Bolts (D2) as shown. Press the Side Burner Knob (C5) onto the side burner valve stem.
  • Page 12 Feed the venturi tube of the Side Burner (C6) through the hole in bottom of the side burner shelf, and fix side it onto the side burner shelf using a M4x10 Bolt (D2) as shown. Make sure that the end of venturi tube is set over the gas outlet of the side burner valve. Attach the Side Shelf Panel (C8) onto the Side Shelf (C7) using M6x15 Bolts (D4) and M6 Nuts (D6).
  • Page 13 Attach the side shelf assembly to the barbecue body using ST4.0x10 Screws (D1) and M6x15 Bolts (D4) as shown. Insert the Drip Tray (B11) by sliding it underneath the barbecue body. Place the Drip Pan (B12) in position as shown.
  • Page 14 Connect the wires to the electronic ignition assembly as shown in the diagram in the next step. Insert the electronic ignition battery (not supplied) into the battery compartment, ensuring the battery is correctly installed according to the (+) (-) markings. Electronic Ignition Assembly Diagram Black Black...
  • Page 15 Carefully insert the Lava Rock / Flame Tamer (B6) into the barbecue body ensuring it lies level within the body. Place the Grill (B7) and Griddle (B8) into place. Model configuration: Left — Cooking Grill, Right — Cooking Griddle. NOTE: Ensure that the lava rock lies directly underneath the grills. No lava rock is required when using the flame tamer.
  • Page 16: Warming Rack

    Retighten all joints  Repeat test  Outback distributor for If bubbles form again do not use the barbecue and contact your local  assistance. Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints and connec-...
  • Page 17: Burner

    5. Important Information  Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and before assembly and use of your barbecue. connections of the barbecue after assembly.
  • Page 18: Knob

    WARRANTY. Please consult your local gas Full coverage will cause excessive build-up dealer for the most suitable gas bottles and of heat and damage the barbecue. This is regulators. not covered by warranty. 8.2. Preparation Before Cooking 7. Installation To prevent foods from sticking to the cooking surface, please use a long handled brush to 7.1.
  • Page 19  Insert lit match through the right match- the hood down. However, this should only be done with the burners on low. lighting hole on the right side of the barbecue body and place near rightmost For best results, place the food you wish to burner porthole.
  • Page 20: Drip Tray

    rotate freely without interference from any reduced if very fatty foods or cheap meat barbecue surfaces. Any loose sections of products are being cooked. Failure to do this meat should be secured so they do not may result in a fat fire, which may cause injury hang down and interfere with the rotation of and could seriously damage the barbecue.
  • Page 21 If rust appears between uses or barbecue covers and other accessories are in storage, clean with a soft brass wire brush. available from your local Outback® stockist. 9.3. Flame Tamer (where supplied) Even when your barbecue is covered for its...
  • Page 22: Technical Specifications

    9.8. Fixings Notes: All screws and bolts, etc. should be checked and tightened on a regular basis. 9.9. Storage Ensure the barbecue is properly cooled before covering or storing. Store your barbecue in a cool dry place. Cover the burners with aluminium foil in order to prevent insects or other debris from collecting in burner holes.
  • Page 23: Ignition Button

    11. Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
