Summary of Contents for Ledj Spectra Par 15Q8

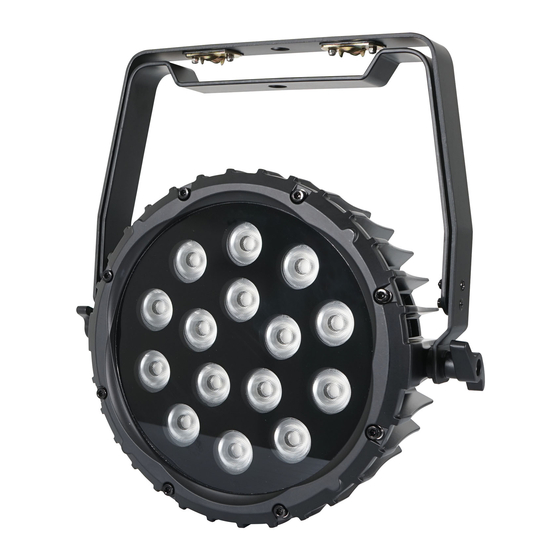

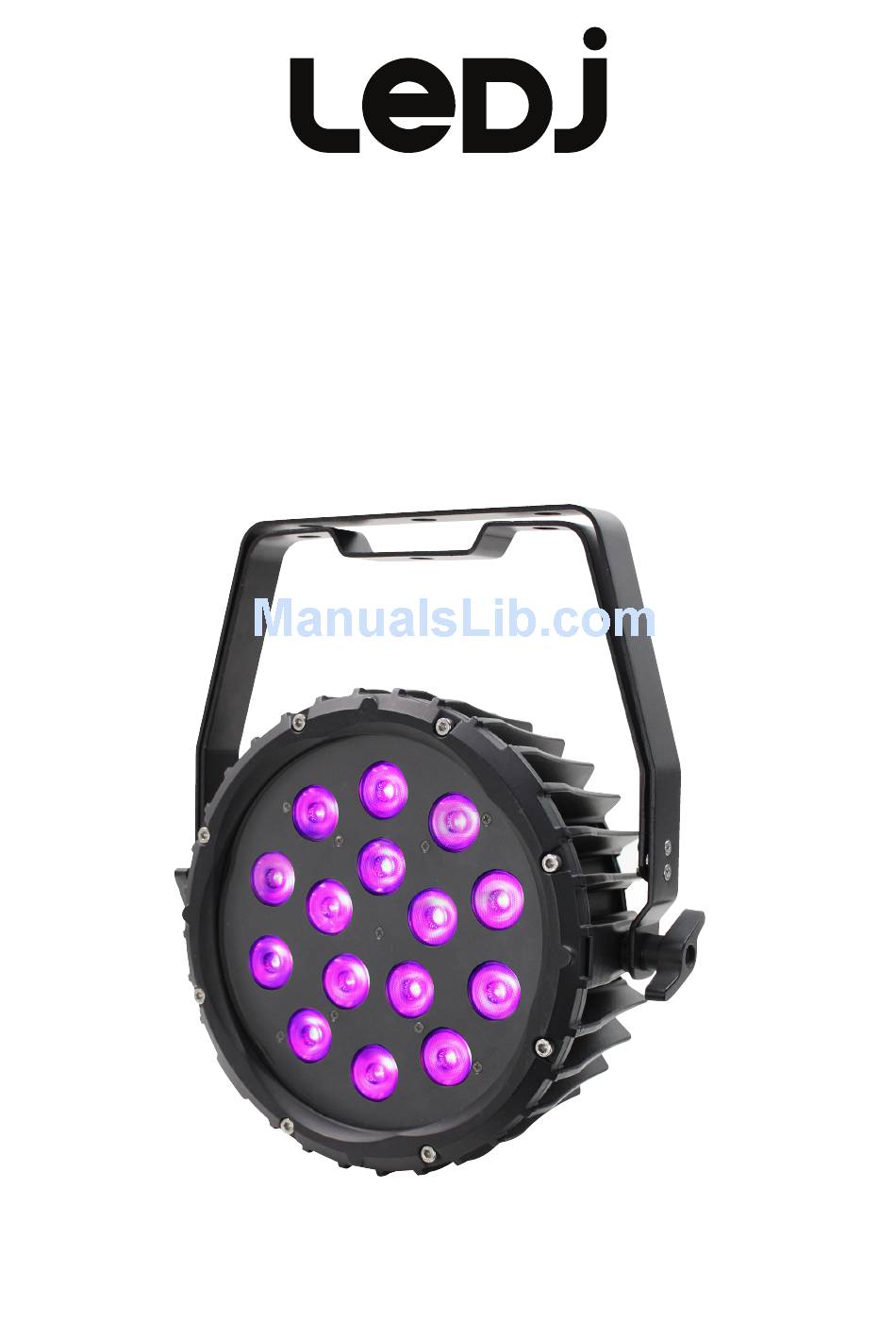

- Page 1 Spectra Par 15Q8 Exterior Fixture User Manual Order code: LEDJ281...
-
Page 2: Safety Advice
• Always disconnect the power from the mains when product must be installed by a qualified technician in equipment is not in use or before cleaning! Only handle accordance with local territory regulations. The safety of the power-cable by the plug. Never pull out the plug by the installation is the responsibility of the installer. The pulling the power-cable. fixture presents risks of severe injury or death due to fire • Make sure that the available mains supply voltage is hazards, electric shock and falls. between 100~240V AC, 50/60Hz. • Warning! Risk Group 2 LED product according to • Make sure that the power cable is never crimped or EN 62471. Do not view the light output with optical damaged. Check the equipment and the power cable instruments or any device that may concentrate the beam. periodically. • WARRANTY: One year from date of purchase. • If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Spectra Par 15Q8 User Manual... - Page 3 FULL ON 15800 3960 1760 3140 6720 1675 6120 1530 28° www.prolight.co.uk 295mm 170mm 01 - Bracket 07 - IP rated power input 02 - Bracket tightening 08 - IP rated power ouput knobs 03 - LED display In the box: 1 x fixture, 04 - Function buttons 1 x power cable & 05 - IP rated DMX input 1 x user manual 06 - IP rated DMX ouput www.prolight.co.uk Spectra Par 15Q8 User Manual...
-
Page 4: Operating Instructions
054-080 Program 3 171-189 use CH7 for static 081-107 Program 4 190-208 RW colours. 108-134 Program 5 209-227 GW 135-161 Program 6 228-246 BW When 027-255 162-188 Program 7 247-255 RGBW use CH7 189-215 Program 8 000-255 Strobe (slow-fast) for speed 216-242 Program 9 (slow-fast) 243-255 Program 10 www.prolight.co.uk Spectra Par 15Q8 User Manual... -
Page 5: Master/Slave Mode
Pr.05 4 colour change Pr.10 White continous fade 4. - -g - Green 11. - gu - Pastel green 5. - gb - Cyan 12. - bug - Pastel blue 6. - -b - Blue 13. - on - RGBW Master/slave mode: To set the master unit, press the “MODE” button on the rear of the master unit then select your desired program (sound active, auto, static colour or one of the built-in programs). To set the other units in slave SLAU mode, press the “MODE” button on the rear of the unit to show on the LED display and press the “ENTER” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MODE” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. www.prolight.co.uk Spectra Par 15Q8 User Manual... - Page 6 0 00~r. 2 55 Red g. 0 00~g. 2 55 Green b. 0 00~b. 2 55 Blue u. 0 00~u. 2 55 White Auto mode AUTO Slave mode SLAV DMX mode 4CH, 6CH, 8CH Address setting d. 0 01~d. 5 12 Fixture hours LifE www.prolight.co.uk Spectra Par 15Q8 User Manual...
-
Page 7: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: LEDJ 1m Interior - LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior Exterior DMX cable DMX cable DMX cable DMX cable DMX cable Order code: LEDJ91 Order code: LEDJ141 Order code: LEDJ142 Order code: LEDJ143 Order code: LEDJ144 LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior LEDJ Spectra Series Power cable Power cable Power cable Power cable End Cap Set Order code: LEDJ146 Order code: LEDJ147 Order code: LEDJ148 Order code: LEDJ149 Order code: LEDJ93 www.prolight.co.uk Spectra Par 15Q8 User Manual... -
Page 8: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Par 15Q8 User Manual... -
Page 9: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Par 15Q8 User Manual... - Page 10 Spectra Par 15Q8 User Manual...
- Page 11 Spectra Par 15Q8 User Manual...
- Page 12 Spectra Par 15Q8 User Manual...
