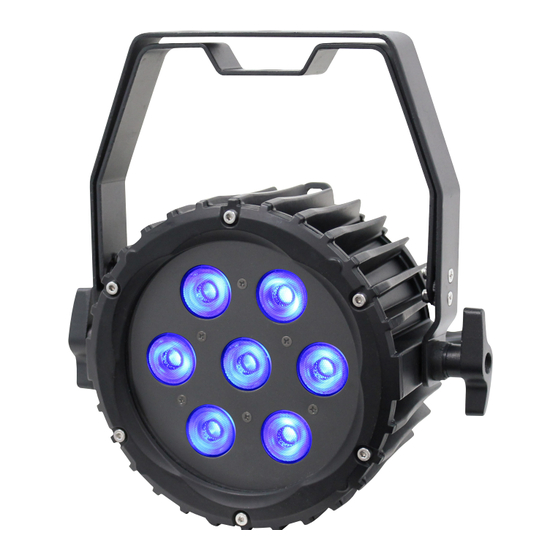

- Page 1 Spectra Par 7Q8 Exterior Fixture User Manual Order code: LEDJ285...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •... - Page 3 Product overview & technical specifications Spectra Par 7Q8 IP65 The exterior Spectra Par 7Q8 features 7 x 8W quad-colour LEDs, delivering a smooth wash of colour, ranging from intense, rich saturated hues through to pastel shades. Controllable via the onboard 4 button LED menu system for auto, static colour or master/slave modes, with the option of DMX control for larger installations.
- Page 4 Operating instructions IMPORTANT! PLEASE NOTE: The LED display for this fixture has a menu locking function where after 30 seconds of inactivity it will lock. To unlock the menu hold the “MODE” and “DOWN” buttons for 3 seconds. DMX channel mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show.
-
Page 5: Master/Slave Mode
Operating instructions Built-in program mode: Pr. 0 1 To access the built-in program mode press “MODE” until the display shows on the LED display. Pr. 0 1 Pr. 1 0 Use the “UP” and “DOWN” buttons to select a program from . - Page 6 Operating instructions RGBW colour mix mode: CoLr To access the static colour mode press “MODE” until shows on the LED display. Now press the “SETUP” button and use the “UP” and “DOWN” buttons to select the brightness r. 0 00 r.
-
Page 7: Dmx Setup
This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: LEDJ 1m Interior - LEDJ 1m Exterior LEDJ 2m Exterior... -
Page 8: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used,... -
Page 9: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. - Page 10 www.prolight.co.uk Spectra Par 7Q8 User Manual...
