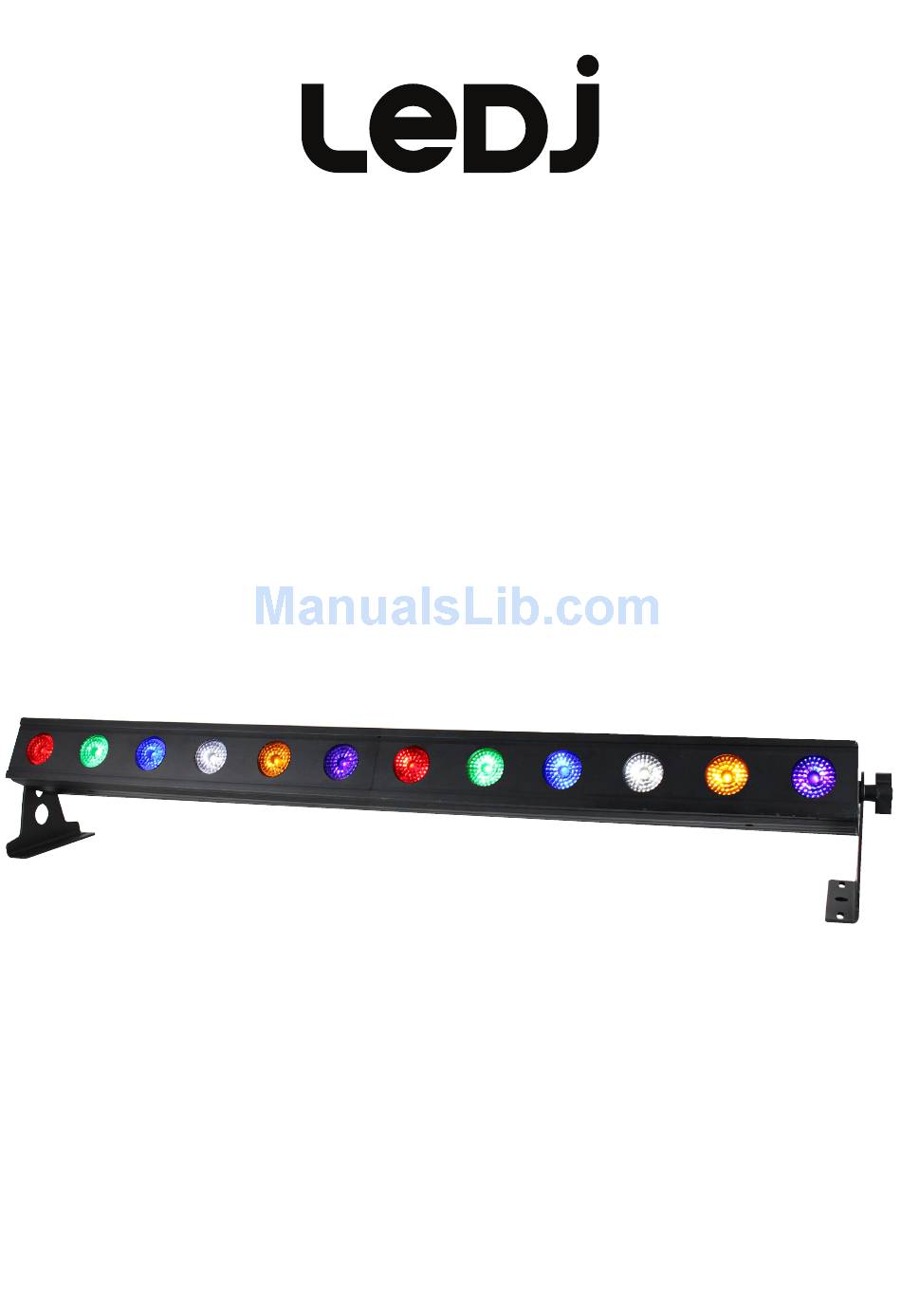

Pixel Storm 12
HEX Batten
User Manual
Order code: LEDJ294

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pixel Storm 12 HEX Batten and is the answer not in the manual?

Questions and answers

Related Manuals for Ledj Pixel Storm 12 HEX Batten

Summary of Contents for Ledj Pixel Storm 12 HEX Batten

  • Page 1 Pixel Storm 12 HEX Batten User Manual Order code: LEDJ294...

  • Page 2: Safety Advice

    • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 3 Dimensions 155 x 1035 x 145mm floor standing applications Weight 6.6kg • Supplied eyebrow for uplighting situations to Order code LEDJ294 reduce the glare and hide the LEDs • 4 push button menu with LCD display • PowerCON input/output 40° - Lux FULL ON 13500 3381 1500 • 3-Pin XLR input/output 2780 • 5-Pin XLR input/output 4400 1100 • Temperature controlled fan cooled 4800 1199 for whisper quiet operation 2600 40° 1035mm 145mm www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...

  • Page 4: Technical Specifications

    POWER CONSUMPTION: 150W POWER CONSUMPTION: 150W 01 - LCD display 02 - Function buttons 08 - PowerCON input 03 - Microphone 09 - PowerCON output In the box: 1 x fixture, 04 - 5-Pin DMX input 10 - Fuse F3A 250V 1 x eyebrow, 05 - 5-Pin DMX output 11 - Safety eyes 1 x power cable 06 - 3-Pin DMX input 12 - Hanging brackets & 1 x user manual 07 - 3-Pin DMX output 13 - Hanging bracket adjustable knobs www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 5 Eyebrow installation Eyebrow installation: The fixture is supplied with an eyebrow for uplighting situations to reduce the glare and hide the LEDs. See below for installation instructions. 1) The eyebrow can be installed in the grooves 2) Insert one end of the eyebrow into the on either side of the batten. chosen groove. 3) Carefully slide the eyebrow through 4) Once the holes are lined up insert the the groove until the cutout holes for the thumbscrew on either end of the batten thumbscrews line up with the threaded holes. and turn clockwise to tighten. www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...

  • Page 6: Operating Instructions

    Built-in Programs 000-255 Green 000-255 Colour Mix Mode Blue 000-255 ColoMode White 000-255 Amber 000-255 000-255 ColMacro Colour01-Colour64 Colour Macros MastDim 000-255 Master Dimmer Invert Direction Invert Sound Mode (This takes priority Sound over the program speed when on) Sense 001-100 (80) Sound Sensitivity Setting BlackOut DMXFail Hold DMX Fail Setting Program www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 7 5 channel mode: 6 channel mode: Channel Value Function Channel Value Function 000-255 Red (0-100%) 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-255 White (0-100%) 000-255 Amber (0-100%) 000-255 Amber (0-100%) 000-255 UV (0-100%) www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 8 Channel Value Function 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-255 Amber (0-100%) 000-255 UV (0-100%) 000-031 Blackout 032-063 Open 064-095 Strobe (slow-fast) 096-127 Open 128-159 Pulse strobe (slow-fast) 160-191 Open 192-223 Random strobe (slow-fast) 224-255 Open 000-255 Master dimmer (0-100%) www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 9 101-104 Colour Macro 26 032-063 Open 105-108 Colour Macro 27 064-095 Strobe (slow-fast) 109-112 Colour Macro 28 096-127 Open 113-116 Colour Macro 29 128-159 Pulse strobe (slow-fast) 117-120 Colour Macro 30 160-191 Open 121-124 Colour Macro 31 192-223 Random strobe (slow-fast) 125-128 Colour Macro 32 224-255 Open 129-132 Colour Macro 33 000-255 Master dimmer (0-100%) www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 10 190-196 Program 27 071-077 Program 10 197-203 Program 28 078-084 Program 11 204-210 Program 29 085-091 Program 12 211-217 Program 30 092-098 Program 13 218-224 Program 31 099-105 Program 14 225-231 Program 32 106-112 Program 15 232-255 Sound active 113-119 Program 16 000-255 Program speed (slow-fast) 120-126 Program 17 www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 11 (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) CH64 CH65 CH66 CH67 CH68 CH69 CH70 CH71 CH72 White 11 Amber 11 UV 11 Red 12 Green 12 Blue 12 White 12 Amber 12 UV 12 (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 12 000-255 UV 12 (0-100%) 000-255 Blue 6 (0-100%) No function 000-255 White 6 (0-100%) 001-004 Colour Macro 1 000-255 Amber 6 (0-100%) 005-008 Colour Macro 2 000-255 UV 6 (0-100%) 009-012 Colour Macro 3 000-255 Red 7 (0-100%) 013-016 Colour Macro 4 000-255 Green 7 (0-100%) 017-020 Colour Macro 5 000-255 Blue 7 (0-100%) 021-024 Colour Macro 6 000-255 White 7 (0-100%) 025-028 Colour Macro 7 www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 13 153-156 Colour Macro 38 022-028 Program 3 157-160 Colour Macro 40 029-035 Program 4 161-164 Colour Macro 41 036-042 Program 5 165-168 Colour Macro 42 043-049 Program 6 169-172 Colour Macro 43 050-056 Program 7 173-176 Colour Macro 44 057-063 Program 8 177-180 Colour Macro 45 064-070 Program 9 181-184 Colour Macro 46 071-077 Program 10 www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 14 134-140 Program 19 141-147 Program 20 148-154 Program 21 76 cont. 155-161 Program 22 162-168 Program 23 169-175 Program 24 176-182 Program 25 183-189 Program 26 190-196 Program 27 197-203 Program 28 204-210 Program 29 211-217 Program 30 218-224 Program 31 225-231 Program 32 232-255 Sound active 000-255 Program speed (slow-fast) www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...

  • Page 15: Dmx Setup

    DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 16 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...

  • Page 17: Weee Notice

    Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Pixel Storm 12 HEX Batten User Manual...
  • Page 18 Pixel Storm 12 HEX Batten User Manual...
  • Page 19 Pixel Storm 12 HEX Batten User Manual...
  • Page 20 Pixel Storm 12 HEX Batten User Manual...
