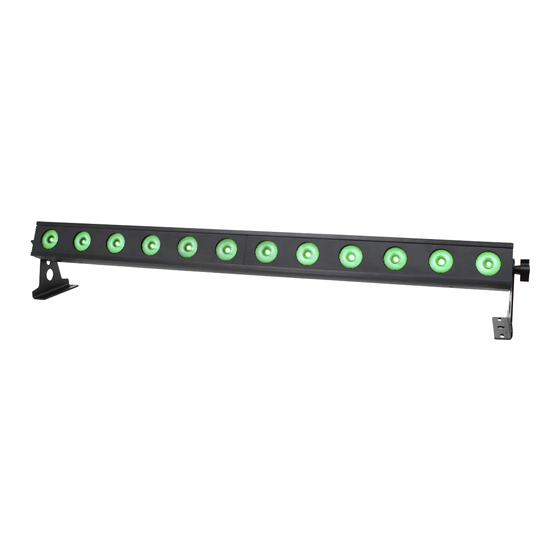

Pixel Storm 12
Quad Batten MKII
User Manual
Order code: LEDJ293

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pixel Storm 12 Quad Batten MKII and is the answer not in the manual?

Questions and answers

Related Manuals for Ledj Pixel Storm 12 Quad Batten MKII

Summary of Contents for Ledj Pixel Storm 12 Quad Batten MKII

  • Page 1 Pixel Storm 12 Quad Batten MKII User Manual Order code: LEDJ293...

  • Page 2: Safety Advice

    • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 3 10° x 45° - Lux allow for multiple rigging and FULL ON 15400 3851 1710 floor standing applications 2280 91.4 3400 • Supplied eyebrow for uplighting situations to 56.9 20.5 reduce the glare and hide the LEDs 7800 1948 • 4 push button menu with LCD display • PowerCON input/output 10° x 45° • 3-Pin XLR input/output • 5-Pin XLR input/output • Temperature controlled fan cooled for whisper quiet operation 1035mm 145mm www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...

  • Page 4: Technical Specifications

    POWER CONSUMPTION: 180W 01 - LCD display 02 - Function buttons 08 - PowerCON input 03 - Microphone 09 - PowerCON output In the box: 1 x fixture, 04 - 5-Pin DMX input 10 - Fuse F3A 250V 1 x eyebrow, 05 - 5-Pin DMX output 11 - Safety eyes 1 x power cable 06 - 3-Pin DMX input 12 - Hanging brackets & 1 x user manual 07 - 3-Pin DMX output 13 - Hanging bracket adjustable knobs www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 5 Eyebrow installation Eyebrow installation: The fixture is supplied with an eyebrow for uplighting situations to reduce the glare and hide the LEDs. See below for installation instructions. 1) The eyebrow can be installed in the grooves 2) Insert one end of the eyebrow into the on either side of the batten. chosen groove. 3) Carefully slide the eyebrow through 4) Once the holes are lined up insert the the groove until the cutout holes for the thumbscrew on either end of the batten thumbscrews line up with the threaded holes. and turn clockwise to tighten. www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 6 ColoMode Colour Mix Mode Blue 000-255 White 000-255 ColMacro Colour01-Colour64 Colour Macros MastDim 000-255 Master Dimmer Invert Direction Invert Sound Mode (This takes priority Sound over the program speed when on) Sense 0-100 (80) Sound Sensitivity Setting Blackout Hold DMXFail DMX Fail Setting Program Linear Square DimCurve Dimming Curve Settings Insquare S-curve www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 7 6 channel mode: Channel Value Function 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-031 Blackout 032-063 No function 064-095 Strobe (slow-fast) 096-127 No function 128-159 Pulse strobe (slow-fast) 160-191 No function 192-223 Random strobe (slow-fast) 224-255 No function 000-255 Master dimmer (0-100% www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 8 109-112 Colour Macro 28 096-127 No function 113-116 Colour Macro 29 128-159 Pulse strobe (slow-fast) 117-120 Colour Macro 30 160-191 No function 121-124 Colour Macro 31 192-223 Random strobe (slow-fast) 125-128 Colour Macro 32 224-255 No function 129-132 Colour Macro 33 000-255 Master dimmer (0-100%) 133-136 Colour Macro 34 No function 137-140 Colour Macro 35 001-255 Colour temperature 3600K-7200K www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 9 CH42 CH43 CH44 CH45 Red 10 Green 10 Blue 10 White 10 Red 11 Green 11 Blue 11 White 11 Red 12 (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) (0-100%) CH46 CH47 CH48 Green 12 Blue 12 White 12 (0-100%) (0-100%) (0-100%) www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 10 000-255 Red 9 (0-100%) 073-076 Colour Macro 19 000-255 Green 9 (0-100%) 077-080 Colour Macro 20 000-255 Blue 9 (0-100%) 081-084 Colour Macro 21 000-255 White 9 (0-100%) 085-088 Colour Macro 22 000-255 Red 10 (0-100%) 089-092 Colour Macro 23 000-255 Green 10 (0-100%) 093-096 Colour Macro 24 000-255 Blue 10 (0-100%) 097-100 Colour Macro 25 000-255 White 10 (0-100%) 101-104 Colour Macro 26 www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 11 225-228 Colour Macro 57 134-140 Program 19 229-232 Colour Macro 58 141-147 Program 20 233-236 Colour Macro 59 148-154 Program 21 237-240 Colour Macro 60 155-161 Program 22 241-244 Colour Macro 61 162-168 Program 23 245-248 Colour Macro 62 169-175 Program 24 249-252 Colour Macro 63 176-182 Program 25 253-255 Colour Macro 64 183-189 Program 26 www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 12 Operating instructions 54 channel mode cont.: Channel Value Function 190-196 Program 27 197-203 Program 28 204-210 Program 29 53 cont. 211-217 Program 30 218-224 Program 31 225-231 Program 32 232-255 Sound active 000-255 Program speed (slow-fast) www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...

  • Page 13: Dmx Setup

    DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 14 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...

  • Page 15: Weee Notice

    Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 16 Pixel Storm 12 Quad Batten MKII User Manual...
  • Page 17 Pixel Storm 12 Quad Batten MKII User Manual...
