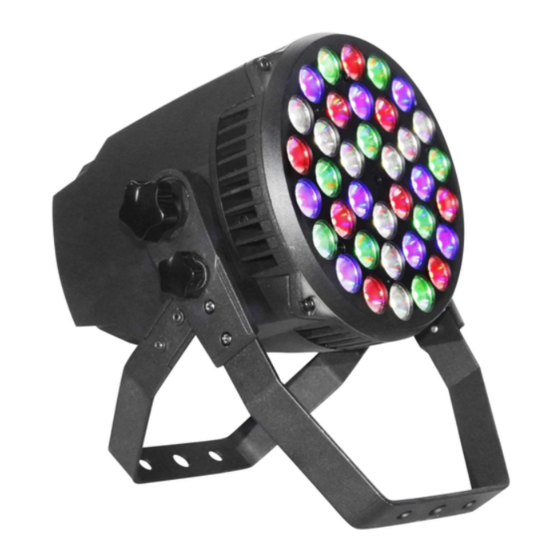

XPar 336-W
PR-8951
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPar 336-W and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting XPar 336-W

Summary of Contents for PR Lighting XPar 336-W

  • Page 1 XPar 336-W PR-8951 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR CONTROL SYSTEM AND POWER CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU DMX PROTOCOL INDICATION OF LED DISPLAY MAINTENANCE TROUBLESHOOTING TECHNICAL DATA ELECTRICAL DIAGRAM COMPONENT ORDER CODES Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice.

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton, check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector can be used indoors and outdoors, IP20.

  • Page 4: Installing The Projector

    Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The XPar 336-W accepts digital control signals in protocol DMX512 (1990).

  • Page 5: Dmx Terminator

    All of the connections are as the figure below. Power IN Power IN Power IN DMX Controller DMX OUT DMX OUT DMX IN DMX IN XLR terminator DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals.

  • Page 6: To Set The Dmx Start Address

    Press button UP or DOWN if you want to browse through the various Setup Options. Press button ENTER to save your settings or enter the next menu. Press button UP or DOWN to change values(add or subtract) Press button FUNC, it will return to the upper menu one by one or browse through the main menu. TO SET THE DMX START ADDRESS Each Xpar336-W must be given a DMX start address so that the correct projector responds to the correct control signals.

  • Page 7: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL AddR （XXX:1~512） (DMX address) (Standard mode) (DMX mode) (Extended mode) dISP (Shut off digital CRT (Display settings) without pressing CNFG buttons in 5 minutes) (Config settings) SLAV mORS (Slave) mAST (Master /Slave Settings) (Master) FACT (Reset factory setup)

  • Page 8: Dmx Protocol

    DMX PROTOCOL Standard Extended FUNCTION DESCRIPTION mode mode Dimmer 000-255 Linear Dimming from dark to light Dimmer Fine 000-255 Dimmer in 16 Bit precision White 000-255 Linear adjustment from dark to light White Fine 000-255 White in 16 Bit precision Amber 000-255 Linear adjustment from dark to light...

  • Page 9: Maintenance

    INDICATION OF LED CHARACTER DMX signal OK Decimal point of the first character No DMX signal Master / slave signal is OK Decimal point of the third character No master / slave signal When setting master mode Decimal point of the fourth character When setting slave mode Parameters that LED characters display Flash...

  • Page 10: Technical Data

    TECHNICAL DATA VOLTAGES: 100~240V AC, 50/60Hz POWER CONSUMPTION: 120W@220V LED: Power consumption 36 （27W+9A） ） Quantity Manufacturers Rated LED Life 50000 Hours COLOURS: White+ Amber DIMMER: 0-100% linearly adjustable STROBE: 1~25F.P.S LIGHT ANGLE Light Spot Angle( 1/10 Maximum) θ 26° Beam Angle(1/2 Maximum) θ...
  • Page 11 WORK ENVIRONMENT TEMPERATURE: -20°C~40°C WEIGHT: 2.3kg SIZES: LIGHT OUTPUT: 2086 26.2 °lux （ W A) 1873 26.2 °lux （ W) 26.2 °lux （ A) Distance( m ) 26.2 ° Diameter( m ) 2.31 4.62 6.93 9.24 11.55 13.86 11/14...
  • Page 12 12/14...

  • Page 13: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 070070047 LED LENS 15° 230090002 SIGNAL CABLE 3meters 190010118 150W58V POWER SUPPLY DRIVER BOARD 230060134 230060138 LED CONTROL BOARD 230020286 LED LAMP BOARD 13/14...
  • Page 14 PR LIGHTING LTD. PR New Hi-tech Science Park, 1582 Xingye Avenue Nancun Panyu, Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020093 Version: 20120717 14/14...
