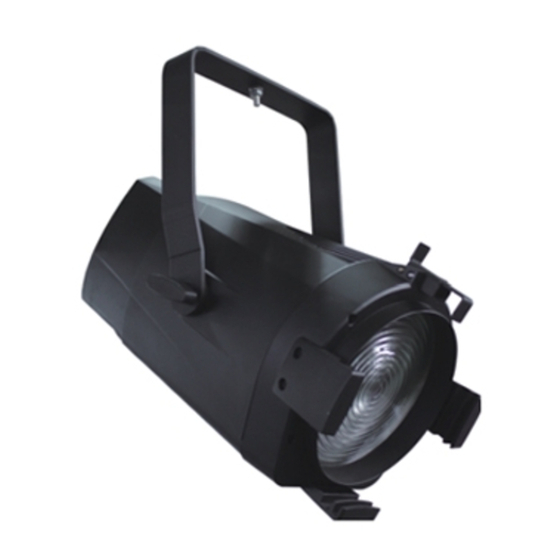

- Page 1 LED Studio 3200T LED Studio 3200D This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD.
-
Page 2: Table Of Contents
INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR CONTROL CONNECTION DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS TIMING SETUP FOR THE PROJECTOR OPERATION MENU DMX PROTOCOL INDICATION OF LED DIGITAL TUBE MAINTENANCE TROUBLESHOOTING TECHNICAL DATA ELECTRICAL DIAGRAM COMPONENT ORDER CODES Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without... -
Page 3: Safe Usage Of The Projector
SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton, check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector can be used indoors and outdoors, IP20. -
Page 4: Control Connection
INSTALL THE PROJECTOR The unit was designed to make installation easy: The fixture’s head can be rotated within 240°manually, before it rotates, two side retainers are loosened with care; after the head at a desired angle, tighten two side retainers.. Take 1 clamps and 1 safety cord out from the package and mount 1 clamps on the handle of fixture with 1 retainer attached to the clamp. -
Page 5: Dmx Terminator
Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Please use the projector’s cannon 5- pin signal input and output cables as connection. The 5-pin signal connections are connected as shown in the figure above. Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. -
Page 6: Setup Options-Projector Configuration
SETUP OPTIONS-PROJECTOR CONFIGURATION Projector configuration can be set conveniently via push-button switch and LED display. Launch the projector and press button ENTER for more than 3 seconds to unlock the panel, the LED will show the function menu of the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the “OPERATION MENU”... -
Page 7: Timing Setup For The Projector
TIMING SETUP FOR THE PROJECTOR After the fixture is powered on after FUNC ，DOWN，ENTER buttons pressed together, the first digit of the digital display is flashing”0” , which means hour counting is cleared and becomes zero and hour counting is ready. After a fixture is re-powered on , hour counting starts to work. -
Page 8: Dmx Protocol
DMX PROTOCOL CHANNEL FUNCTION DESCRIPTION Dimmer 000-255 Dimming from dark to light 8/14... -
Page 9: Indication Of Led Digital Tube
INDICATION OF LED DIGITAL TUBE DMX signal OK Decimal point of the first digital tube No DMX signal “0” chase mode DMX signal OK The first digital “0” flash mode No DMX signal Parameters that LED digital tubes Parameters not saved, press “ENTER” to save Flash display them... -
Page 10: Technical Data
TECHNICAL DATA VOLTAGES: 100~240V AC, 50/60Hz POWER CONSUMPTION: 120W@220V LED: Power consumption 200W Quantity Manufacturers Rated LED Life More than 30000 Hours COLOUR TEMPERATURE: PR-3200T 3000K PR-3200D 5000K DIMMER: 0-100% linearly adjustable BEAM ANGLE: Spot Light Field angle(one-tenth-peak) θ 29° Soft light Field angle(one-tenth-peak) θ... - Page 11 SIZES: LIGHT OUTPUT: 29° LUX 1716 97° LUX 29° 97° DISTANCE(m) 19.4 29.1 38.8 48.5 58.2 97°DIAMETER(m) 10.6 12.7 29°DIAMETER(m) 11/14...
- Page 12 12/14...
-
Page 13: Component Order Codes
COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 230090003 SIGNAL CABLE 120080070 1.5m POWER CORD 192010150 POWER SUPPLY 230020459 LED CONTROL BOARD 150020229 PR-3200T LED LAMP 150020236 PR-3200D LED LAMP 070050080 DIN15560 FRESNEL LENS 030060085 ￠135X25 13/14... - Page 14 PR LIGHTING LTD. PR New Hi-tech Science Park, 1582 Xingye Avenue Nancun Panyu, Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020066A Version: 20131015 14/14...
