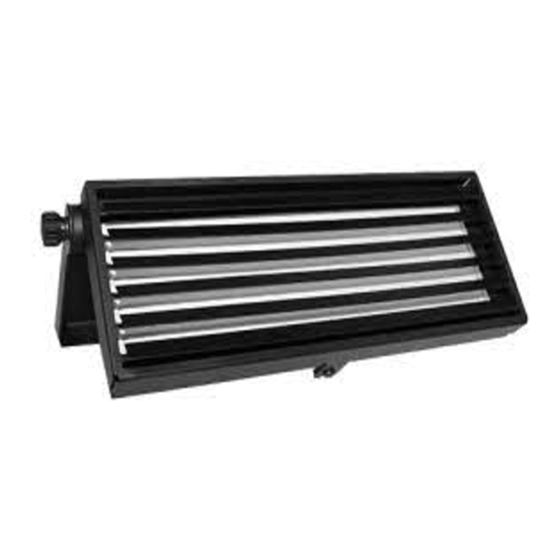

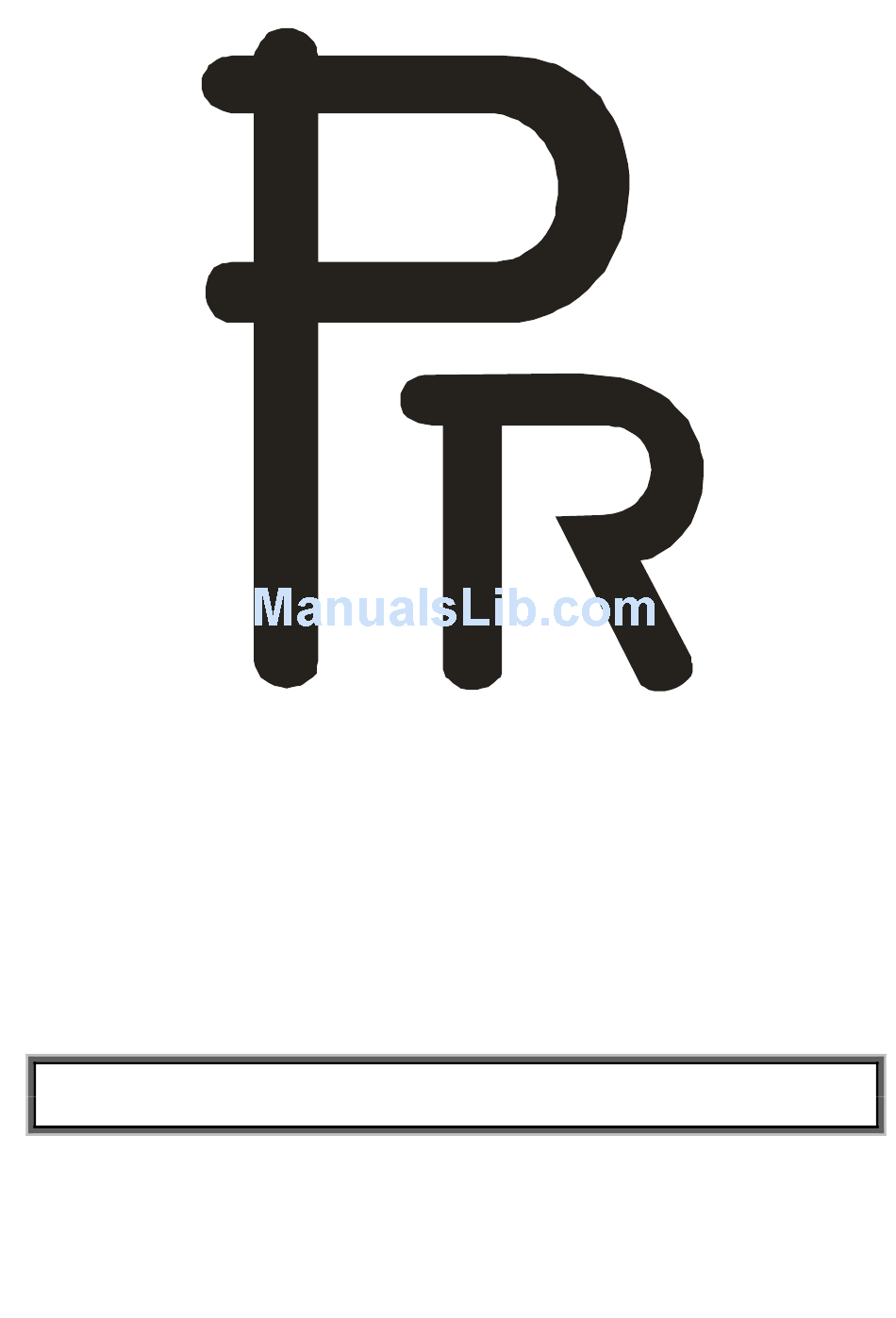

- Page 1 LED STUDIO 3605 PR-3605T PR-3605D This product manual contains important information about the safe installation and its use. Please read and follow these instructions carefully and keep user’s manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
- Page 2 INDEX SAFETY AND WARNING PRODUCT’S STRUCTURE AND INSTALLATION MAINTENANCE TROUBLESHOOTING GRILLE COVER TECHNICAL DATA MEASUREMENTS COMPONENTS’ ORDER CODES BACK COVER Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. Whilst every care is taken in the preparation of user’s manual we reserve the right to change specifications in the course of product improvement.
- Page 3 SAFETY AND WARNING When unpacking and before disposal of the carton, ensure there is no transportation damage before using the product. Should there be any damages caused by transportation, consult your dealer and do not use it. ONLY can the product be used indoors, IP20.Keep it in dry place, avoid use in damp, excessively hot and dusty environment and contact with water or other liquids.
- Page 4 INSTALL THE PROJECTOR How to use: The product is mobile lighting device. Use on flat surface, not fit for use in high place. The product can be manually rotated with angle from 0 degree of 90 degrees. Plastic head screws at both ends and rotate it till the angle desired, then tighten the two screws.
- Page 5 MAINTENANCE To prolong the life of the product it is very important to do maintenance work. I f the product is idle for a long time, damp, smoke or particularly dirty around can cause great accumulation of dirt on its cover and housing. So it should be cleaned to maintain an optimum light output and at the same time kept from being corrupted by acid gas.
- Page 6 TECHNICAL DATA POWER ADAPTOR: Input voltage: 100V-240V AC, 50/60Hz Output voltage: 12V DC POWER CONSUMPTION: 8W@220V LED: Power consumption Quantity One light board with 24pcs bulbs Manufacturers Rated LED Life More than 30000 Hours COLOUR TEMPERATURE: PR-3605T 3200K PR-3605D 5600K Ra>93 LIGHT OUPUT: 200 lm...
- Page 7 MEASUREMENTS COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 192010158 12V 0~1A POWER ADAPTOR LED PANEL (PR-3605T) 150020264 CT3200K LED PANEL (PR-3605D) 150020265 CT5600K...
- Page 8 PR LIGHTING LTD. PR New Hi-tech Science Park, 1582 Xingye Avenue Nancun Panyu, Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020168 Version: 20130514...
