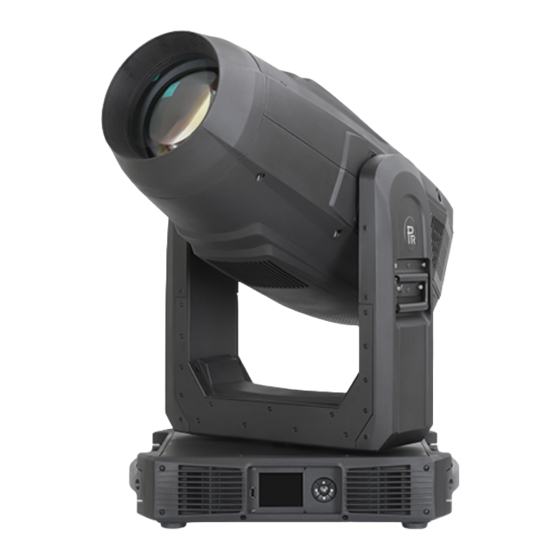

- Page 1 XRLED 3000-W Framing PR-8137 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD.
-
Page 2: Table Of Contents
Any future technical changes are not subject to further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty. -
Page 3: Safety And Warnings
1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Goggles Protective High Warning Flames Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector. -
Page 4: Instructions
While being operated, the projector should not be under rains or in humidity. ● Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other ● electrical parts’ life will be shortened . There are safety cord holes at the bottom of the base of a projector. -
Page 5: Appearance
LUBRICATION ● To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and focus lens be lubricated every 2 months. High quality and high temperature lubricant/grease is advised.. TROUBLESHOOTING ●... - Page 6 CLAMP SAFETY WARMING CORD Please run safety cord through the safety hole circled in the diagram for safety Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp.
- Page 7 Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.
-
Page 8: Setup And Configuration
SETUP AND CONFIGURATION FRONT PANEL OPERATION ● The configuration and start address can be set conveniently via push button and color touch screen. To view or change its setup, touch any white area of the screen or push the key OK for more than 3 seconds to unlock the ►... -
Page 9: Operation Menu
Select DMX control Mode---- Wireless First (Note: Do not select XLR ONLY). The DMX wireless control function is activated. Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press “Enter”... - Page 10 Gobo Reset Really Reset? Confirm/ Cancel Zo.Fo.Fr.Pr. Reset Really Reset? Confirm/ Cancel Other Reset Really Reset? Confirm/ Cancel Short Mode 41CH Standard Mode 46CH DMX Channel Mode Extended Mode 61CH Strobe View Selected Mode ….. XLR Only XLR First Wireless Only Wireless First Wireless In/XLR Out Signal Select...
- Page 11 Driver Board 4 XX℃/F Blade Board XX℃/F Fan Board XX℃/F LED XX℃/F LED Sensor XX℃/F Sys= XXX Display Board Boot =XXX Sys= XXX Pan and Tilt Board Boot =XXX Sys= XXX Driver Board 1 Boot =XXX Sys= XXX Driver Board 2 Boot =XXX Software Version Sys= XXX...
-
Page 12: Dmx Protocol
7. DMX PROTOCOL Short Standard Extended Decimal Decimal Function Description mode mode mode High Strobe Close Pulse strobe speed from slow to fast Strobe speed slow to fast Dimmer Close Dimmer from dark to light (0-100%) Dimmer Fine Fine dimmer CYM Macro The following functions will disable CMY ,CTO, and Color Wheels1 and Color Wheel2... - Page 13 Colour Macro 28 Colour Macro 29 Colour Macro 30 Colour Macro 31 Colour Macro 32 Colour Macro 33 Colour Macro 34 Colour Macro 35 Colour Macro 36 Colour Macro 37 Colour Macro 38 Colour Macro39 Colour Macro 40 Colour Macro 41 Colour Macro 42 Colour Macro 43 Colour Macro 44...
- Page 14 Colour Macro 71 Colour Macro 72 Colour Macro 73 Colour Macro 74 Colour Macro 75 Colour Macro 76 Colour Macro 77 Colour Macro 78 Colour Macro 79 Colour Macro 80 Colour Macro 81 Colour Macro 82 Colour Macro 83 Colour Macro 84 Colour Macro 85 Colour Macro 86 Colour Macro 87...
- Page 15 Colour Wheel 1 Continual positioning index 0-360° positioning White White/Color1(Red) Color1(Red) Color1(Red)/Color 2(Yellow) Color 2(Yellow) Color 2(Yellow)/Color 3(Blue) Color 3(Blue) Color 3(Blue)/ Color 4(Green) Color 4(Green) Color 4(Green) /Color 5(Pink) Color 5(Pink) Color 5（Pink）/Color 6（Orange） Color 6(Orange) Color6(Orange)/ White White Clockwise rainbow effect rotation speed from slow to fast Anti-clockwise rainbow effect rotation speed from slow to fast Color Wheel 1 Fine...
- Page 16 Anti-clockwise rainbow effect rotation speed from slow to fast Color Wheel 2 Fine Color Continual positioning in 16 Bit precision Iris Linear Iris from small to big 0-100% Iris in 16 bit Iris in 16 bit precision Iris Macro Iris Macro disabled Iris Macro1: from big to small with speed from slow to fast Iris Macro2: from small to big with speed from slow to fast Iris Macro3: Iris contracts from slow to fast...
- Page 17 Clockwise rotation from slow to fast Anti-clockwise rotation from slow to fast Gobo1 shake from slow to fast Gobo2 shake from slow to fast Gobo3 shake from slow to fast Gobo4 shake from slow to fast Gobo5 shake from slow to fast Gobo6 shake from slow to fast Rotating gobo wheel rotation Indexing 0-360°...
- Page 18 Framing blade 4 right Framing blade 4 right linearly closing from big to small Framing blade 4right in 16 bit Framing blade 4right fine adjustment Framing module rotation Framing module indexing(0-360degrees) Stop Framing module clockwise rotation from slow to fast Stop Framing module anti-clockwise rotation from slow to fast Framing module rotation in 16 bit...
- Page 19 Focus in 16 precision Zoom Linearly zooming Zoom Fine Zoom in 16 Bit precision Autofocus While channels for Iris, Rotating Gobo Wheel and Rotating Gobo Wheel are in use, the projector has automatic focus function at some distance. Use "Autofocus Calibrations" channel (34/39/54) to focus the image.
- Page 20 Fast speed dimmer Mid speed dimmer Slow speed dimmer Gamma curve 2.0 Gamma curve 2.2 Gamma curve 2.4 Gamma curve 2.6 LED refresh rate 1200Hz LED refresh rate 2400Hz LED refresh rate 4800Hz LED refresh rate 10000Hz LED refresh rate 12000Hz LED refresh rate 1500Hz LED refresh rate 20000Hz LED refresh rate 25000Hz...
-
Page 21: Sings On The Touch Screen
8. SIGNS OF THE TOUCH SCREEN Option Settings Lamp Control Information Chinese/English Service Error Messages Operation Mode Address User Memories Reset Config Settings 9.ERROR MESSAGES The system can detect some errors during the reset, if displayed, touch to view the error. The error messages are as follows: Name Type... -
Page 22: Technical Data
Pan Board Error Check signal wire Tilt Board Error Check signal wire Driver Board 1 Error Check signal wire Driver Board2 Error Check signal wire Driver Board 3 Error Check signal wire Driver Board 3 Error Check signal wire Driver Board 4 Error Check signal wire Framing board... - Page 23 Purple Dark Orange Pink Yellow Light Dark Cyan Pink Light Blue Light Green Yellow Green Color Wheels 1 Color Wheels 2 Linear CTO system(0-100%, 2700K-6500K FRAMING Framing module:4 framing blades to make graphics with different sizes and shapes Each blade to make full curtain effect Continual and bi-directional rotation for the whole module GOBOS 1 rotating gobo wheel: 6 exchangeable+ open...
- Page 24 1#:110010483 2#:110010484 3#:110010485 4#:110010486 5#:110010487 6#:110010488 7#:110010489 Gobo external size: 32mm Image size: 26mm EFFECT WHEEL 1 animation effect wheel, bi-directional rotation with varied speeds IRIS Linear iris 5-100% with macros PRISM 1pc of 4-facet circular prism+1 pc of linear prism, bi-directional rotation with varied speeds with indexing function FROST 2 frost filters: 1 heavy frost filter + 1 light frost filter (0-100% linear ) BEAM ANGLE...
- Page 25 HEAD MOVEMENT Pan 540º , Tilt 270º with auto position correction and 16 bit control CONTROL International standard DMX512 signal and RDM function 41channels in short mode, 46channels in standard mode,61channel in extended mode , sCAN protocol(optional), DMX512 wireless control Art Net protocol CONTROL INTERFACE DMX512 ports（5-pin）...
- Page 26 INSTALLATION DIAGRAM(BOTTOM VIEW) LIGHT OUTPUT...
-
Page 27: Circuit Diagram
54°（lux） 2783 6°（lux） 0 82099 20525 9122 5135 3284 2881 DISTANCE（m） 0m 6°DIAMETER（m） 0.55 1.10 1.64 2.19 2.74 3.29 54°DIAMETER（m） 0 4.83 9.66 14.49 19.31 24.14 28.97 11. CIRCUIT DIAGRAM... -
Page 29: Component Order Codes
COMPONENT ORDER CODES NAME CODE NUMBER REMARK 192010228 192010228 SWITCHING POWER SUPPLY 192010215 192010215 SWITCHING POWER SUPPLY 150020326 150020326 LED LIGHT SOURCE FUSE SEALED IN CERAMIC 270041098 270041098 TUBE 030040262 030040262 PAN MOTOR 030040262 030040262 TILT MOTOR 030040221A 030040221A PRISM IN/OUT MOTOR 030040289 030040289 PRISM ROTATING MOTOR... - Page 30 Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320021055...
