Summary of Contents for PR Lighting JUNIOR JNR-8146C

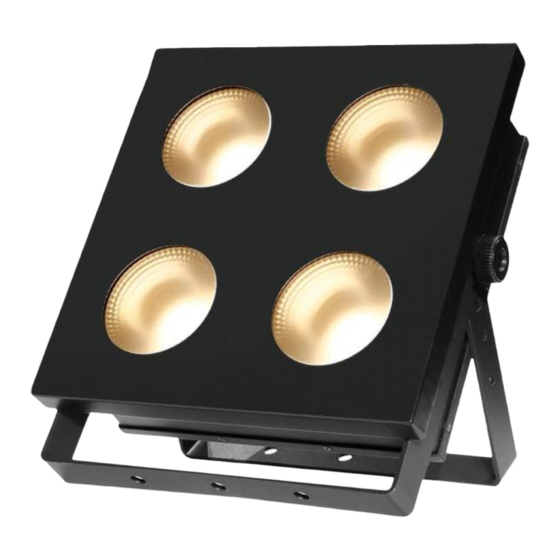

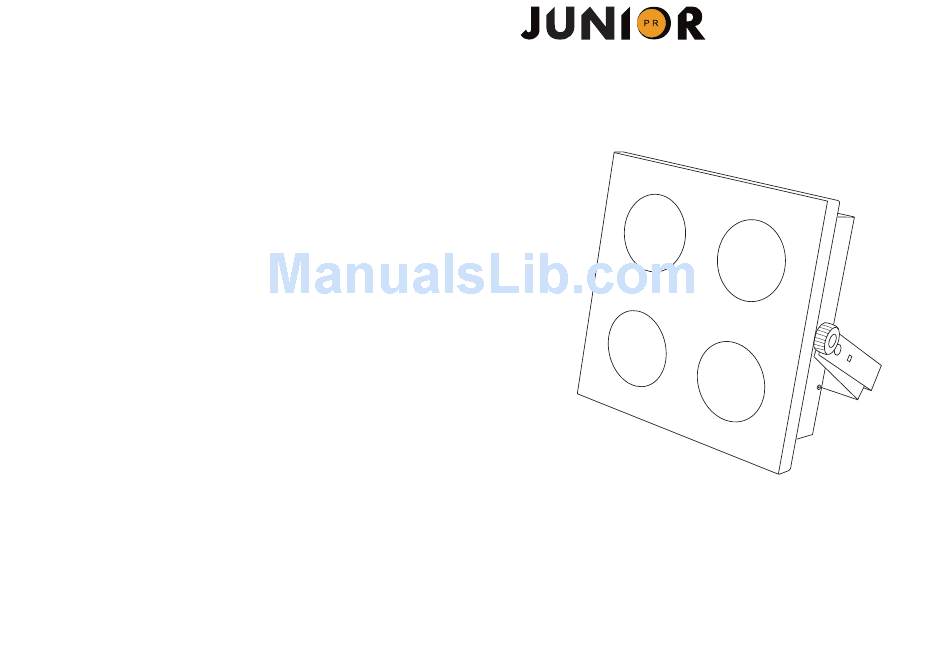

- Page 1 JNR BLINDER 4*100 C PR LIGHTING LTD. JNR-8146C http://www.pr-lighting.com 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888...
-
Page 2: Safety Instructions
MAINTENANCE AND CLEANING SAFETY INSTRUCTIONS The following points have to be considered during the inspection: CAU T I O N 1) All screws for installing the devices or parts of the device have to be tightly Becareful with your operations.With a dangerous voltage you cansuffer a dangerous electric shock when touching wires! connected and must not be corroded. -
Page 3: Dmx Channels
UNPACKING DMX CHANNELS Thank you for choosing our JNR BLINDER 4*100 C . For your own safety, please read 4CH Mode this manual before installing the device. This manual covers the important Channel Function Value Description information on installation and applications. Please install and operate the fixture LED 1 0-255 LED 1 dimmer... -
Page 4: Features And Specifications
FEATURES & SPECIFICATIONS COMMON 1:Ground DMX+ 2:Data(-) Features 3:Data(+) DMX- • 4*100W pure white (5600K) COB LED module DMX512 OUT DMX512 IN DMX Output DMX Input • Individual control for each COB module 3-PIN XLR 3-PIN XLR 3-Pin XLR Socket 3-Pin XLR Socket •... -
Page 5: Dmx-512 Control Connections
Regardless of the rigging option you choose for your JNR BLINDER 4*100 C , always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle. -
Page 6: Installations
from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture OPERATION INSTRUCTIONS is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent ·...
