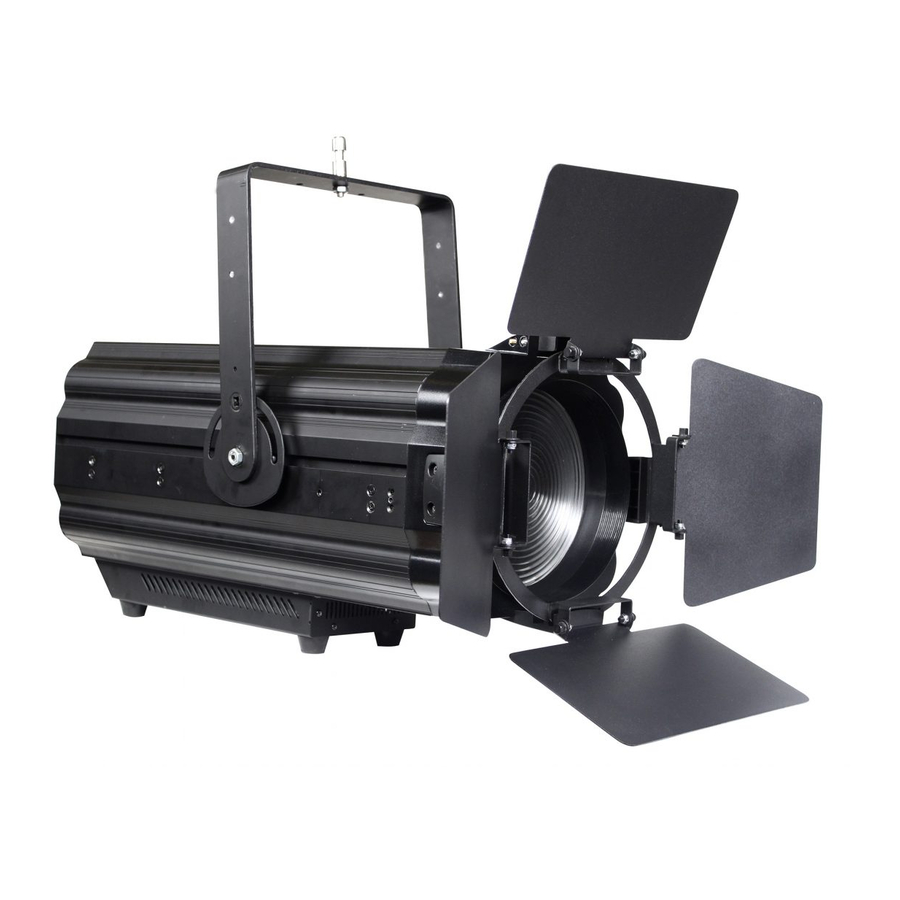

- Page 1 LED Studio 3203D/3203T PR-3203T PR-3203D This product manual contains important information about the safe installation and use of this unit. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
-
Page 2: Table Of Contents
INDEX ACESSORIES ................................. 2 SAFE USAGE OF THE UNIT ............................ 3 INSTALLING THE UNIT ............................4 CONTROL CONNECTION ............................4 DMX TERMINATOR ............................. 5 OPERATION MENU ................................6 DMX PROTOCOL ................................. 6 INDICATION OF LED DIGITAL TUBE ........................... 6 SETUP OPTIONS-UNIT CONFIGURATION .......................... 7 MAINTENANCE ................................... -
Page 3: Safe Usage Of The Unit
SAFE USAGE OF THE UNIT When unpacking and before disposing of the carton, check there is no transportation damage before using the unit. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The unit can be only used indoors, IP20. -
Page 4: Installing The Unit
INSTALL THE UNIT The figures above with a Mounting Bar for the illustrations of the installation is for our clients’ reference and it is not a accessory to be supplied up on delivery . This fixture should be hung upon use, but not hung by its side. The whole fixture can be rotated by hand within the range of 180 degrees. -
Page 5: Dmx Terminator
Connection between the controller and a unit and between one unit and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Please use the unit’s cannon 5- pin signal input and output cables as connection. -
Page 6: Operation Menu
Operations Menu level menu level menu level menu Remarks DMX Address 001 - 512 Setup of DMX Address LED Dimmer Test Config Setup Reference Only, not saved Focus Position Linearly focusing Lcd Light Setup Display shuts off 3 minutes after buttons are not pressed after the exit of menus Language Setup... -
Page 7: Setup Options-Unit Configuration
SETUP OPTIONS-UNIT CONFIGURATION Explanations for Control Panel and Potentiometer After power-on, LCD display displays the company’s LOGO “PR”. After reset, the display is at initial display status showing information about company’s name including LOGO “PR”, fixture’s model and DMX address( if the start address is 001, it displays as “address=001”) and at the same time the display is locked. -
Page 8: Maintenance
desired, then change the parameters after pressing UP or DOWN. At last press ENTER to save it and go back to the upper level menu. 3. Information While the display is locked( initial stage of the display), press the ENTER for more than 3 seconds to unlock it, then press UP or DOWN to find the menu of Information and press ENTER to enter sub-menus. -
Page 9: Technical Data
Manufacturers Rated LED Life 50000 Hours COLOUR TEMPERATURE: PR-3203T: 3200± 250 PR-3203D:5600± 250 Luminous Flux PR-3203D: 14° ：7100 lm，48° : 10700 lm PR-3203T: 14° ：5300 lm，48° : 8300 lm Ra≥93 DIMMER: 0-100% linearly adjustable Zooming Motorized Zooming is available BEAM ANGLE: Field angle(1/10 peak) θ... - Page 10 670x355x520mm SIZES: Light Output Luminous Flux 10 / 12...
-
Page 11: Electrical Diagram
ELECTRICAL DIAGRAM COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 230090003 SIGNAL CABLE 192010182 HLG-320H-48 POWER SWITCH 230060288 DRIVER BOARD 230060290 DIGITAL DISPLAY BOARD 150020278 CT 5600K LED LIGHT SOURCES 150020277 CT 3200K LED LIGHT SOURCES 11 / 12... -
Page 12: Back Cover
PR LIGHTING LTD. PR New Hi-tech Science Park, 1582 Xingye Avenue Nancun Panyu, Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N:320020223 Version: 20140804 12 / 12...
