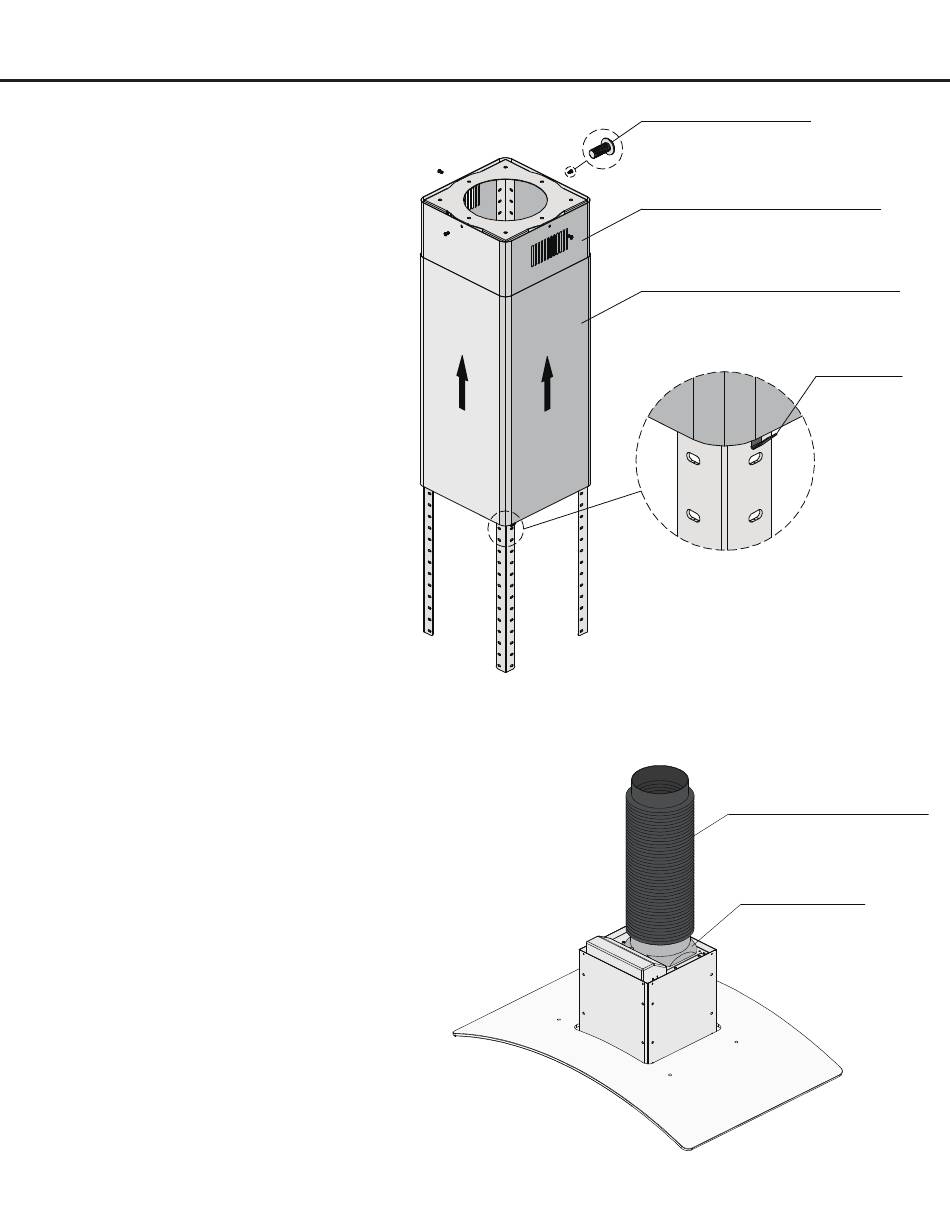

• Fix upper chimney on hanging scaffold.
• Place lower chimney over upper chimney at proper
position.
• Insert hook into bracket to hold lower chimney
temporarily. See Fig. #3.
STEP 8
Venting
• Fix air outlet onto the vent of hood's body, connect
expandable pipe to air outlet. See Fig. #4.
Installation
— 13 —
4 - ST 4 x 8
Upper chimney
Lower chimney
Fig. #3
Expandable pipe
Air outlet
Fig. #4
Hook
