Summary of Contents for Ancona TORNADO ISLAND II 36
-
Page 1: Range Hood

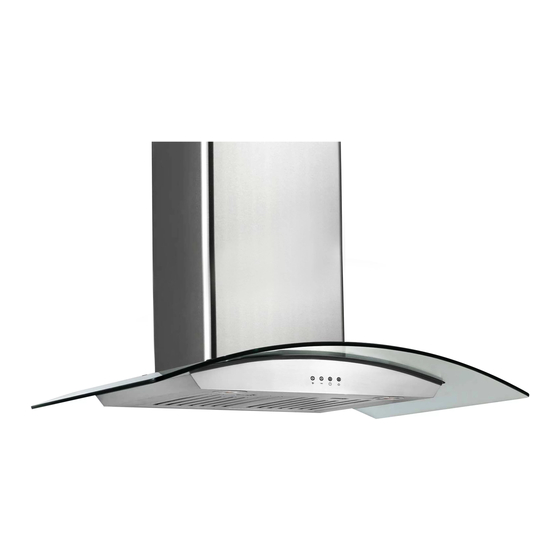

RANGE HOOD USER INSTRUCTIONS MODEL: TORNADO ISLAND II 36 IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance. Keep these instructions for future reference. 07/31/2014 MAAN0114-3603-2... -
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE The installation in this manual is intended for qualified installers, service technicians or persons ● with similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 IMPORTANT SAFETY NOTICE READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE To reduce the risk of stove top grease fire: Keep all fans, filters, spacers, grease trays*, oil container* and grease-laden surfaces clean. ● Grease should not be allowed to accumulate on fan, filters, spacers, grease trays* and oil container*, and surfaces.
-
Page 4: Parts Supplied
PARTS SUPPLIED: Hood body Decorative upper and lower chimneys (2 pcs) Angle mounting brackets (8 pcs) Mounting screws (8 pcs) Mounting screws (42 pcs) Ceiling mounting bracket Drywall (1 pc) anchors (12 pcs) Mounting screws Nuts (26 pcs) (12 pcs) Explode screws Washers (26 pcs) -
Page 5: Height & Clearance
VENTING REQUIREMENTS: HEIGHT & CLEARANCE: • Vent system must terminate to the outside (Roof or side wall). • DO NOT terminate the vent system in an attic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. -
Page 6: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. •... -
Page 7: Venting Methods
VENTING METHODS: • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. -
Page 8: Electrical Requirements
ELECTRICAL REQUIREMENTS: IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility to contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. - Page 9 PREPARATIONS: Advanced Preparations: Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 15. • • Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
-
Page 10: Installation
INSTALLATION: Installations (refer to Page 4 for parts): NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbars is highly recommended. (See Fig. #1) (See Fig. #2) - Page 11 INSTALLATION CONTINUE: Step 3: Venting • Fix the damper on the top vent of hood with screws. (See Fig. #3) • Let the ducting pipe go inside through the hole from the ceiling. (See Fig. #4) • Measure the length of 6`` round metal duct required from the dampler / duct connector to the ductwork rough-in in the ceiling.
- Page 12 INSTALLATION CONTINUE: Step 5: Finishing installation • Slide the inner chimney up to the ceiling and attach it to the ceiling bracket using the screws. (See Fig. #7) • Remove the protective coating from the hood body and outer chimney. •...
-
Page 13: Control Panel Operation
CONTROL PANEL OPERATION: Increase Decrease Timer Light Speed Speed Control Panel Layout and Buttons Configurations: Electronic Controls with Time Delay • Lights: • Press the light button to turn halogen lights on and off. • Power settings: • Press the button once and the motor starts to operate at Low speed. -
Page 14: Replacing The Bulbs
REPLACING THE BULBS: Replacing the light bulbs: • This range hood uses halogen bulbs: 20W 12V type G4. • Make sure the range hood is unplugged or turn OFF breaker. • Place a flat-head screwdriver between light cover and housing to remove cover. •... -
Page 15: Mounting Brackets
MOUNTING BRACKETS:... - Page 16 MEASUREMENTS AND DIAGRAMS:...
-
Page 17: Troubleshooting
TROUBLE SHOOTING: 1) If the range hood or halogen light does not • Check if the range hood has been plugged in, operate after installation: make sure that all power has been turned back ON,fused not blown and all electrical wiring are properly connected. -
Page 18: Range Hood Assembly
RANGE HOOD ASSEMBLY: Part Filter Screws Lights Switch panel Push button Switch box Glass Motor Wheel Blower Grill Power cord Housing Air outlet Base of plastic box Connector Transformer Capacitor PCB box Duct tube (not included) Lower chimney Mounting angle Upper chimney Mounting plate... -
Page 19: Specifications
SPECIFICATIONS: Stainless steel Body design 120V / 60Hz (USA & Canada standard) Power rating 410W (330W + 4x20W) General input power 330W Motor input power 3.3A Ampere Levels of speed control 3 levels 350CFM/470CFM/600CFM Airflow (55db)/(63db)/(67db) Noise Level Single motor Number of Motor Centrifugal squirrel cage Fan Type... -
Page 20: Blower Assembly
BLOWER ASSEMBLY: Description Description Charcoal bracket Cover of rubber bracket Blower net Motor Rubber bracket Blower of motor ELECTRICAL ASSEMBLY: Description Description Electrical box base Screw (ST3*6) Electrical cover Capacitor Screw (ST3*10) -
Page 21: Use And Care Information
USE AND CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 22 Subject to the limitations, exclusions and disclaimers hereof, AMS warrants exclusively to the original purchaser (the “Purchaser”) of this Ancona Range hood product (the “Product”) that it shall be free from defects in material or workmanship (the “Limited Product Warranty”). The duration of the Limited Product Warranty is 12 months from the date of original purchase (the “Warranty Period”).
