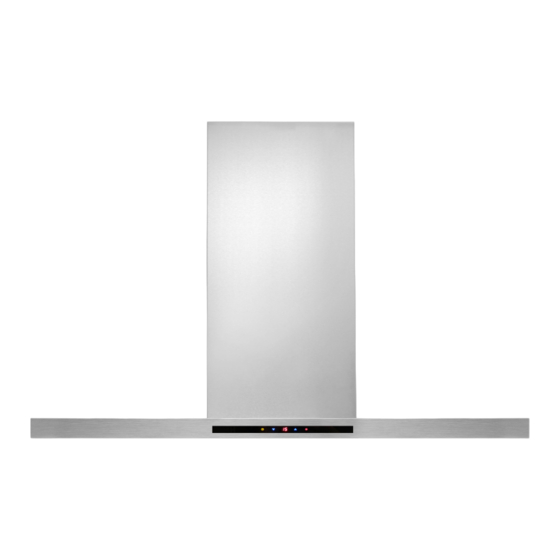

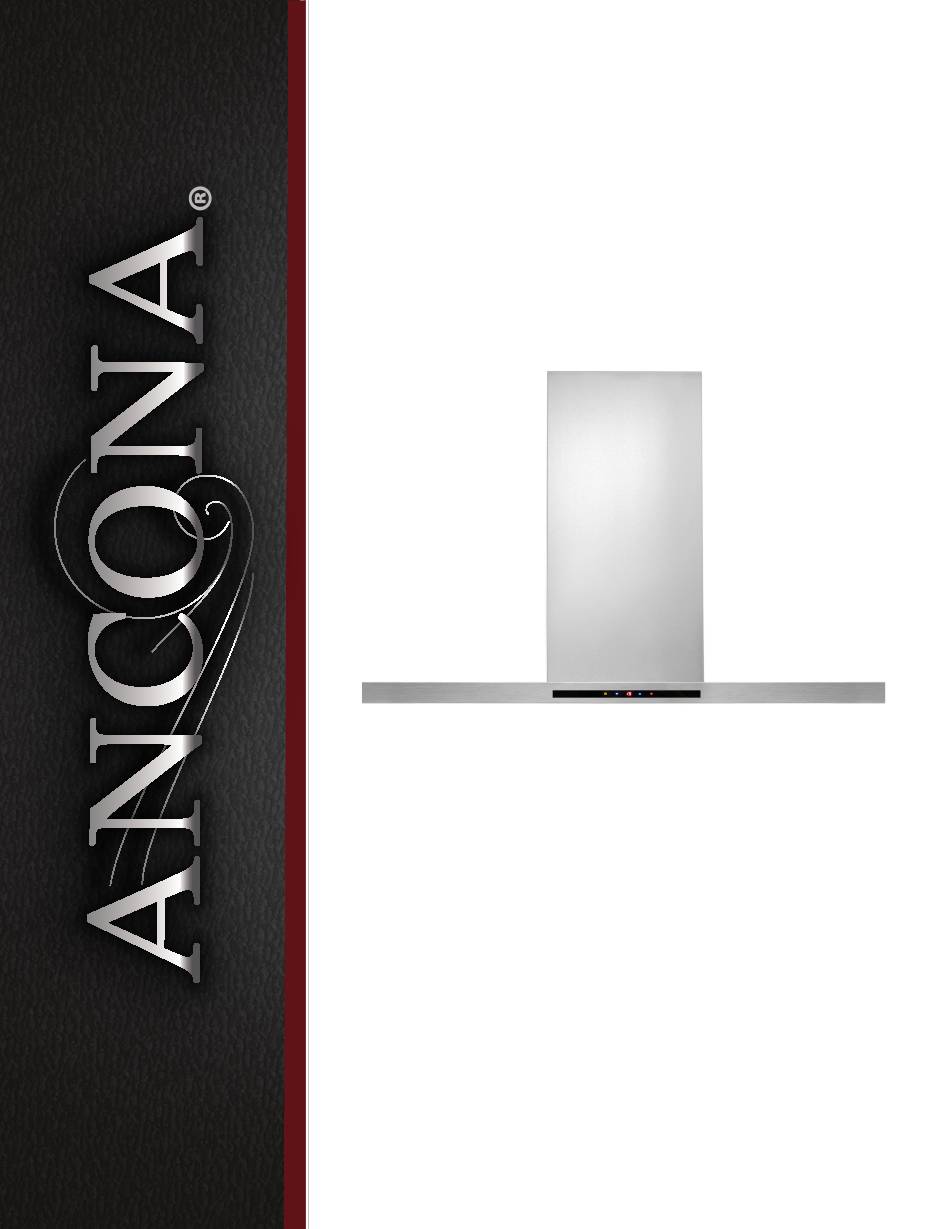

- Page 1 Range Hood Ancona Elite IRE636 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1416-03 2017-11-20...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 8 to 13. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specification ............................ 7 Installation ............................8 Step 1 - Read the Safety Instructions .................... 8 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fi e, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy •...
-
Page 6: Included Parts
Included Parts Ceiling Bracket Range Hood 8pc Angle Mounting Bracket 23.6" (600mm) Mounting screws ceiling bracket (20 + 1 pcs) Mounting screws Damper 6 in. angle bracket Filters 3 pcs (24 + 1 pcs) Nuts (24+ 1 pcs) Damper screws (4+ 1 pcs) `S` mounting hook (1 pc) -
Page 7: Range Hood Dimensions
Range Hood Dimensions Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified Total Input Power 470.2 W Motor Input Power 460 W Total Amps 3.8 A Speed Control Levels 4 Levels Interference Levels Radio Frequency Interference Protected Motors Single Motor Control Electronic Control Panel Filtration Stainless Steel Filters... -
Page 8: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbers is highly recommended. -
Page 9: Step 5 - Venting Installation Guidelines
Installation STEP 5 Height and Clearance Venting Installation Guidelines A - Floor to ceiling height B - Ceiling to cooking surface (center/plumb line height) • The following steps are for exterior ventilation. C - Cooking surface to bottom of hood height •... -
Page 10: Step 6 - Measuring
Installation STEP 6 Measuring Measure the distance between stove top and the bottom of the range hood. A distance of 24" to 30" is • recommended with a minimum of 30" for gas stove tops. To reach 9 ft ceiling make sure hood is installed at 30" from cooking surface. •... -
Page 11: Step 8 - Venting
STEP 8 Venting • Fix the damper on the top vent of hood with screws. (See Fig. #3) • Let the ducting pipe go inside through the hole from the ceiling. (See Fig. #4) Measure the length of 6" round metal duct required from the damper / duct connector to the ductwork rough-in •... -
Page 12: Step 10 - Finishing Installation
Installation STEP 10 Finishing Installation Slide the inner chimney up to the ceiling and attach it to the ceiling bracket using the screws. (See Fig. #7) • Remove the protective coating from the hood body and outer chimney. • Installation is finished. •... -
Page 13: Step 11 Install Filters
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: •... -
Page 14: Operation
Operation Using the Fan Turning the Light On of Off Press to turn light on Press to begin low and again to turn light speed. Screen will display off. Press to increase speed suction. Screen will display increments as 2, 3, 4. Press again to decrease suction. -
Page 15: Maintenance
Maintenance Replacing the Light Bulbs Cleaning the Range Hood Unplug the unit from the AC outlet. Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the hood. Range Hood Body Remove five screws from the light panel, then remove the light bulbs by popping them •... - Page 16 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1416-03 © 2017 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 16 —...
