STEP 6
Preparations
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on wall studs
or lumbers is highly recommended.
• Determine and mark the centre line on the ceiling where the range hood will be installed. A distance of 24 inches to 30
inches from the stove top is recommended, with a minimum of 30 inches for gas stove tops.
• Make sure there is proper clearance within the ceiling for exhaust vent.
• Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and
secure in the ceiling.
• Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt.
• Remove any hazardous objects around the area when installing.
8 Ø 1 cm (0.4 in.)
CAUTION
Depth 6.5 cm (2.55 in.)
If moving the cooking range is necessary to install the hood, turn OFF the power on an electric range at the main
electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE.
23.4 cm (9.2 in.)

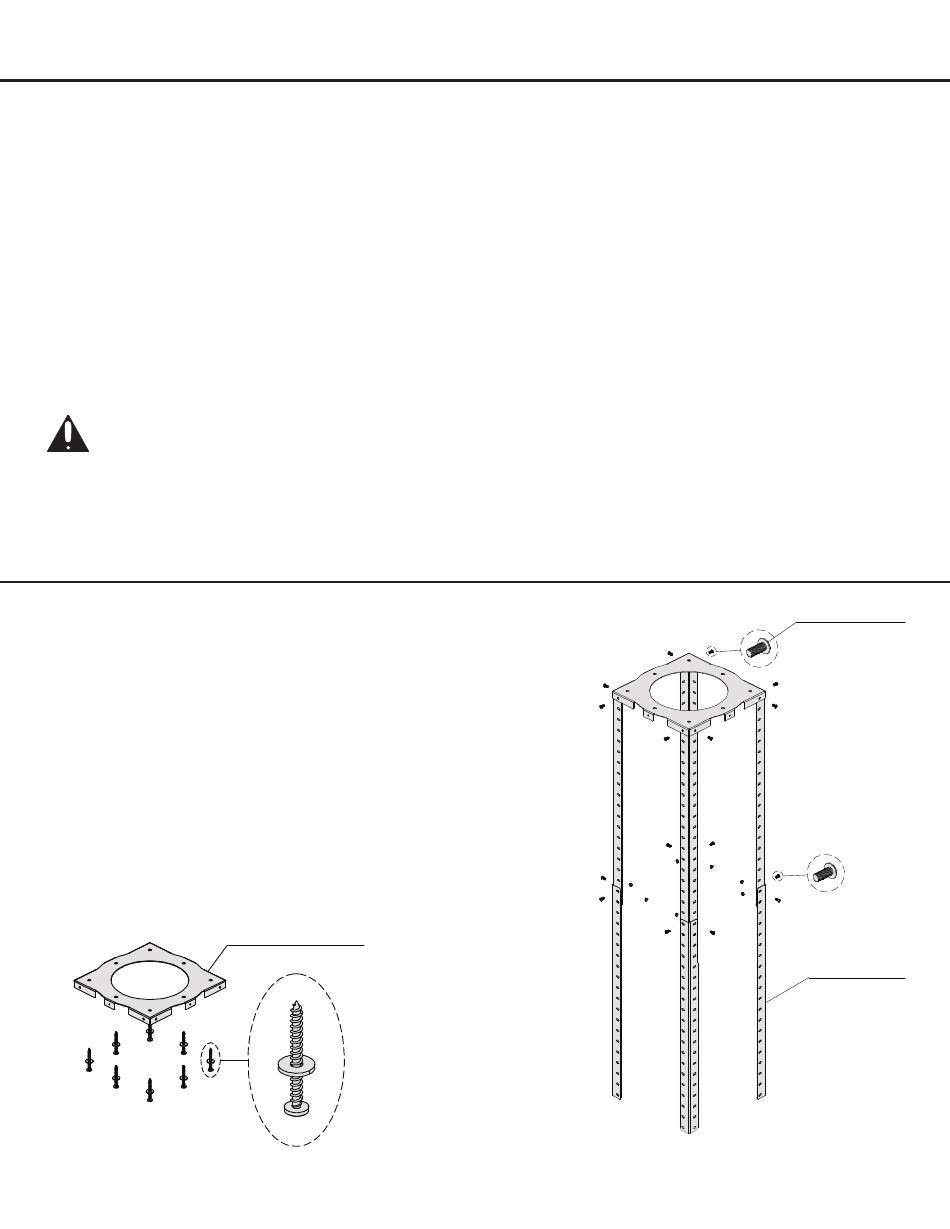

STEP 7
Installing the hood mounting bracket
Ø 19 cm
• Using measurements from page 8, define the installation location.
(7.5 in.)
• Fix the hanging scaffold at desired position, and check firmness of
Hole
installation. (See Fig. #1)
• Adjust to proper height and attach the brackets to the hanging
scaffold. (See Fig. #2)
Fig. #1
Installation
23.4 cm
(9.2 in.)
21 cm (8.2 in.)
Hanging scaffold
21 cm
(8.2 in.)
— 12 —
8-M4 x 10
Bracket
Fig. #2
