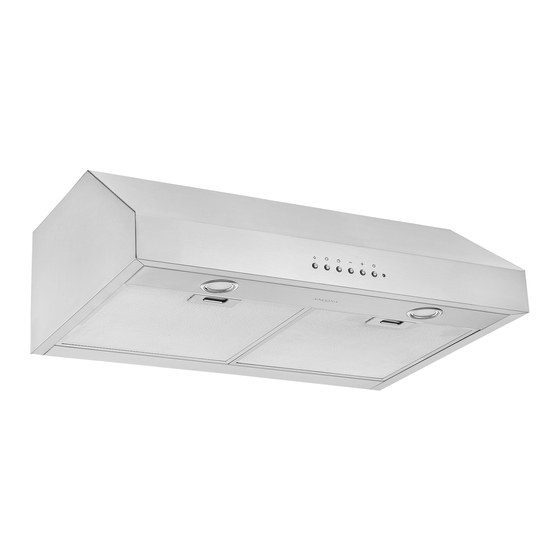

- Page 1 Wall and Under Cabinet Range Hood User Manual Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAANTM01-02 2019-09-09...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 10 to 17. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Dimensions for Cabinet Hoods ......................7 Mounting Brackets for Wall Hoods ....................8 Installation ............................10 Step 1 - Read the Safety Instructions ..................10 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Wall Hoods Upper Chimney Bracket Lower Chimney Lower Chimney Bracket Main Housing Hood Mounting Bracket Upper Chimney 2 + 1 Screws Damper flap 2 Filters Included Parts Under Cabinet Hoods Main Housing 2 Filters Damper 4 + 1 Screws Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Dimensions For Cabinet Hoods
Dimensions for Cabinet Hoods Dimensions for 24 inch wide units 8 cm (3.1 in.) 14.8 cm (5.8 in.) 25.5 cm (10 in.) 6.1 cm (2.4 in.) 15.3 cm (6 in.) — 7 —... -
Page 8: Mounting Brackets For Wall Hoods
Mounting Brackets for Wall Hoods Type I Upper Chimney Bracket 0.8 cm (0.3 in.) 20.4 cm (8 in.) 18.01 cm (7.1 in.) 16.51 cm (6.5 in.) 0.6 cm 0.5 cm (0.2 in.) 2.5 cm (0.2 in.) (1 in.) 2 cm (0.75 in.) Lower Chimney Bracket 19.35 cm (7.6 in.) 18.77 cm (7.4 in.) - Page 9 Mounting Brackets for Wall Hoods Type II Upper Chimney Bracket 31.8 cm (12.5 in.) 31.8 cm (12.5 in.) 0.8 cm 27.9 cm (11 in.) (0.3 in.) 2.5 cm 27.9 cm (11 in.) (1 in.) 2.5 cm 20.4 cm (8 in.) (1 in.) 18.01 cm (7.1 in.) 16.51 cm (6.5 in.)
-
Page 10: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 11: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. For the most efficient and quiet operation: • It is recommended that the range hood be vented IMPORTANT: vertically through the roof through 6 in. (15.3 cm) round, • Vent system must terminate to the outside (roof or side wall). or through the roof or wall 3-1/4 x 10 in. - Page 12 Installation IMPORTANT: electric cook tops and minimum of 30-inch (76.2 cm) • A minimum of 6 in. (15.3 cm) round or 3-1/4 x 10 in. (8.3 for gas stove tops and no higher than 30-inch (76.2 cm) cm x 25.4 cm) rectangular duct must be used to maintain for electric cook tops.
-
Page 13: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall. -
Page 14: Step 9A (Wall Hoods Only) Venting
Installation • Optional step: For extra support, drill 2 additional holes aligned to hood’s pre-drilled holes, to mount the hood onto the wall. (See Figure #2) STEP 9A (wall hoods only) Fig. #2 Venting • Fix the damper flap on the top vent of hood. • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. -
Page 15: Step 13A (Wall Hoods Only) Install Chimney
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. -
Page 16: Step 7B (Cabinet Hoods Only) Attaching Vent/Damper
Installation STEP 7B (cabinet hoods only) Attaching Vent/Damper • Remove the two filters to allow access to the inside of the unit. • Depending on the exterior venting option chosen (See page 12), pop out the steel panel on either the top or rear of the range hood. -
Page 17: Step 10B (Cabinet Hoods Only) Venting
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. -
Page 18: Operation
Operation Low speed Medium speed High speed Light Power Settings Lights Off button: Use for turning off the fan. Use for turning the light on and off. Low speed button: Starts the fan in low speed mode. Medium speed button: Starts the fan at medium speed. -
Page 19: Maintenance
Maintenance Replacing the Light Pucks IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Make sure the range hood is unplugged or turn OFF Replace LED lights. Plug in new puck and push breaker. -
Page 20: Cleaning Filters
Maintenance Cleaning Filters IMPORTANT: Drain oil from spacers, filters, oil tunnels, oil containers before oil and residue overflow! • Remove all spacers, filters, grease tray, and oil containers and discard oil and residue. • Wash with warm soapy water. NOTE: Filters, spacers and oil tunnel are top rack dishwasher safe. • Dry thoroughly before replacing and follow directions for installation in reverse. -
Page 21: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 22 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAANTM01-02 © 2019 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 22 —...
