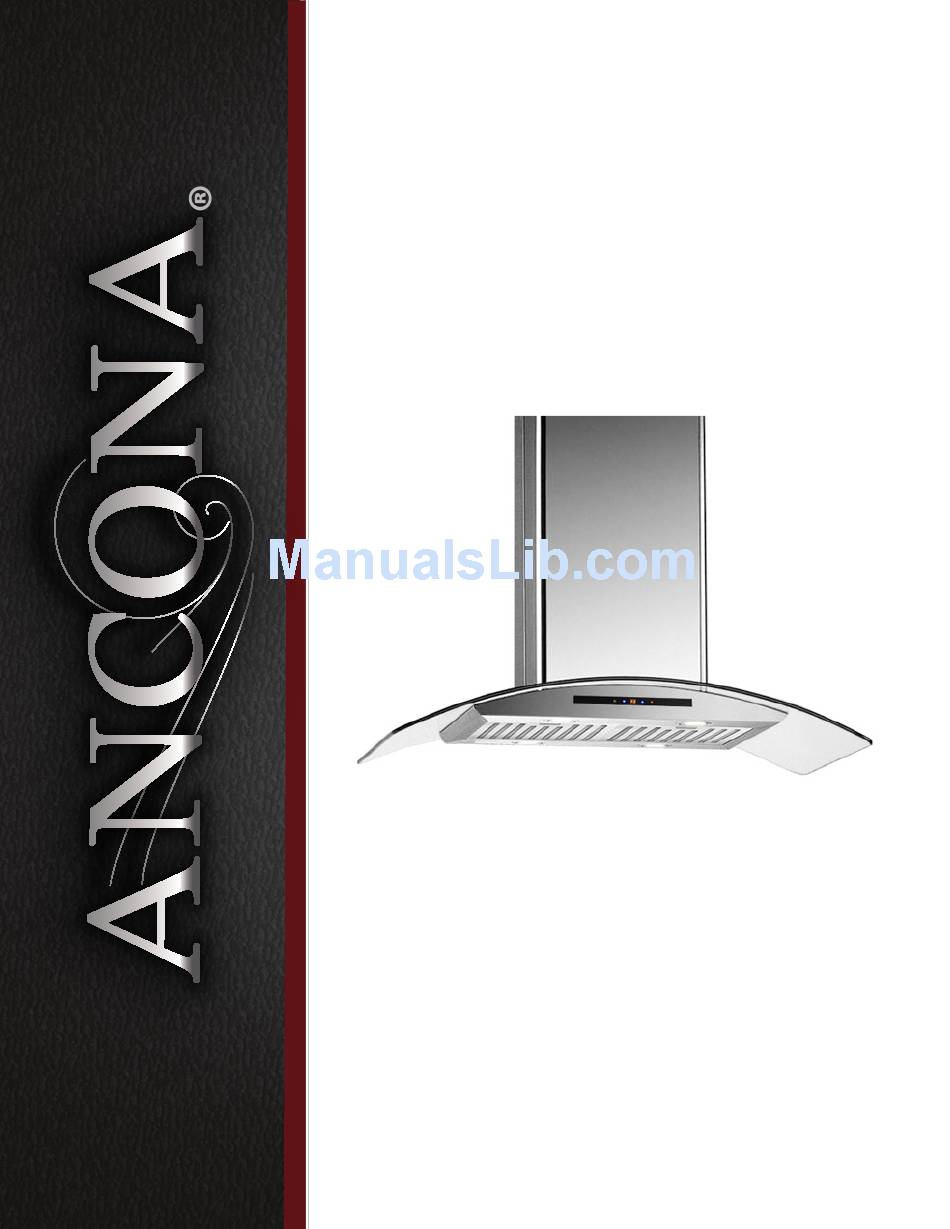

Page 1: Installation Instructions

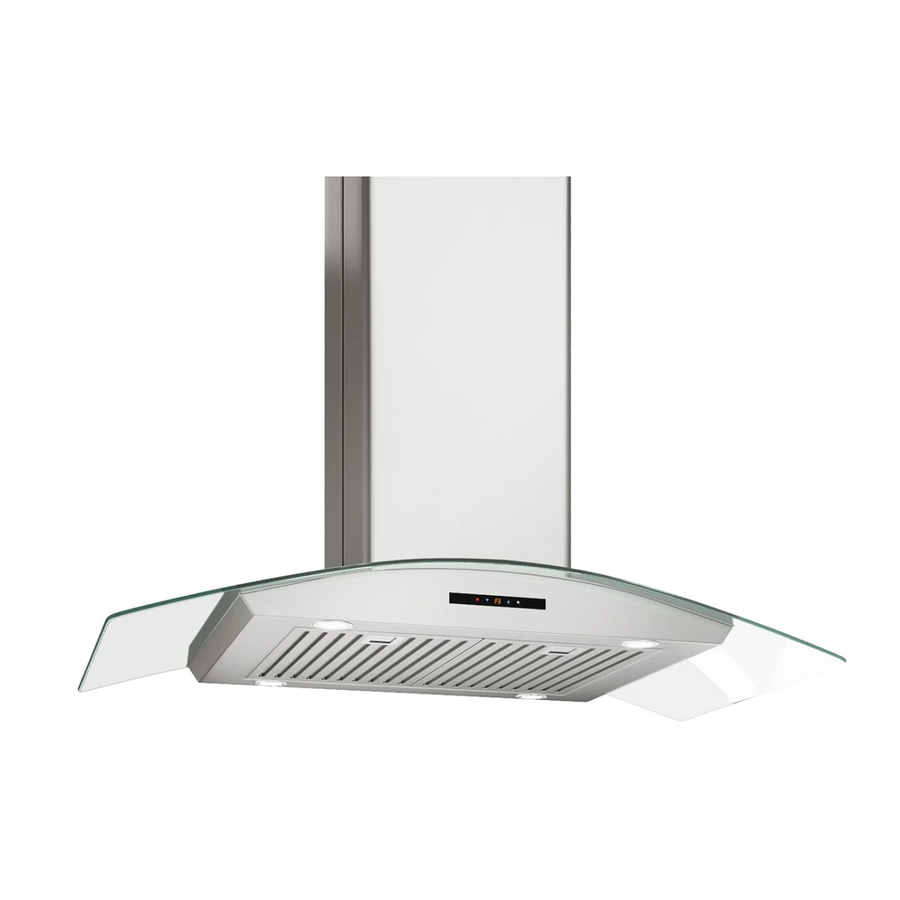

Range Hood Ancona Elite IGCE636 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. -
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 6 to 16. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Installation ............................8 Step 1 - Read the Safety Instructions .................... 8 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Range Hood 2pc Telescopic Ceiling Bracket 2 x Filters Damper Damper Gasket 4 x Damper Screws 4 x Chimney Screws 12 x Bracket Screws 2 x Temporary Screws Lower Chimney Upper Chimney Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions UPPER CHIMNEY TELESCOPIC TOTAL HEIGHT 2pc CEILING 20.47” (520mm) MOUNTING BRACKET LOWER CHIMNEY TOTAL HEIGHT 23.6” (600mm) Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 466 W Motor Input Power 460 W Total Amps 3.8 A Speed Control Levels 4 Levels... -
Page 8: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 9: Step 4 - Test Unit Functions
Installation Outline of ceiling mounting bracket Figure 3 IMPORTANT: For the most efficient & quiet operation: • Vent system must terminate to the outside (roof or side wall). • It is recommended that the range hood be vented • DO NOT terminate the vent system in an attic or other vertically through the roof through 10”... -
Page 10: Step 6 - Install Damper Onto Range Hood
Installation STEP 6 Install Damper onto Range Hood • Place the damper gasket followed by the damper over the ventilation hole on top of the motor box on the range hood. • Secure using the four screws provided. STEP 7 Connect Ductwork • Connect the ductwork to the ventilation hole in the ceiling. -
Page 11: Step 9 - Install Ceiling Mounting Bracket
STEP 9 Install Ceiling Mounting Bracket • Center the upper chimney bracket on the ceiling around the ventilation duct opening. Ensure that the markings coincide with the cross-bracings between the ceiling joists. • Mark the upper screw holes on the ceiling. • Secure the mounting bracket to the ceiling cross-braces with screws and leave approximately 1/4”... -
Page 12: Step 11 - Install Range Hood
Installation STEP 11 Install Range Hood Note: To avoid personal injury and/or damage to the range hood, this installation step requires three people. • Remove the two baffle filters from the range hood. • With the assistance of two other people holding the range hood from below, position the lower chimney bracket onto the motor box of the range hood and screw together using the four screws provided. -
Page 13: Step 13 Install Filters
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. -
Page 14: Operation
Operation Using the Fan Turning the Light On of Off Press to turn light on Press to begin low and again to turn light speed. Screen will display off. Press to increase speed suction. Screen will display increments as 2, 3, 4. Press again to decrease suction. -
Page 15: Maintenance
Maintenance Replacing the Light Bulbs Cleaning the Range Hood Unplug the unit from the AC outlet. Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the hood. Range Hood Body Remove five screws from the light panel, then remove the light bulbs by popping them out. - Page 16 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1410-01 © 2015 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 16 —...
