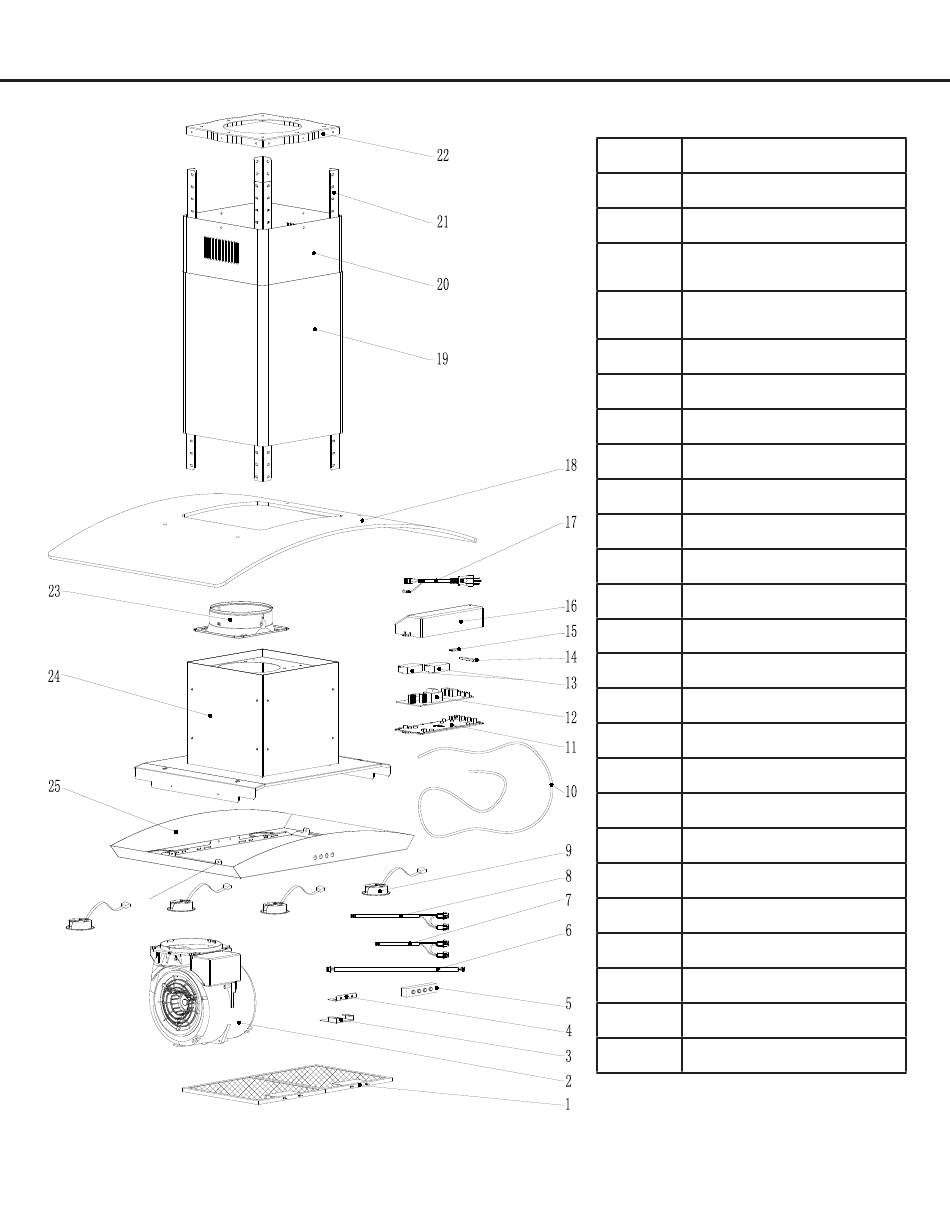

Range Hood Assembly

— 18 —
Number Part
1 Decorative Filter
2 Blower assembly
3 Electronic switch fixed
bracket
4 Electronic switch box
bracket
5 Electronic switch
6 Switch Guide wire
7 Lamp Guide wire
8 Lamp Guide wire
9 LED puck lights
10 Decorative strip
11 Electrical box base
12 PCB
13 LED puck lights driver
14 3 holes tension disc
15 2 holes tension disc
16 Electrical box cover
17 Plug
18 Tempered glass 30/36 in.
19 Lower chimney
