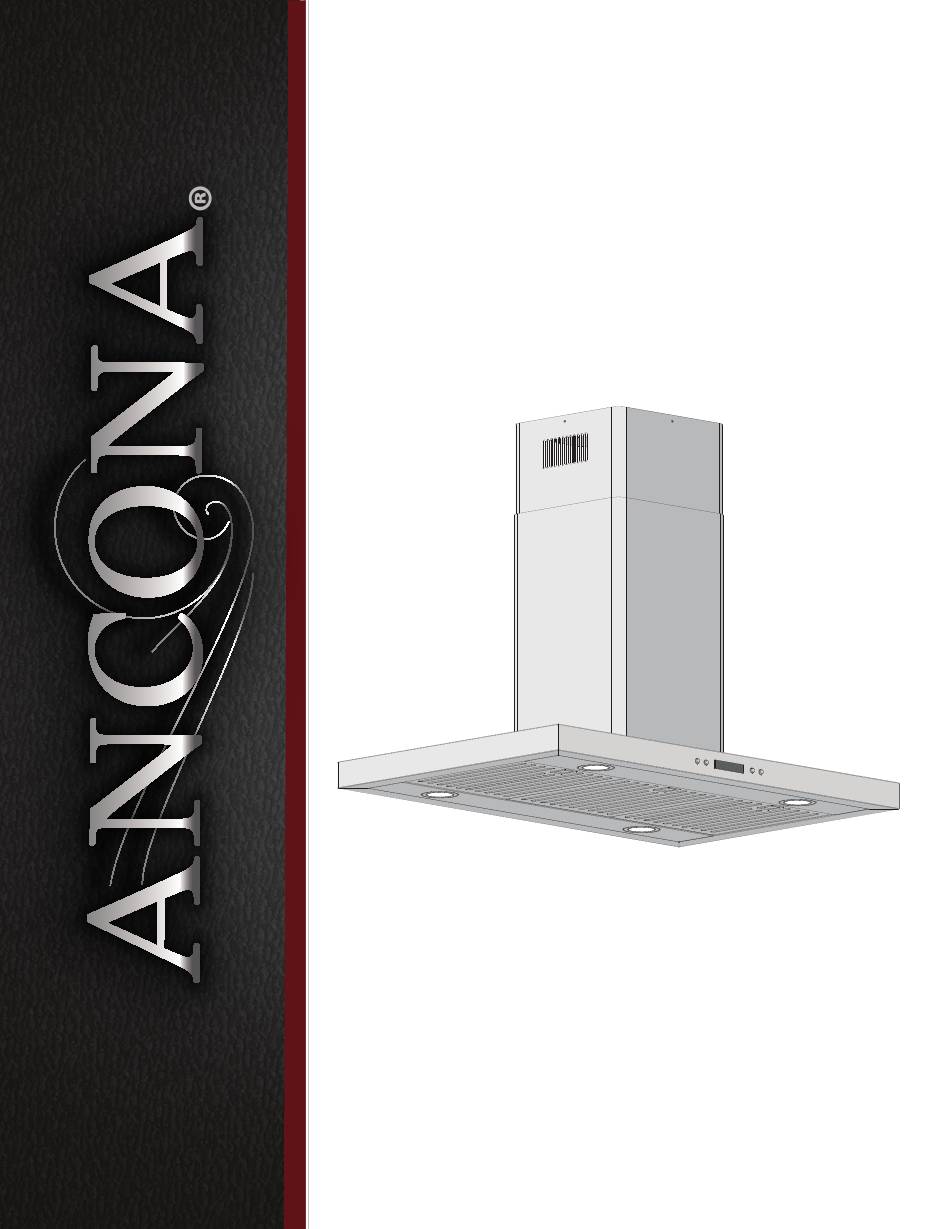

- Page 1 IRB636 Range Hood User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1407-01 2018-11-12...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Bracket ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts 8 pieces angle 1 piece ceiling mounting bracket Range Hood mounting brackets 8 + 1 pieces ST4*8 mm mounting screws 3 pieces filter Damper 40 + 1 pieces M4*10 mm mounting screws Lower Chimney Upper Chimney 1 piece `S` mounting hook Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions 28.6 cm 28.6 cm (11.25 in.) (11.25 in.) 60 - 118 cm (23.6 - 46.4 in.) 60 cm (23.6 in.) Ø15 cm (5.9 in.) 25 cm (9.8 in.) 5 cm (1.9 in.) 90 cm (35.4 in.) 58 cm (22.8 in.) Specifications Body Design Stainless Steel... -
Page 8: Mounting Bracket
Mounting Bracket 8 Ø 1 cm (0.4 in.) Depth 6.5 cm (2.55 in.) 23.4 cm (9.2 in.) 23.4 cm (9.2 in.) 21 cm (8.2 in.) Ø 19 cm (7.5 in.) Hole 21 cm (8.2 in.) — 8 —... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. Height and Clearance 114.3 in. (2.9 m) Maximum ceiling clearance 114.3 in. (2.9 m) at 30 in. (76.2 cm) hood mounting height above 30 in. countertop or stove (May vary with different model). - Page 11 Installation IMPORTANT: electric cook tops and minimum of 30-inch (76.2 cm) • A minimum of 6 in. (15.3 cm) round or 3-1/4 x 10 in. (25.4 for gas stove tops and no higher than 30-inch (76.2 cm) cm x 8.3 cm) rectangular duct must be used to maintain for electric cook tops.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbers is highly recommended. • Determine and mark the centre line on the ceiling where the range hood will be installed. -
Page 13: Step 8 - Venting
Installation 4 - ST 4 x 8 • Fix upper chimney on hanging scaffold. • Place lower chimney over upper chimney at proper position. • Insert hook into bracket to hold lower chimney Upper chimney temporarily. See Fig. #3. Lower chimney Hook Fig. -
Page 14: Step 9 - Finishing Installation
Installation STEP 9 Finishing Installation Note: To avoid personal injury and/or damage to the range hood, this installation step requires three people. • Extend the hose from hanging scaffold, and fix hood’s body on bracket. See Fig. #5. • Detach the hook, move lower chimney downward until reaching hood’s body. Make sure not to strike glass. See Fig. #6. Fig. -
Page 15: Step 11 - Install Filters
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. -
Page 16: Operation
Operation Light Timer Power Power Settings Using the Time Delay Function Press the On/Off button to turn the fan on. The When the range hood is in ON position, press the fan will start at the 1st (lowest) speed and the Fan Timer button once to turn the Timer on. -
Page 17: Maintenance
Maintenance Cleaning the Range Hood Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the hood. Proper maintenance of the Range Hood will ensure proper performance of the unit. Use a warm detergent solution. Grease filters are dishwasher safe. Stainless steel is one of the easiest materials to keep clean. -
Page 18: Range Hood Assembly
Range Hood Assembly Number Part Stainless steel baffle filter Blower assembly bracket Blower assembly LED puck lights Wire bracket Lamp panel Wire protection cover Reinforcing plate Touch switch LCD switch box bracket LCD switch box fixed bracket Bottom cover Plug Electrical box base Electrical box cover LED puck lights driver Lamp guide wire... -
Page 19: Assembly
100.00 mm Assembly Circuit Diagram Electrical Assembly Number Part Electrical box base LED puck lights driver Electrical box cover — 19 —... -
Page 20: Troubleshooting
Troubleshooting Problem Possible Cause If the range hood or LED light Check if the range hood has been plugged in, make sure that all power does not operate after installation: has been turned back ON, fused not blown and all electrical wiring are properly connected. -
Page 21: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 22 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1407-01 © 2018 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 22 —...
