STEP 9
Finishing Installation
Note: To avoid personal injury and/or damage to the range hood, this
installation step requires three people.

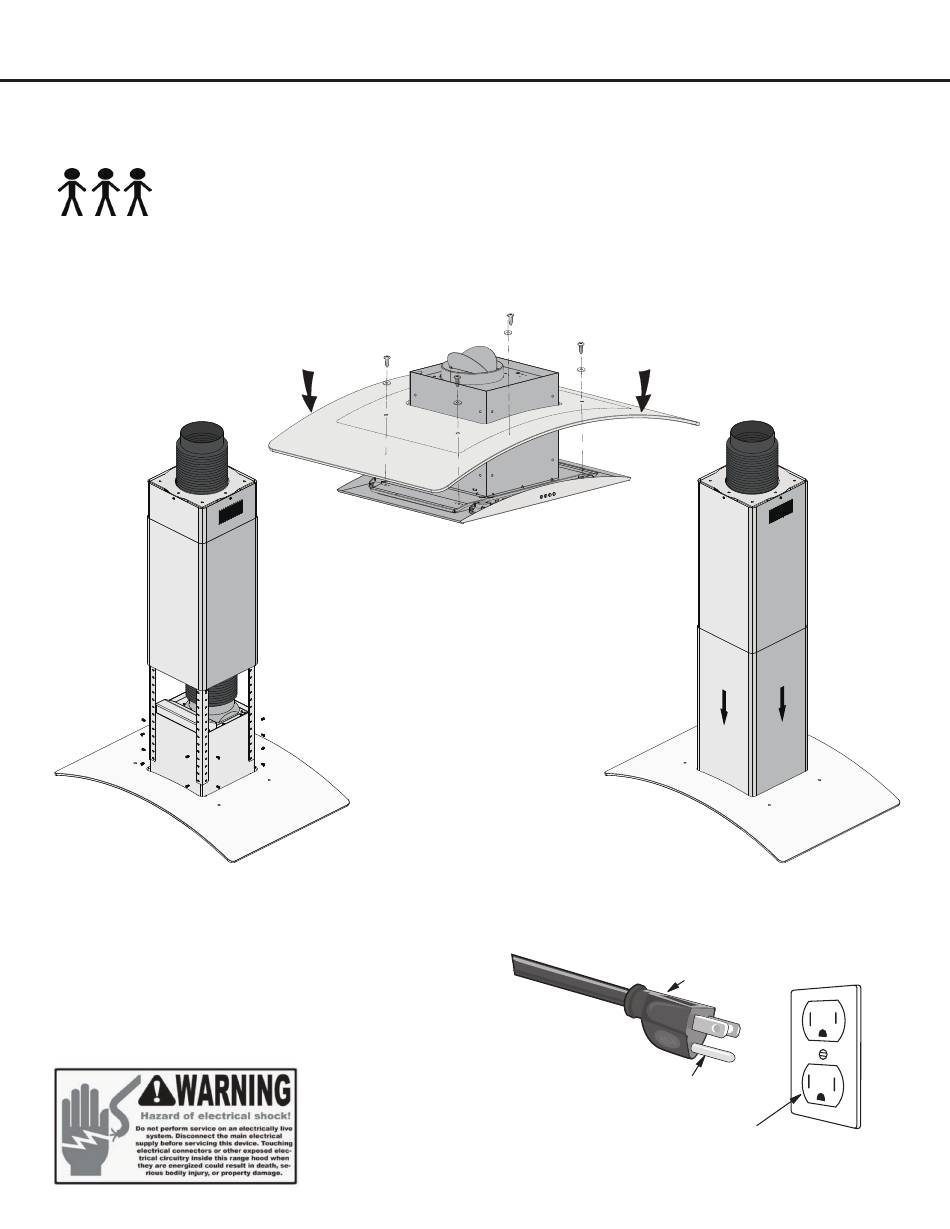

• Use 4 pieces M4*22mm mounting screws with washers to attach the glass into the hood. See Fig. #5.
• Extend the hose from hanging scaffold, and fix hood's body on bracket. See Fig. #6.
• Detach the hook, move lower chimney downward until reaching hood's body. Make sure not to strike glass. See Fig. #7.
Fig. #6
STEP 10
Connect to AC
• Connect AC plug into a grounded AC outlet having 120V,
60Hz. Place the outlet at a maximum distance of 33-1/2 in.
(851 mm) from where the cord exits on the hood.
• SEE IMPORTANT INSTRUCTIONS ON NEXT PAGE.
Installation
Fig. #5
— 14 —
Fig. #7
3-Pronged Plug
Ground Plug
3-Prong Receptacle
