Summary of Contents for Ancona Noturna IG 30

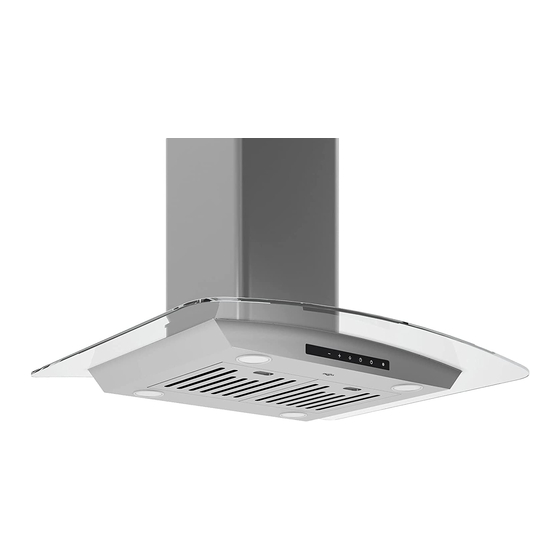

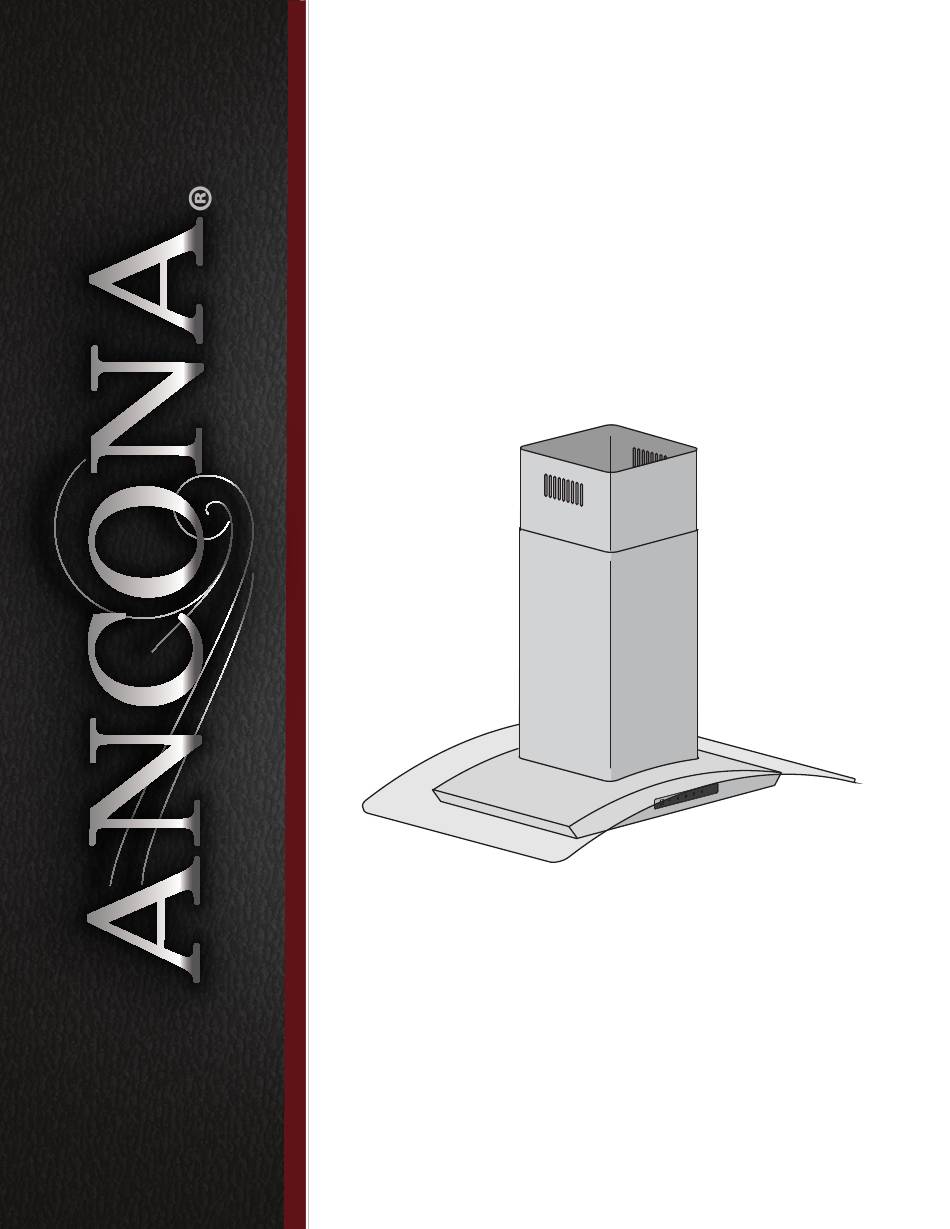

- Page 1 Noturna IG 30 and 36 Range Hood User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1418-01 2018-09-05...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Bracket ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts 4 + 1 pieces M4*25mm mounting screws 4 + 1 pieces washers Range Hood 4 + 1 pieces ST4*8mm mounting screws 1 piece ceiling mounting bracket 8 pieces angle mounting brackets 40 + 3 pieces M4*10mm mounting screws 2 pieces filter Damper flap 16 + 3 pieces nuts... -
Page 7: Range Hood Dimensions
Range Hood Dimensions 101.5 - 123.5 cm (39.9 - 48.6 in.) 65.1 cm (25.6 in.) Ø15 cm 2.9 cm (5.9 in.) (1.1 in.) 24.5 cm (9.6 in.) 5.1 cm (2 in.) 75 / 90 cm 60 cm (23.6 in.) (29.5 / 35.4 in.) Specifications Body Design Stainless Steel... -
Page 8: Mounting Bracket
Mounting Bracket — 8 —... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. Height and Clearance 114.6 in. (2.9 m) Maximum ceiling clearance 114.6 in. (2.9 m) at 30 in. (76.2 cm) hood mounting height above 30 in. countertop or stove (May vary with different (76.2 cm) model). - Page 11 Installation IMPORTANT: electric cook tops and minimum of 30-inch (76.2 cm) • A minimum of 6 in. (15.3 cm) round or 3-1/4 x 10 in. (25.4 for gas stove tops and no higher than 30-inch (76.2 cm) cm x 8.3 cm) rectangular duct must be used to maintain for electric cook tops.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbers is highly recommended. • Determine and mark the centre line on the ceiling where the range hood will be installed. -
Page 13: Step 8 - Venting
Installation STEP 8 Venting • Fix the damper flap on the top vent of hood. (See Fig. #3) • Let the ducting pipe go inside through the hole from the ceiling. (See Fig. #4) • Measure the length of 6`` round metal duct required from the damper / duct connector to the ductwork rough-in in the ceiling. -
Page 14: Step 10 - Finishing Installation
Installation STEP 10 Finishing Installation Note: To avoid personal injury and/or damage to the range hood, this installation step requires three people. • Use 4 pieces ST4*8mm mounting screws to attach the upper chimney into the hanging board and hold up the lower chimney with the supplied `S` hook. -
Page 15: Step 11 - Install Filters
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. -
Page 16: Operation
056B 056B 056B 056B Operation 056B 056B 056B 056B 056B 056B 013B 056B 056B 056B 056B 013B 013B 056B 056B 056B 056B Decrease Increase Lamp Timer Power 013B 013B 013B 056B 056B 056B Speed Speed 013B 056B 056B 056B 056B 056B NOTE: When the hood has been initially connected to the 056B... -
Page 17: Maintenance
Maintenance Cleaning the Range Hood Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the hood. Proper maintenance of the Range Hood will ensure proper performance of the unit. Use a warm detergent solution. Grease filters are dishwasher safe. Stainless steel is one of the easiest materials to keep clean. -
Page 18: Range Hood Assembly
Range Hood Assembly Range Hood Assembly Number Part Number Part Mounting plate Mounting angle Upper chimney Lower chimney Power cord Cover of electronic box Capacitor Base of electronic box Damper flap Glass Housing assembly Carbon filter lock plate Blower assembly (includes motor) puck Panel Cover of control box... -
Page 19: Assembly
Assembly Circuit Diagram Motor 0V 60Hz Capacitor Main PCB _ _ _ LED Pucks CH A _ _ _ LED Pucks CH B MAX 10.2V 250mA 2.5W Temperature / Humidity Sensor (Optional) Blower Assembly Number Part Left blower housing Impeller Motor Right blower housing Electrical Assembly... -
Page 20: Troubleshooting
Troubleshooting Problem Possible Cause If the range hood or LED light Check if the range hood has been plugged in, make sure that all power does not operate after installation: has been turned back ON, fused not blown and all electrical wiring are properly connected. -
Page 21: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 22 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1418-01 © 2018 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 22 —...
