Attaching A Monitor; Attaching The Monitor Mount - StarTech.com ARMWALLDS2 User Manual

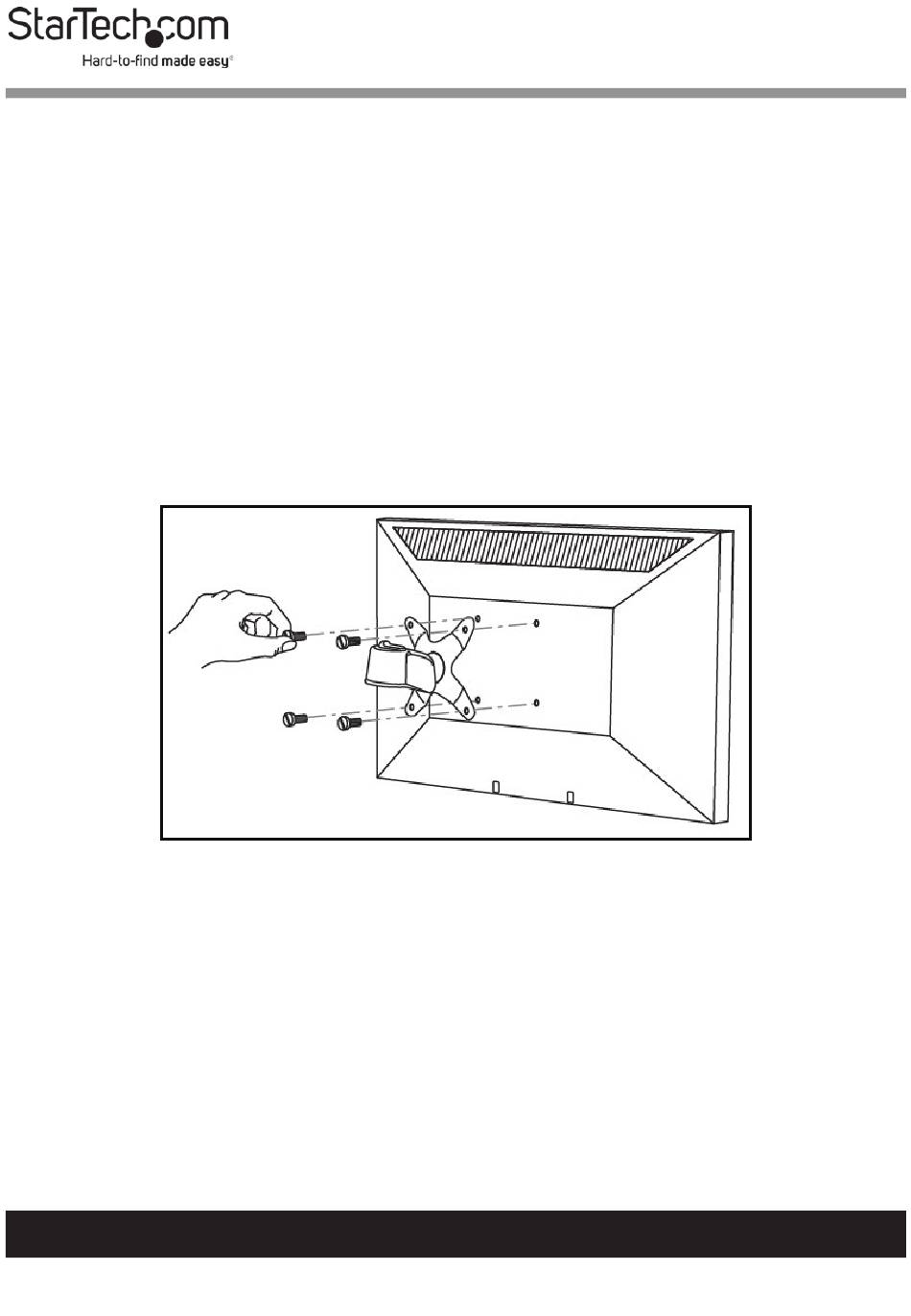

Attaching a Monitor

Align the Mounting Holes (x 4) on the Monitor Mount with
1.
the mounting holes on the back of the Monitor.
Insert the Hand Screws through the Monitor Mount and
2.
into the back of the Monitor.
Using your fingers, tighten the Hand Screws.
3.
Warning! Do not over-tighten the screws. If you encounter
resistance while you're tightening the screws, stop tightening.
Failure to do so could result in damage to the monitor.

Attaching the Monitor Mount

Notes: Attaching the Monitor Mount may require two
people.
The Wall Mount supports up to a maximum of 30.8 lb. (14
kg).
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Attaching a Monitor
16
