Attaching the Swivel Arm
Align the Mounting Hole on the Swivel Arm with the
1.
Mounting Peg on the Wall-Mount Bracket.
Slide the Mounting Hole on the Swivel Arm over the
2.
Mounting Peg until it clicks in place.

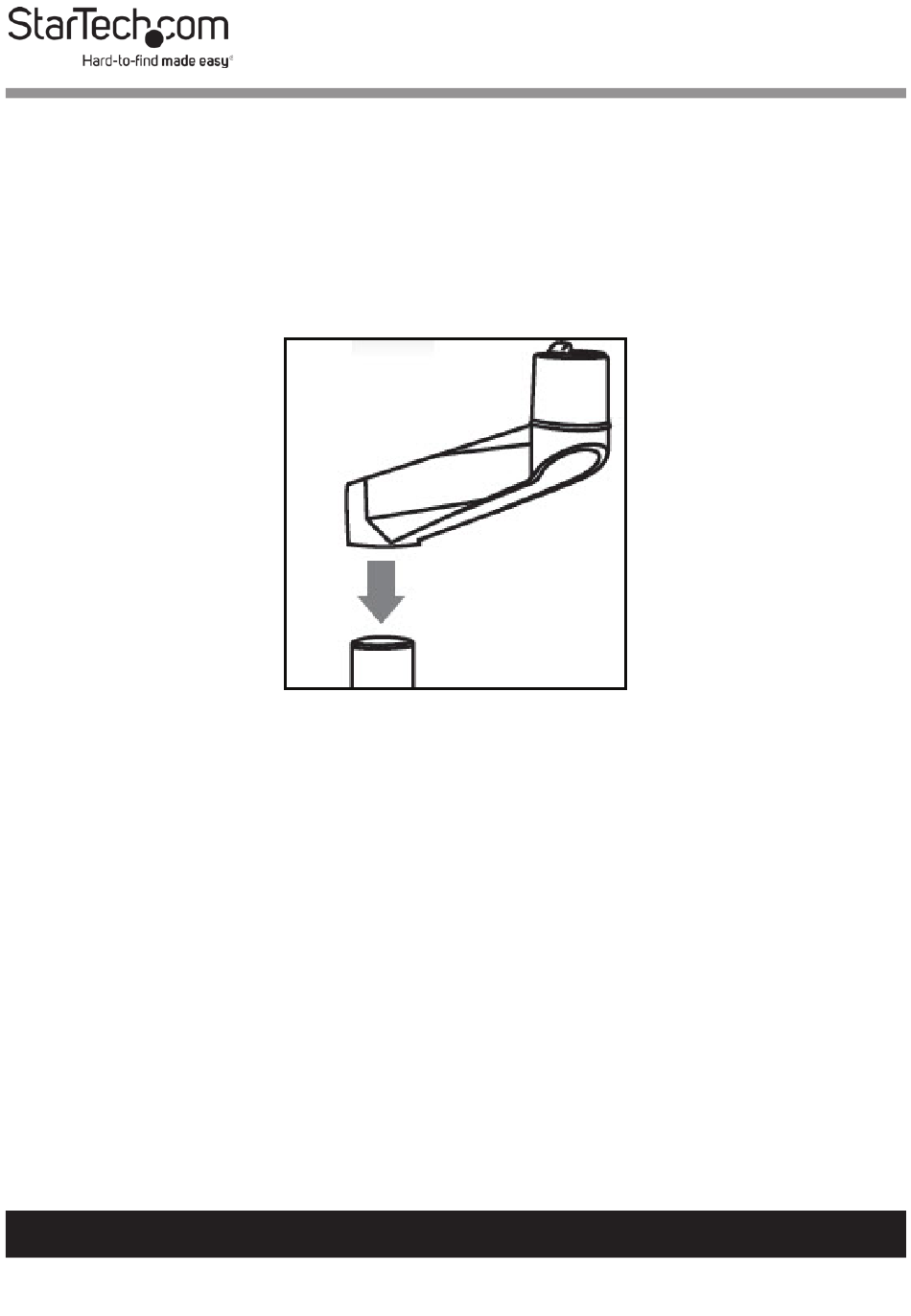

Attaching the Swivel Arm to the Mounting Peg
Using the Hex Key (included), tighten the Hex Screw on the
3.
side of the Swivel Arm, to increase the swivel effort or fix the
arm in place.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
14
