Removing the Monitor Mount

Slide the Thumb Clip towards the Swivel Arm, disengaging
1.
the locking mechanism.
While holding the Thumb Clip and the weight of the
2.
Monitor Mount, lift the Monitor Mount up sliding the
Mounting Peg out of the Mounting Hole.

Adjusting the Monitor Tilt

While supporting the weight of the Monitor, use the Hex
•
Key (included) to loosen or tighten the Hex Screw on the
side of the Monitor Mount, until the tension can hold the
weight of the Monitor but it is still adjustable.
Note: The screw cap located on the opposite side of the Hex
Screw is not used for tilt adjustments.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

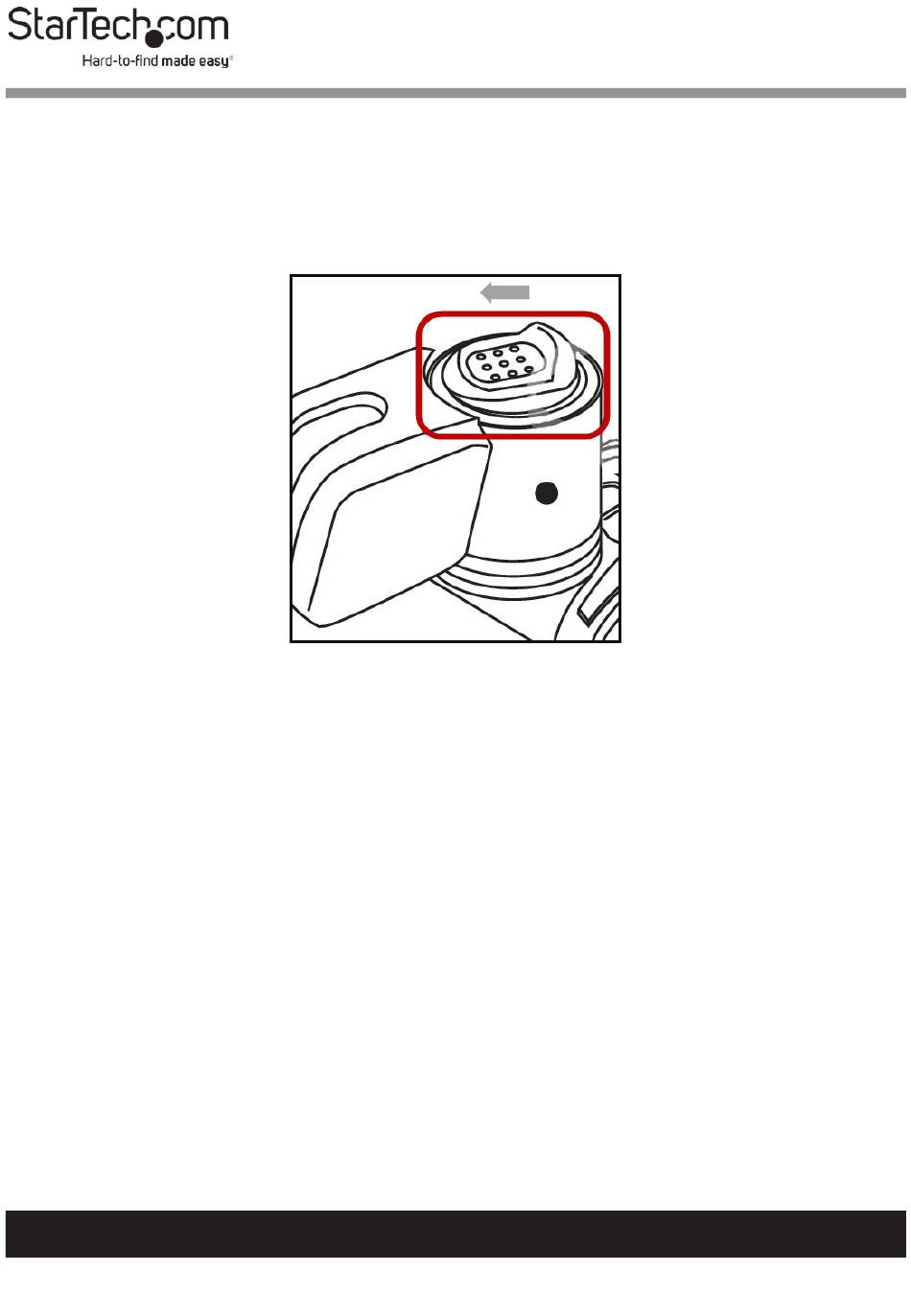

Thumb Clip
