5-5.

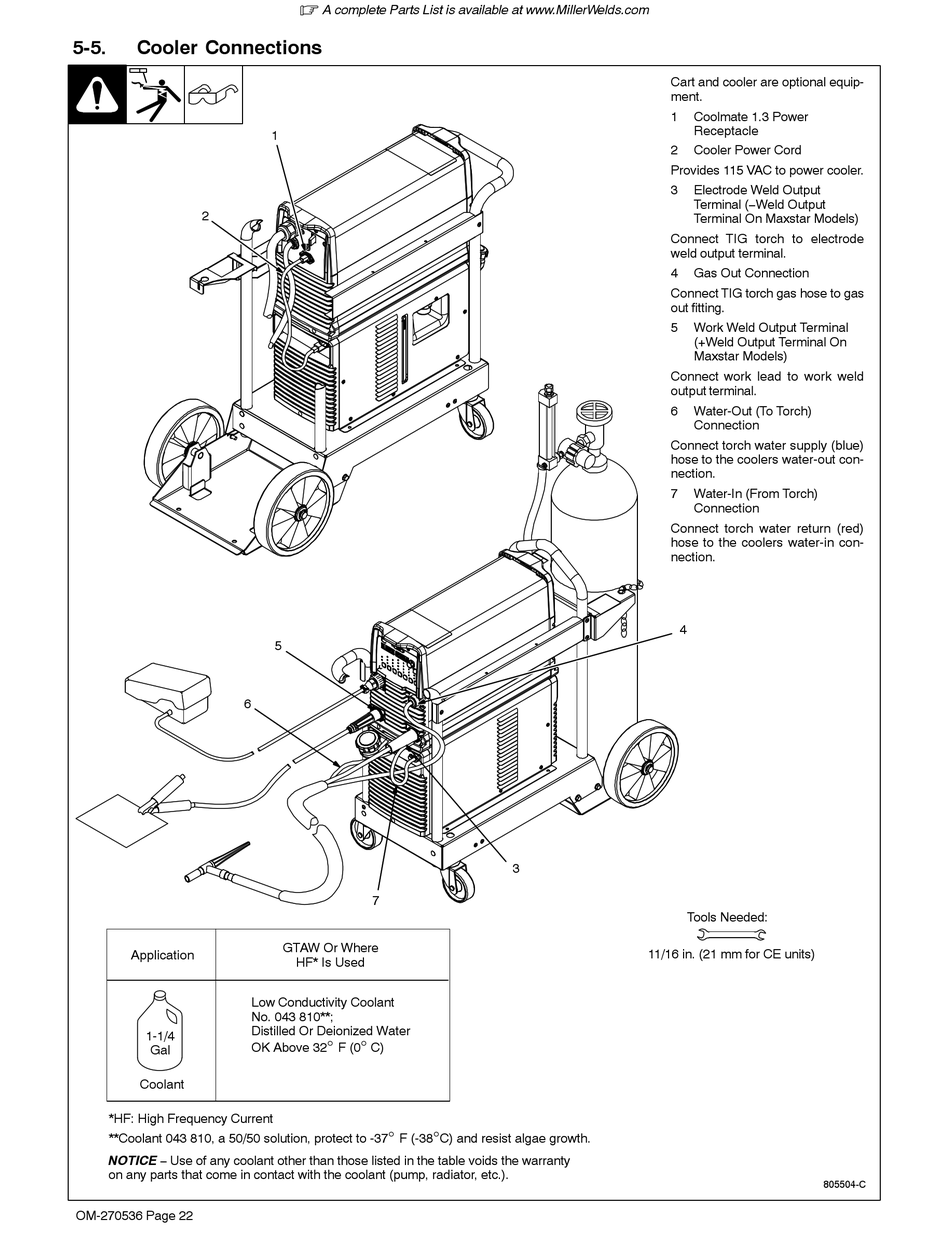

Cooler Connections

2
6
Application
Low Conductivity Coolant
No. 043 810**;
Distilled Or Deionized Water
1-1/4
OK Above 32
Gal
Coolant
*HF: High Frequency Current
**Coolant 043 810, a 50/50 solution, protect to -37
NOTICE − Use of any coolant other than those listed in the table voids the warranty
on any parts that come in contact with the coolant (pump, radiator, etc.).
OM-270536 Page 22
.
A complete Parts List is available at www.MillerWelds.com
1
5
7
GTAW Or Where
HF* Is Used
° °
F (0 C)
° °
F (-38 C) and resist algae growth.
Cart and cooler are optional equip-
ment.
1
2
Provides 115 VAC to power cooler.
3
Connect TIG torch to electrode
weld output terminal.
4
Connect TIG torch gas hose to gas
out fitting.
5
Connect work lead to work weld
output terminal.
6
Connect torch water supply (blue)
hose to the coolers water-out con-
nection.
7
Connect torch water return (red)
hose to the coolers water-in con-
nection.
4
3
Tools Needed:
11/16 in. (21 mm for CE units)
Coolmate 1.3 Power
Receptacle
Cooler Power Cord
Electrode Weld Output
Terminal (−Weld Output
Terminal On Maxstar Models)
Gas Out Connection
Work Weld Output Terminal
(+Weld Output Terminal On
Maxstar Models)
Water-Out (To Torch)
Connection
Water-In (From Torch)
Connection
805504-C
