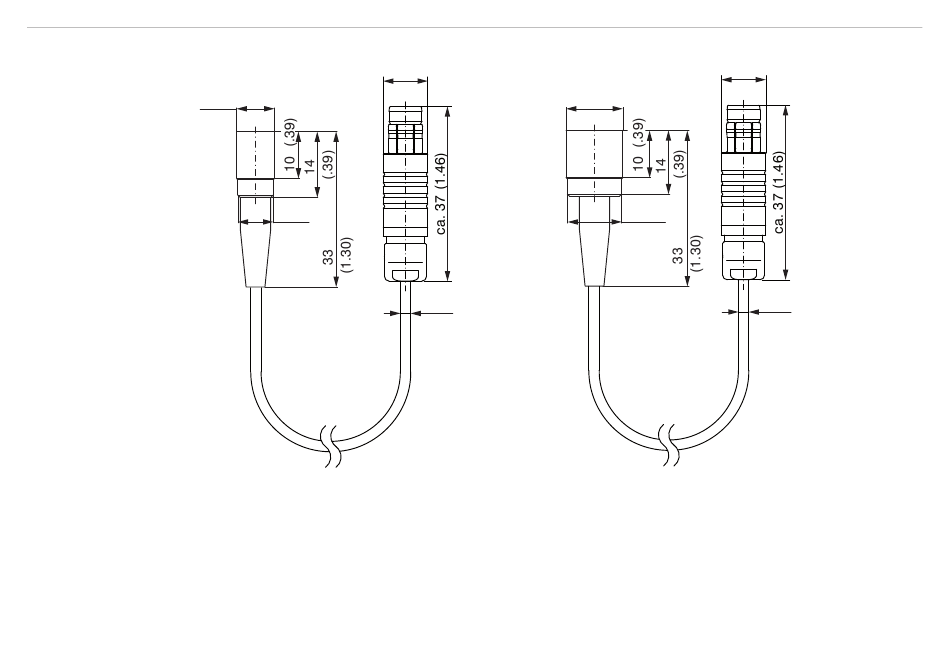

Installation and Assembly
CSH02-CAmx,
CSH05-CAmx
ø8g6 (.315 dia.)
Dimensions in mm (inches), not to scale
capaNCDT 6200
appr. 9.4 (.37)
ø7.5
(.30 dia.)
ø2.2 (.09 dia.)
CSH1-CAmx,
appr. 9.4 (.37)
CSH1.2-CAmx
ø12g6 (.473 dia.)
ø11.5
(.45 dia.)
ø2.2 (.09 dia.)
Page 25
