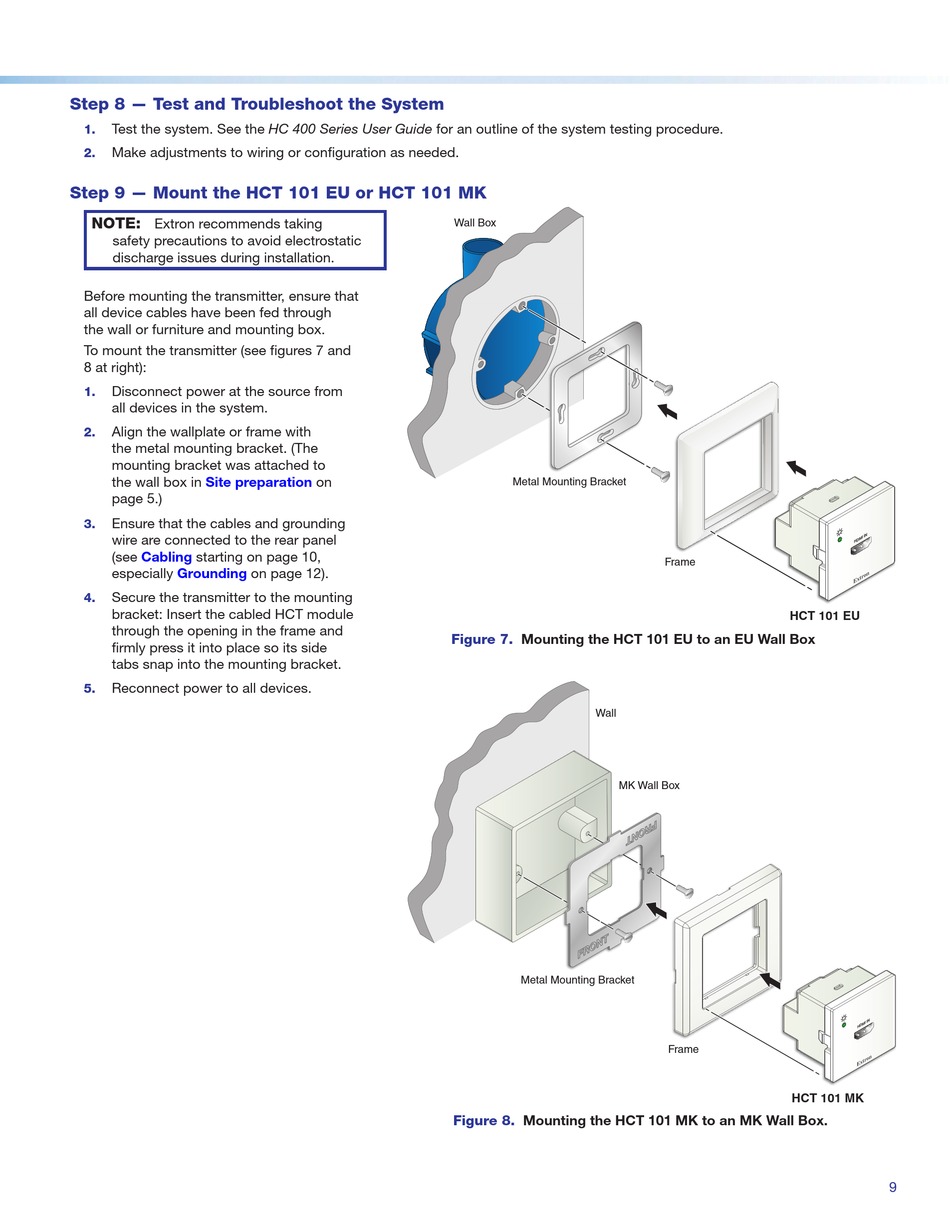

Extron electronics HC 402 EU Setup Manual page 9

Step 8 — Test and Troubleshoot the System
Test the system. See the HC 400 Series User Guide for an outline of the system testing procedure.
1.
Make adjustments to wiring or configuration as needed.
2.
Step 9 — Mount the HCT 101 EU or HCT 101 MK
NOTE:
Extron recommends taking
safety precautions to avoid electrostatic
discharge issues during installation.
Before mounting the transmitter, ensure that
all device cables have been fed through
the wall or furniture and mounting box.
To mount the transmitter (see figures 7 and
8 at right):
Disconnect power at the source from
1.
all devices in the system.
Align the wallplate or frame with
2.
the metal mounting bracket. (The
mounting bracket was attached to
the wall box in Site preparation
page 5.)
Ensure that the cables and grounding
3.
wire are connected to the rear panel
(see Cabling starting on page 10,
especially Grounding
Secure the transmitter to the mounting
4.
bracket: Insert the cabled HCT module
through the opening in the frame and
firmly press it into place so its side
tabs snap into the mounting bracket.
Reconnect power to all devices.
5.
on
on page 12).
Wall Box
Metal Mounting Bracket
Mounting the HCT 101 EU to an EU Wall Box
Figure 7.
Wall
MK Wall Box
Metal Mounting Bracket
Figure 8. Mounting the HCT 101 MK to an MK Wall Box.
Frame
HCT 101 EU
Frame
HCT 101 MK
I N
M I
H D
e
I N
M I
H D
e
9
