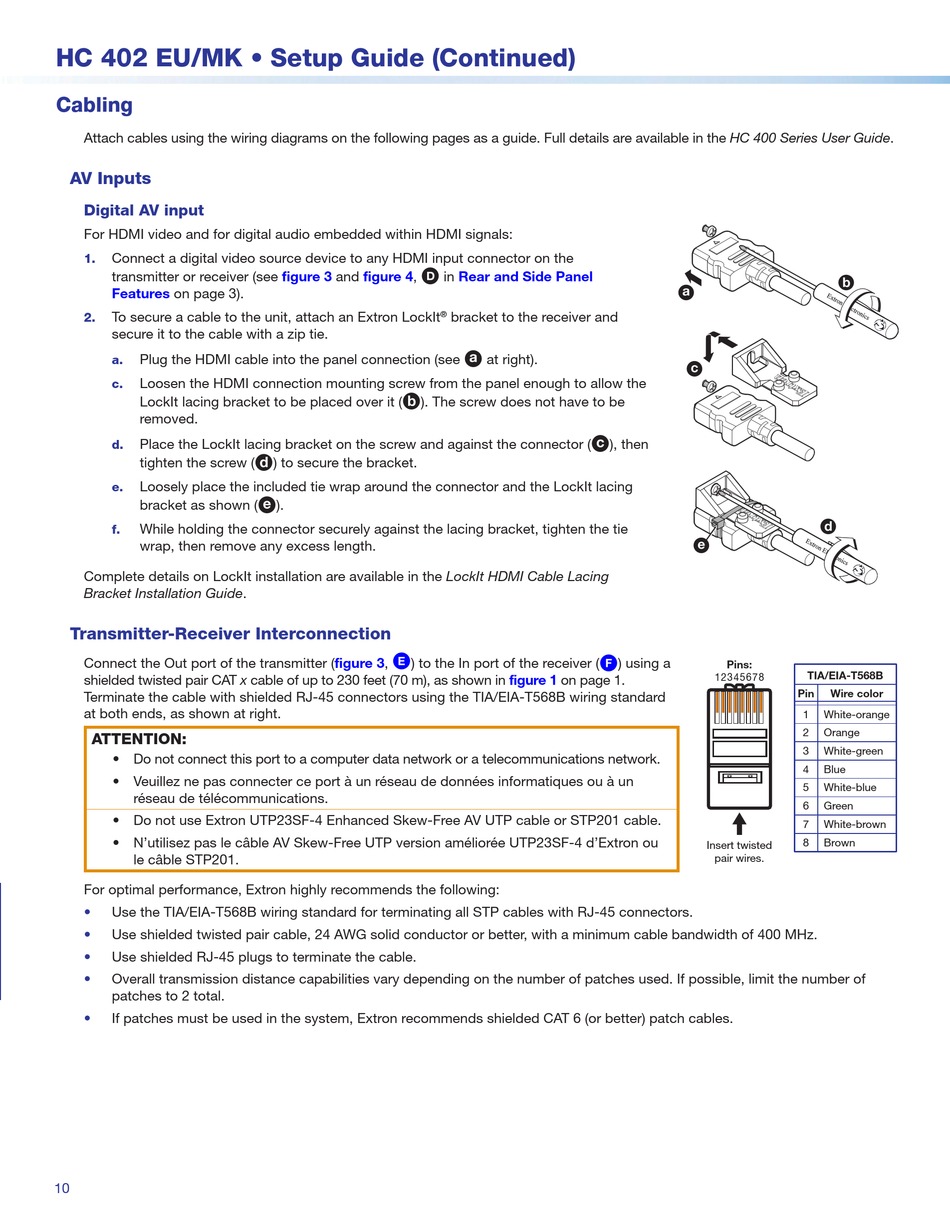

HC 402 EU/MK • Setup Guide (Continued)
Cabling
Attach cables using the wiring diagrams on the following pages as a guide. Full details are available in the HC 400 Series User Guide.
AV Inputs
Digital AV input
For HDMI video and for digital audio embedded within HDMI signals:
Connect a digital video source device to any HDMI input connector on the
1.
transmitter or receiver (see
Features
on page 3).
To secure a cable to the unit, attach an Extron LockIt
2.
secure it to the cable with a zip tie.
Plug the HDMI cable into the panel connection (see
a.
Loosen the HDMI connection mounting screw from the panel enough to allow the
c.
LockIt lacing bracket to be placed over it (
removed.
Place the LockIt lacing bracket on the screw and against the connector (
d.
tighten the screw (
Loosely place the included tie wrap around the connector and the LockIt lacing
e.
bracket as shown (
While holding the connector securely against the lacing bracket, tighten the tie
f.
wrap, then remove any excess length.
Complete details on LockIt installation are available in the LockIt HDMI Cable Lacing
Bracket Installation Guide.
Transmitter-Receiver Interconnection
Connect the Out port of the transmitter
shielded twisted pair CAT x cable of up to 230 feet (70 m), as shown in
Terminate the cable with shielded RJ-45 connectors using the TIA/EIA-T568B wiring standard
at both ends, as shown at right.
ATTENTION:
• Do not connect this port to a computer data network or a telecommunications network.
• Veuillez ne pas connecter ce port à un réseau de données informatiques ou à un
réseau de télécommunications.
• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable.
• N'utilisez pas le câble AV Skew-Free UTP version améliorée UTP23SF-4 d'Extron ou
le câble STP201.
For optimal performance, Extron highly recommends the following:
• Use the TIA/EIA-T568B wiring standard for terminating all STP cables with RJ-45 connectors.
• Use shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum cable bandwidth of 400 MHz.
• Use shielded RJ-45 plugs to terminate the cable.
• Overall transmission distance capabilities vary depending on the number of patches used. If possible, limit the number of
patches to 2 total.
• If patches must be used in the system, Extron recommends shielded CAT 6 (or better) patch cables.
10
D
figure 3 and figure 4,
b ). The screw does not have to be
d ) to secure the bracket.
e
).
E
3,
(figure ) to the In port of the receiver (
in Rear and Side Panel
bracket to the receiver and
®
a
at right).
c
), then
F
) using a
figure 1 on page 1.
b
a
c
3
d
e
Pins:
TIA/EIA-T568B
12345678
Pin Wire color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Insert twisted
pair wires.
