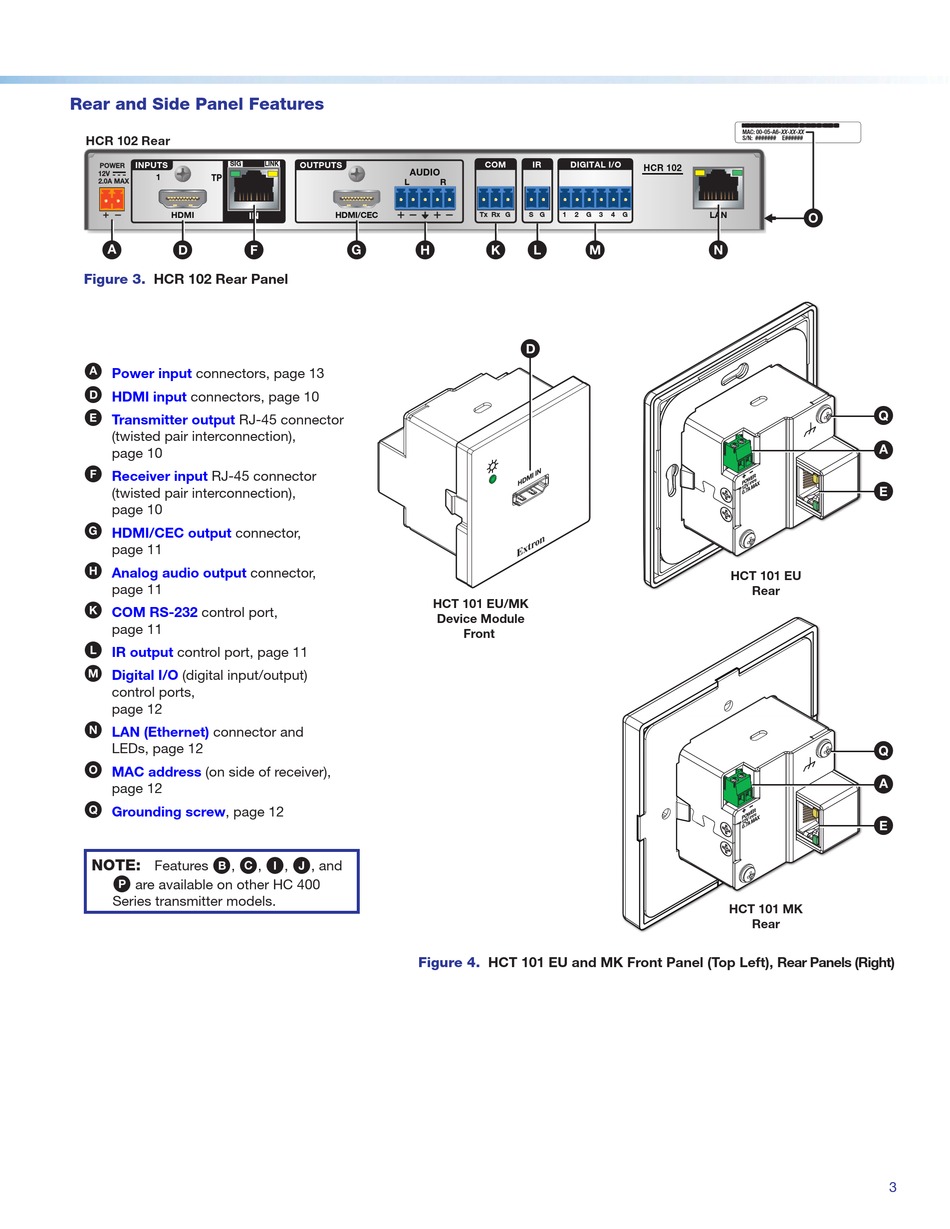

Rear and Side Panel Features
HCR 102 Rear
INPUTS SIG
POWER
12V
1 TP
2.0A MAX
HDMI IN
A D F
Figure 3. HCR 102 Rear Panel
A
Power input connectors, page 13
D
HDMI input connectors, page 10
E
Transmitter output RJ-45 connector
(twisted pair interconnection),
page 10
F
Receiver input
RJ-45 connector
(twisted pair interconnection),
page 10
G
HDMI/CEC output connector,
page 11
H
Analog audio output
page 11
K
COM RS-232 control port,
page 11
L
IR output
control port, page 11
M
Digital I/O
(digital input/output)
control ports,
page 12
N
LAN (Ethernet) connector and
LEDs, page 12
O
MAC address (on side of receiver),
page 12
Q
Grounding screw, page 12
NOTE:
Features B , C
P
are available on other HC 400
Series transmitter models.
LINK OUTPUTS
AUDIO
L
HDMI/CEC
G H
connector,
, I , J , and
Figure 4.
COM IR DIGITAL I/O
R
Tx Rx G S G 1 2 G 3 4
K L M
D
I N
M I
H D
e
HCT 101 EU/MK
Device Module
Front
HCT 101 EU and MK Front Panel (Top Left), Rear Panels (Right)
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
HCR 102
LAN
G
N
R
W E
P O
X
1 2 V A M A
0 . 7
HCT 101 EU
Rear
R
W E
P O
X
1 2 V A M A
0 . 7
HCT 101 MK
Rear
O
Q
A
E
Q
A
E
3
