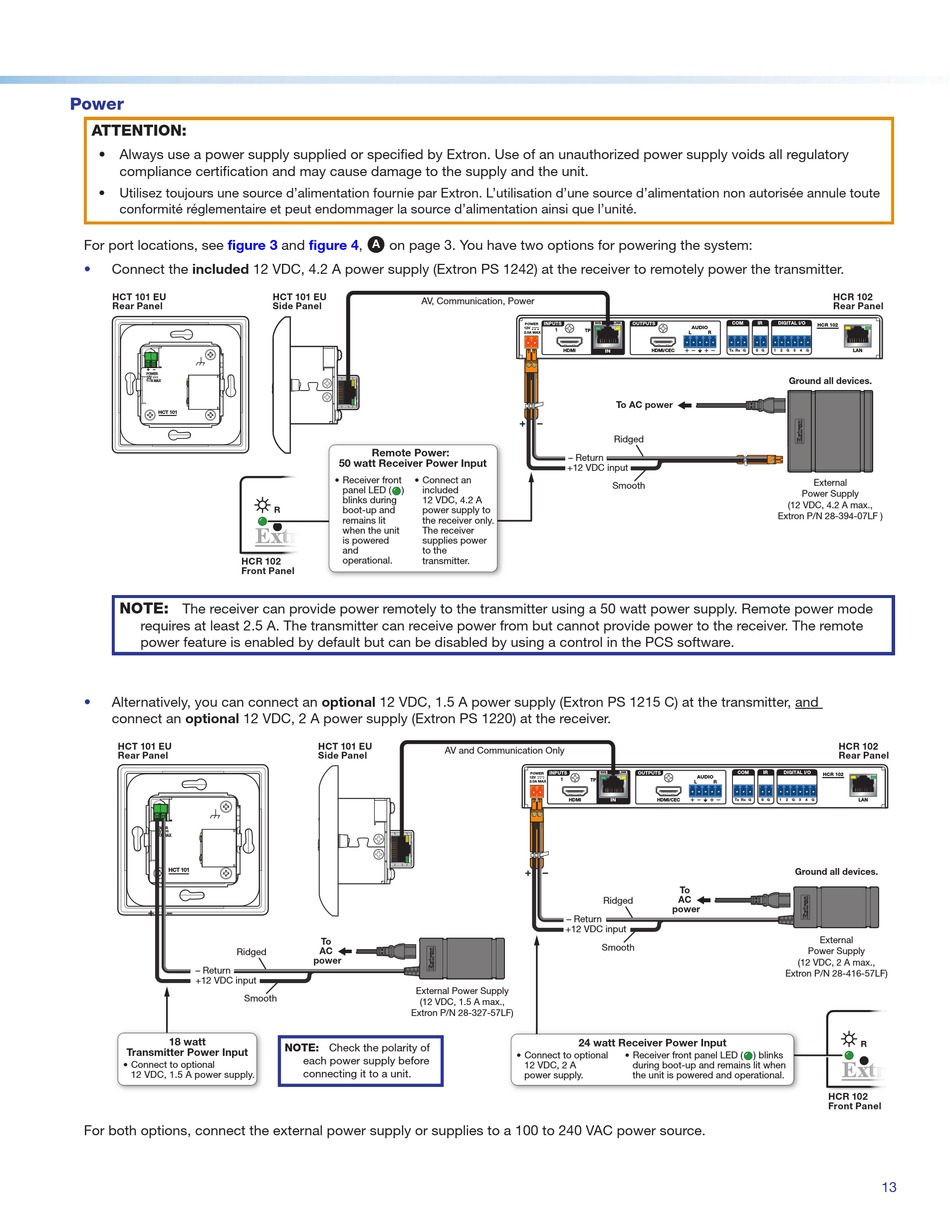

Power
ATTENTION:
• Always use a power supply supplied or specified by Extron. Use of an unauthorized power supply voids all regulatory
compliance certification and may cause damage to the supply and the unit.
• Utilisez toujours une source d'alimentation fournie par Extron. L'utilisation d'une source d'alimentation non autorisée annule toute
conformité réglementaire et peut endommager la source d'alimentation ainsi que l'unité.
figure 3
For port locations, see
• Connect the included 12 VDC, 4.2 A power supply (Extron PS 1242) at the receiver to remotely power the transmitter.
HCT 101 EU
Rear Panel
POWER
12V
0.7 A MAX
HCT 101
HCR 102
Front Panel
NOTE:
The receiver can provide power remotely to the transmitter using a 50 watt power supply. Remote power mode
requires at least 2.5 A. The transmitter can receive power from but cannot provide power to the receiver. The remote
power feature is enabled by default but can be disabled by using a control in the PCS software.
• Alternatively, you can connect an optional 12 VDC, 1.5 A power supply (Extron PS 1215 C) at the transmitter, and
connect an optional 12 VDC, 2 A power supply (Extron PS 1220) at the receiver.
HCT 101 EU
Rear Panel
POWER
12V
0.7
A MAX
HCT 101
Ridged
– Return
+12 VDC input
Smooth
18 watt
Transmitter Power Input
• Connect to optional
12 VDC, 1.5 A power supply.
For both options, connect the external power supply or supplies to a 100 to 240 VAC power source.
figure 4, A
and on page 3. You have two options for powering the system:
HCT 101 EU
AV, Communication, Power
Side Panel
Remote Power:
50 watt Receiver Power Input
• Receiver front • Connect an
panel LED ( ) included
blinks during 12 VDC, 4.2 A
R boot-up and power supply to
remains lit the receiver only.
when the unit The receiver
is powered supplies power
and to the
operational. transmitter.
HCT 101 EU
AV and Communication Only
Side Panel
To
AC
power
External Power Supply
(12 VDC, 1.5 A max.,
Extron P/N 28-327-57LF)
NOTE: Check the polarity of
each power supply before
connecting it to a unit.
POWER INPUTS SIG LINK OUTPUTS
AUDIO
12V
1 TP
2.0A MAX L
HDMI HDMI/CEC
IN
To AC power
Ridged
– Return
+12 VDC input
Smooth
INPUTS SIG LINK OUTPUTS
POWER
12V
1 TP
2.0A MAX L
HDMI IN HDMI/CEC
To
AC
Ridged
power
– Return
+12 VDC input
Smooth
24 watt Receiver Power Input
• Connect to optional • Receiver front panel LED (
12 VDC, 2 A during boot-up and remains lit when
power supply. the unit is powered and operational.
HCR 102
Rear Panel
COM IR DIGITAL I/O
HCR 102
R
LAN
Tx Rx G S G 1 2 G 3 4 G
Ground all devices.
External
Power Supply
(12 VDC, 4.2 A max.,
Extron P/N 28-394-07LF )
HCR 102
Rear Panel
COM IR DIGITAL I/O
HCR 102
AUDIO
R
Tx Rx G S G 1 2 G 3 4 G LAN
Ground all devices.
External
Power Supply
(12 VDC, 2 A max.,
Extron P/N 28-416-57LF)
R
) blinks
HCR 102
Front Panel
13
