Z8 GP™ ZGP323 Programming System
User Manual
Page 10
8. If the appropriate target device is not selected, set it now in the Device drop-down
menu.
9. In the Hex File: section, click the
into the OTP chip.
10. Set the remaining OTP programming parameters as necessary for your application.
11. Click the
12. Click the
and selected options.
Hex File Burning Instructions for Experienced ZDS II Users
Downloaded from Elcodis.com electronic components distributor

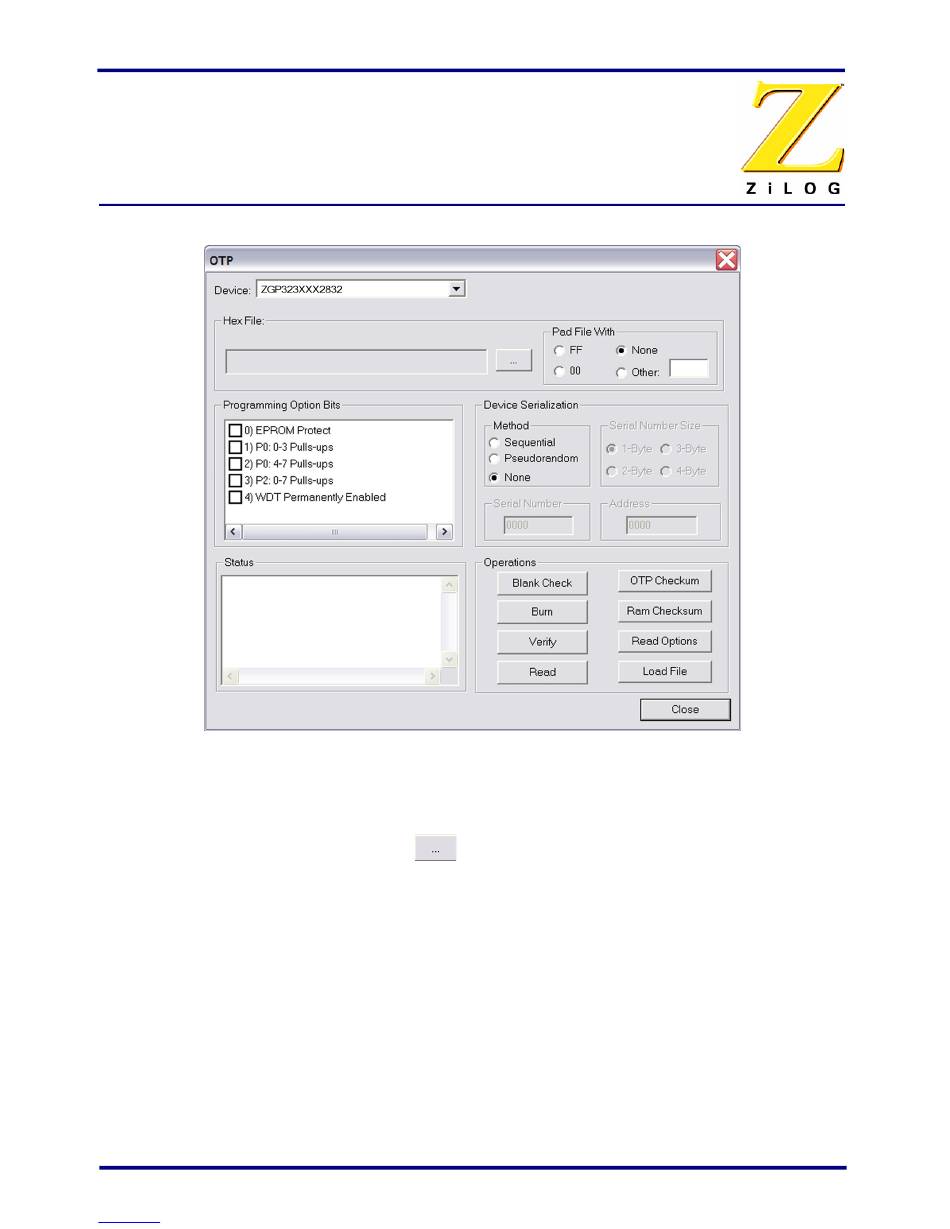

Figure 4. OTP Programming Window (Hex File Example)
button to load the hex file.
Load File
button to program the OTP chip with the contents of programmer RAM
Burn
button and select the hex file you wish to burn
UM019101-0305
