Chapter 2: Jumpers and Connectors

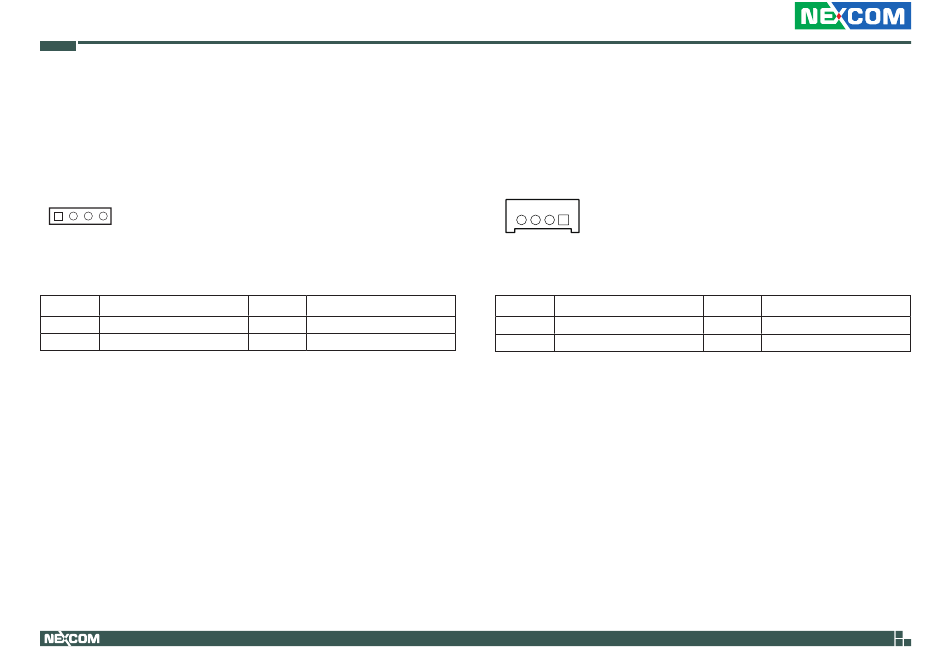

Mic-in Pin Header

Connector type: 1x4 4-pin header, 2.0mm pitch
Connector location: JP2
1 4
Pin Definition
1 MIC_L
3 MIC_JD
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 AGND
4 MIC_R

Speaker-out Connector

Connector type: 1x4 4-pin header, 2.0mm pitch
Connector location: J3
4 1
Pin Definition
1 ROUT_P
3 LOUT_P
28
Pin Definition
2 ROUT_N
4 LOUT_N
