User Manual Modbus Slave / Modbus TCP Master
Document code: MN67510_ENG
Revision 2.100
Page 5 of 38
Industrial Electronic Devices
CONNECTION SCHEME:

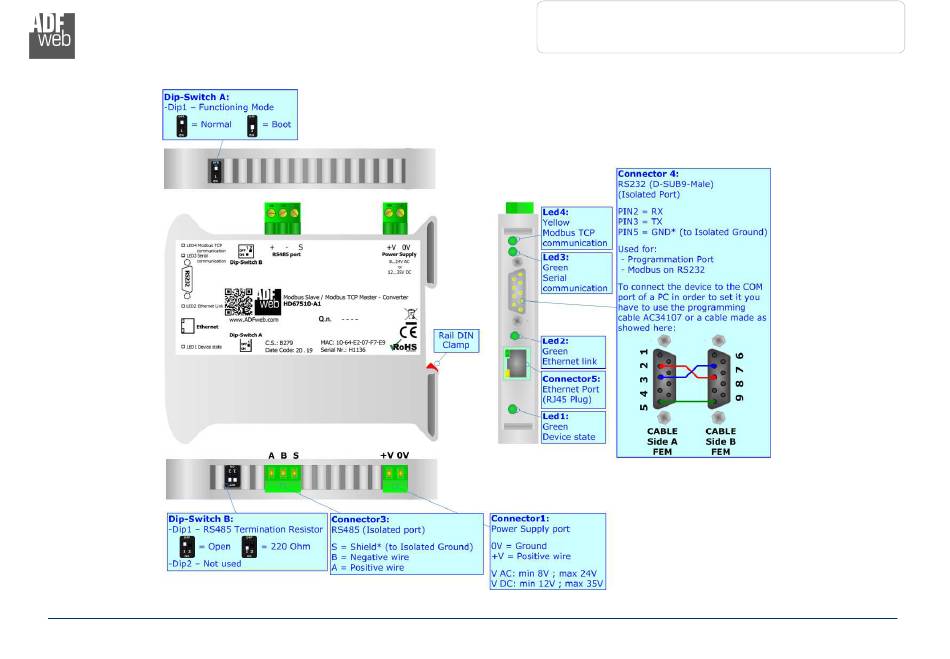

Figure 1a: Connection scheme for HD67510-A1
