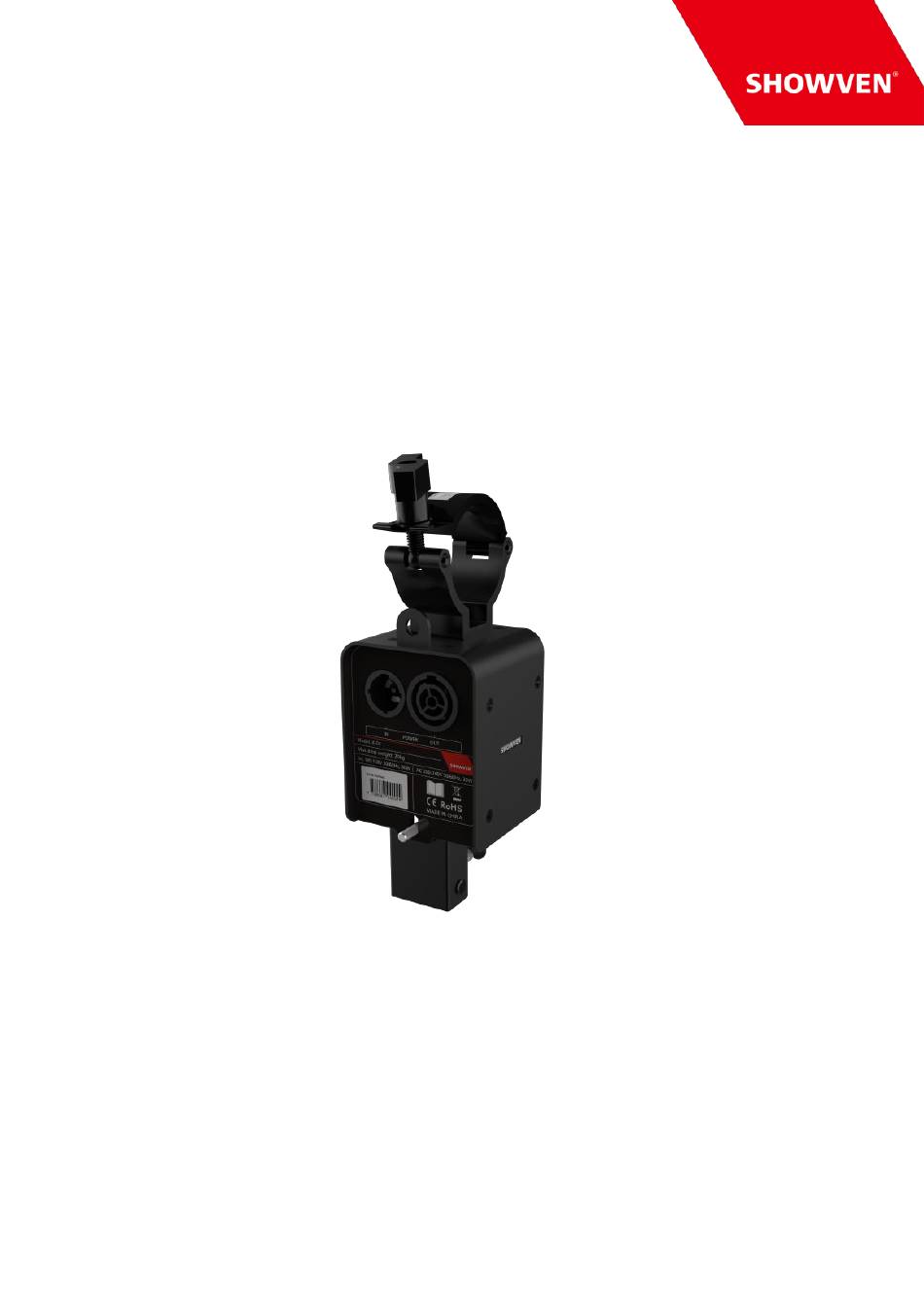

- Page 1 USER MANUAL KABUKI DROP V1.0 2024/10/01 SHOWVEN Technologies Co., Ltd.
- Page 2 Description and features Δ SHOWVEN KABUKI DROP is a compact and exquisite designed reliable device for drops of curtains, open up balloons, unroll of banners or any other objects on stages. It is a direct on-off system with 20kg loading capacity.
- Page 3 Product Overview Δ 1. Clamp 2. Safety Loop 3. Neutrik PowerCON TRUE1 TOP IN/OUT 4. Reset Rod 5. Power Indicator 6. Drop Hook Operation Δ 1. Installation 1) Check the machine and accessories, ensure it is in good status. Hanging the drop units vertically on a horizontal installed truss.
- Page 4 2. Connect KABUKI DROP with PowerCON TRUE1 TOP 1) Connect the first unit of KABUKI DROP with Power cable. 2) Connect the next KABUKI DROP with PowerCON TRUE1 TOP Link Cable as show below. 3) Never cascade connect more than 25 units of KABUKI DROPs to a standard 16A power cable.
- Page 5 5. SAFETY Always use a qualified safety cable to attaching the KABUKI DROP to truss for extra safety whenever use the KABUKI DROP. 6. DROP it! Once you have hung up the cloth or objects your KABUKI DROPs are ready for use. Activate the DROPs by supply the system with rated power.
- Page 6 Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. ® Invoice is necessary when applying for maintenance service from SHOWVEN...
- Page 8 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
