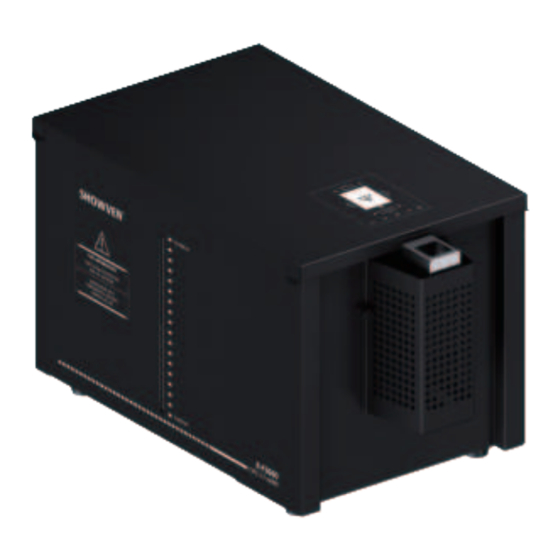

Showven X-F3600 User Manual

Circle flamer
Hide thumbs Also See for X-F3600:

Advertisement

Quick Links

Download this manual

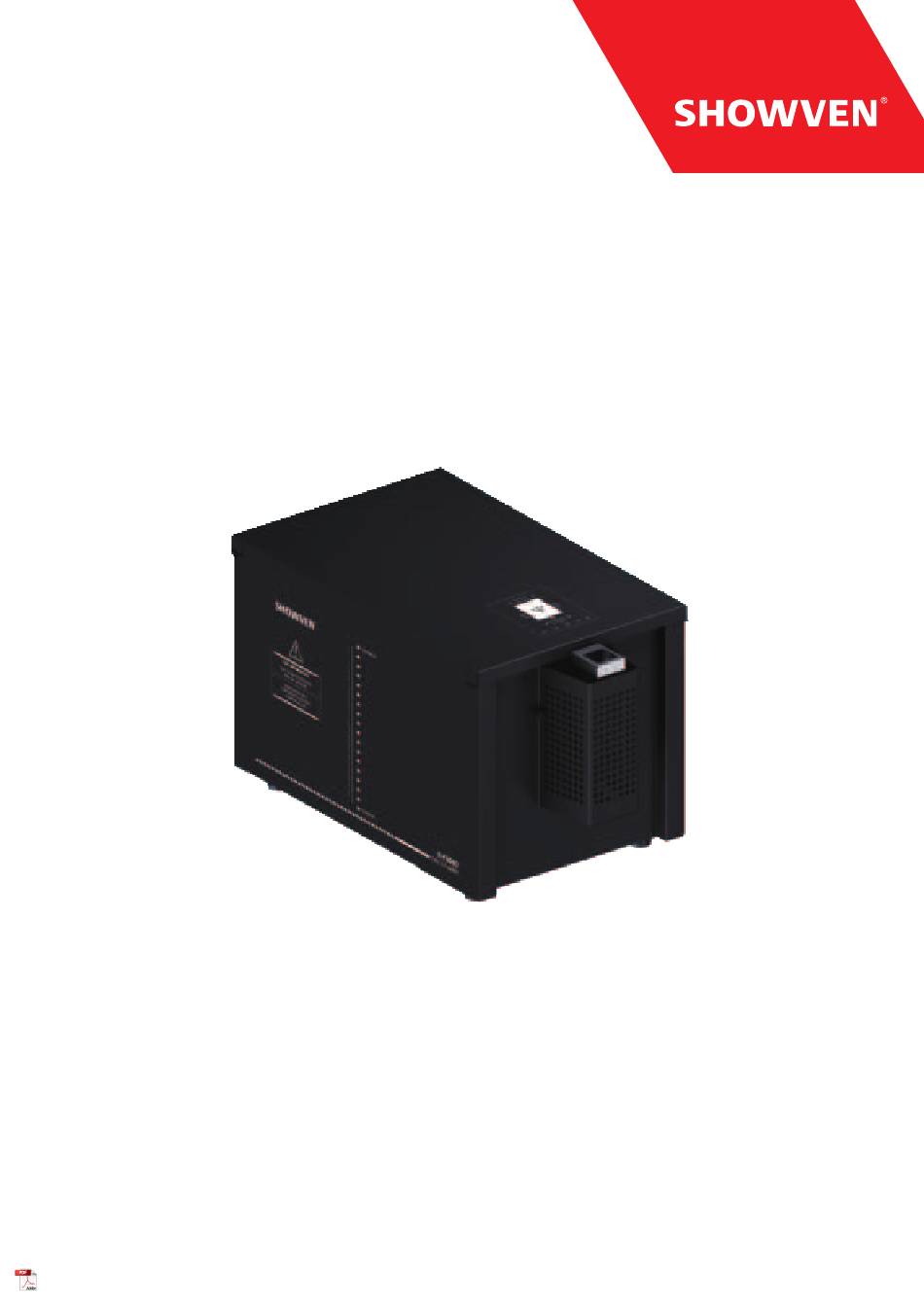

USER MANUAL
CIRCLE FLAMER X-F3600
V1.2
Showven Technologies Co.,Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-F3600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Showven X-F3600

Summary of Contents for Showven X-F3600

  • Page 1 USER MANUAL CIRCLE FLAMER X-F3600 V1.2 Showven Technologies Co.,Ltd.
  • Page 2 The Nozzle Protection Cover is only used during the transportation. • The firing nozzle of X-F3600 is strictly forbidden to rotate over ±90° manually in case of power-off, otherwise the rotating mechanism of the equipment will be damaged.

  • Page 3: Functional Characteristics

    Disclaimers: SHOWVEN technologies Co., Ltd excludes liability for unsafe situations, accidents and damages resulting from: 1. Ignoring warnings or regulations as shown on circle flamer or this manual. 2. Use for other applications or circumstances other than those indicated herein.

  • Page 4: Overview Of Control Panel

    ▲Structure of Circle Flamer 1. Nozzle Protection Cover 2. Firing Nozzle 3. Top Panel 4. Fuel Bottle Area 5. Control Panel 6. Safety Loop • Connection dimension diagram of bottom bracket of the flamer 179.5 ▲Overview of Control Panel 1. LCD screen operate panel 2.

  • Page 5: Operation Panel

    ▲Operation Panel 1. LED Display Area RX: Radio receiving (reserved); DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal; ERR: Light on when there is an error; PUMP: Light on when pump is running. 2. Button Funtions: MENU: Switch interface to setup parameter;...
  • Page 6 5. Alert Message Alert Message Explanation E0 System Lock Safety lock located at TEST MODE. Pressuriser for about 13s, pressure value failed to reach 100%, system will report E1. E1 Pressure Err Possible fault: No fuel, pump failure, pipeline problem etc. Pipeline can't release pressure leads to pressure relief error.
  • Page 7 7. Advanced Interface Press “MENU” 3s enter advanced interface, press “MENU” to switch interface, press “MENU” 3s can back to main interface. Items Contents Description OFF / Motor/ Pump / Igniter / Relief Valve / Jet Valve 1. Motor Swiveling and stop at target angle. Pump running 1s, if pressure reached the Drive Test 2.
  • Page 8 (1) 1 to 15 is the firing angle when Circle flamer running in half cycle mode. (2) AMGS is the firing direction when running in full cycle mode, A is downward, M is upward, G is left side, S is right side. For more detail please refer to angle definition in under full cycle mode.
  • Page 9 CIRCLE FLAMER occupy 6 channels. Set DMX Address Detail information please refer to the table of 6. Set DMX address page18. Host controller: Press”pre-heat” button (light on). 7. Pressuriser DMX console: switch DMX value of channel 6 to 50-200. Reconfirm safety lock located at TEST MODE before test.
  • Page 10 14. Switch safety lock Guarantee safety use for next time. to TEST MODE Power off CIRCLE FLAMER, tear down power cable 15. Power off and DMX cable, pack up the device when it is cooled down. 3. Full Cycle Mode (1)Angle definitions CIRCLE FLAMER with 360°...
  • Page 11 (2)Drive time Neighbouring injection angles take 20 ms to reach. For example, the nozzle drive from A1 to B1, it takes 20ms. when opera- tor design a show to synchronize to music, this drive time must be calculated. The following table shows the time of the nozzle reaching the required angle from NO.A1: Angles Drive time needed NO.A1...
  • Page 12 (3)Sequence list Circle Flamer X-F3600 with more than 160 kind of preset firing sequences, 94 kind of firing sequences under full cycle mode. Operator use related channel DMX value or sequence No. to access certain sequence. Sequence list as below:...
  • Page 13 Single ignition LONG flame Static 0.34s 97-99 Single ignition LONG flame Static 0.34s 100-101 Single ignition LONG flame Static 0.34s 102-104 Static 0.34s 105-107 Single ignition LONG flame Single ignition LONG flame Static 0.34s 106-110 Single ignition LONG flame Static 0.34s 111-112 Static...
  • Page 14 Wave Sequence List Nozzle Firing CH5 DMX Sequence Ignition angle NO. Description Movement Duration Reference Value Wave M2-->M3 Clover shape wave-1cycle Clockwise 2.37s 171-173 Wave M2-->M1 Clover shape wave-1cycle Anticlockwise 2.37s 174-175 Wave M2-->M3 Fast-1cycle Clockwise 0.83s 176-178 Wave M2-->M1 Fast-1cycle Anticlockwise 0.83s...
  • Page 15 4. Half Cycle Mode (1)Angle definitions In half cycle mode, CIRCLE FLAMER X-F3600 with firing angle of ±105°, below schematic shows firing angles from Audience Side view. ±105° divided into 15 projection directions as below: NO.8 （ 0°) (2)Drive time Time needed for the motor drive from NO.8 to relevant angle.
  • Page 16 (3)Sequence list Circle Flamer X-F3600 with more than 160 kind of preset firing sequences, 70 kind of firing sequences under half cycle mode. Operator use related channel DMX value or sequence No. to access certain sequence. Sequence list as below:...
  • Page 17 Step Sequences List Firing CH5 DMX Sequence Nozzle Ignition angle NO. Description Duration Reference Value Movement Step from 1-15 SHORT flame Step sequence Clockwise 2.04s 125-127 Step from 15-1 SHORT flame Step sequence Anticlockwise 2.04s 128-130 Step 5-8-11 SHORT flame Step sequence Clockwise 1.25s 131-132...
  • Page 18 Additional Sequences List Nozzle Firing CH5 DMX Sequence Ignition angle NO. Description Movement Duration Reference Value Step 2-14 SHORT flame Step sequence L->R 0.60s 161-163 Step 14-2 SHORT flame Step sequence R->L 0.60s 164-165 Step 2-14 LONG flame Step sequence L->R 1.38s 166-168...
  • Page 19 > Channel 1 (CH1)-Full Cycle Mode : Angle Setup Angle No. Angle DMX value 0° 15° 30° 45° 60° 75° 90° 105° 120° 135° 150° 165° 180° 195° 210° 225° 240° 255° 270° 285° 300° 315° 330° 345° 360° 375° 390°...
  • Page 20 > Channel 1 (CH1)-Half Cycle Mode : Angle Setup Angle No. Angles DMX Value -105° -90° -75° -60° -45° -30° -15° 0° 15° 30° 45° 60° 75° 90° 105° 1. The first channel controls the firing angle. It defines to which angle the nozzle of CIRCLE FLAMER move to. The angle can be chosen anywhere between -105°...
  • Page 21 > Channel 5 (CH5): Program Sequence setup The fifth Channel allows to firing a preset sequence. Three DMX values can be used for one of the programmed firing sequence from above sequence list (refer to above sequence list table). Below formula can be used to calculate firing sequence: DMX Value = 2+ Sequence No.*2.55 Firing sequence mode/related firing channel ....
  • Page 22 (CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 255, CH4 Firing duration = 100, CH6 Compression mode = 50~200) NOTE: After firing, The DMX value of CH3 must fall below 254, before an ignition can be made again. 6. Operating with SHOWVEN host controller ZK6200/ZK6300 1) Hardware description...
  • Page 23 3) Operational Panel a) Cable Connection Area AC Input: AC Power Input; CAN: CAN communication input/output; MIDI In: Midi time synchronous signal input; DMX 512: DMX signal input/output; LAN: network interface; USB: program download interface, SparkularEdit200 software port. b) Manual firing operation region c) Mode Selection Area There are 5 standard dynamic mode and 1 special effects mode.
  • Page 24 e) Edit/Control Area Set circle flamer DMX address as below: CIRCLE FLAMER No. DMX Address Note: wrong DMX address setup may leads to circle flamer out of control. Setup of Host controller: 1. Press “F3” enter host controller configuration menu, DEVICE choose “CIRCLE FLAMER” as below. 2.

  • Page 25: Maintenance

    4. In order to lubricate the pipeline and pump it is highly recommended to add 10-20ml castor oil per 10L canister. 5. Software can be upgraded with download cable from SHOWVEN. 6. Switchable power input design, switchable between 110V and 220V as show below (voltage will show on it).

  • Page 26: Warranty Instructions

    Warranty Instructions ▲Sincere thanks for your choosing Circle Flamer X-F3600, you will receive quality service from us. ▲The product warranty period is one year. If there are any quality problems within 7 days after ship ping out from our factory, we can exchange a brand new same model machine for you.
  • Page 28 Showven Technologies Co., Ltd. Add: Building B1, Changsha E Center No.18, Xiangtai Road, Liuyang Economic Development Zone, Changsha City, 410300, Hunan Province, P.R.China. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn...
